7-36
Setup Mode
The Footswitch Pages (FT SW1, FT SW2, FT SW3)
The Footswitch Pages (FT SW1, FT SW2, FT SW3)

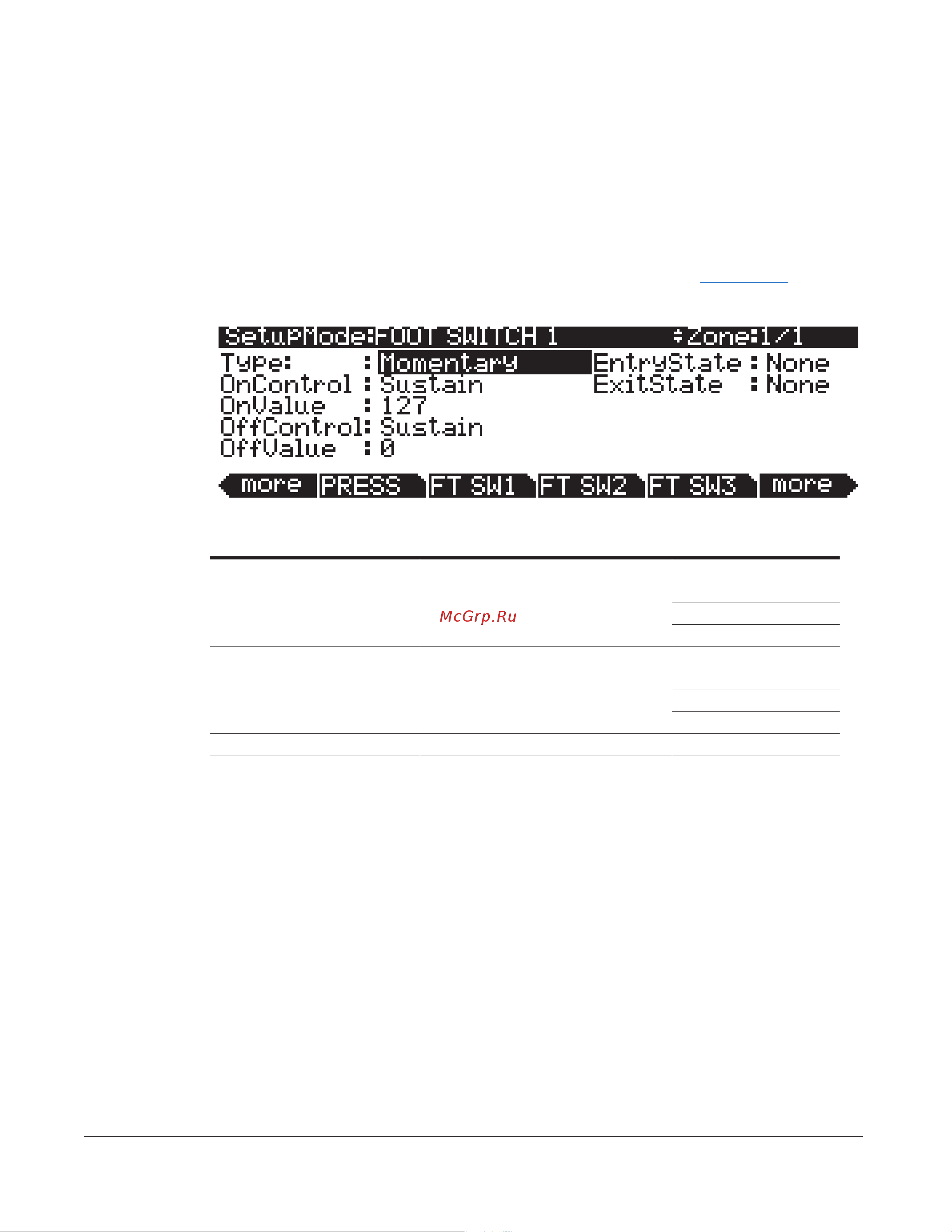

On the back of the instrument, there are three jacks for Footswitch pedals.
There are three Footswitch pages, one for each Footswitch. The range of values for their
respective Destination parameters is the Control Destination list.
The FT SW page parameters are described in Switch Controller Parameters on page 7-30.
Parameter Range of Values Default
Type Momentary, Toggle
Momentary
On Control Control Destination List
Ft Sw1: Sustain
Ft Sw2: Sostenut
Ft Sw3: Soft
On Value None, 0 to 127 127
Off Control Control Destination List
Ft Sw1: Sustain
Ft Sw2: Sostenut
Ft Sw3: Soft
Off Value None, 0 to 127 0
Entry State None, Off, On None
Exit State None, Off, On None
