12-10
Song Mode and the Song Editor
Song Mode: The MAIN Page

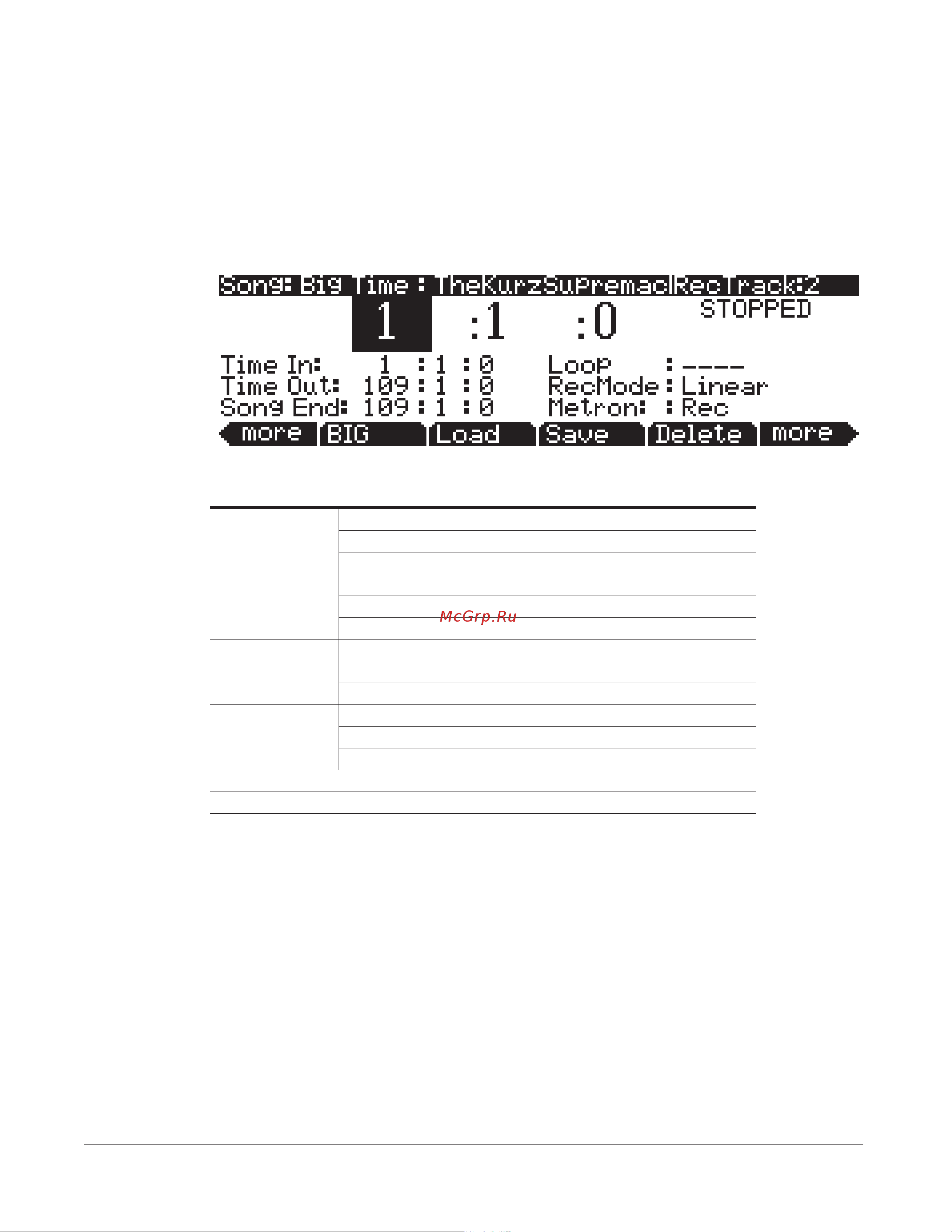

Song Mode: The BIG Page
On the BIG page, the PC3A displays—in a large font, the page’s name—the current time/location
of the “playhead” of the sequencer in a Bar : Beat : Tick format (like the Ri time/location
display). Also displayed is the current status of the sequencer, and the BIG page’s six parameters.
Parameter Range of Values Default
(Current Position)
(Bar)
(Beat) Depends on Time Signature
(Tick) 0 to 959 0
Time In
(Bar)
(Beat) 1 to 4
(Tick) 0 to 959 0
Time Out
(Bar)
(Beat) 1 to 4
(Tick) 0 to 959 0
Song End
(Bar)
(Beat) 1 to 4
(Tick) 0 to 959 0
Loop
(----), Loop (----)
RecMode
Linear, PunchIn, UnLoop Linear
Metron
Off, Rec, Always, CountOff Rec
Time In
The Time In parameter determines the start time for Loop or Punch In recording (more on this
below).
Time Out
The Time Out parameter determines the stop time for Loop or Punch In recording.
