User Interface Basics
Bank Buttons
3-3

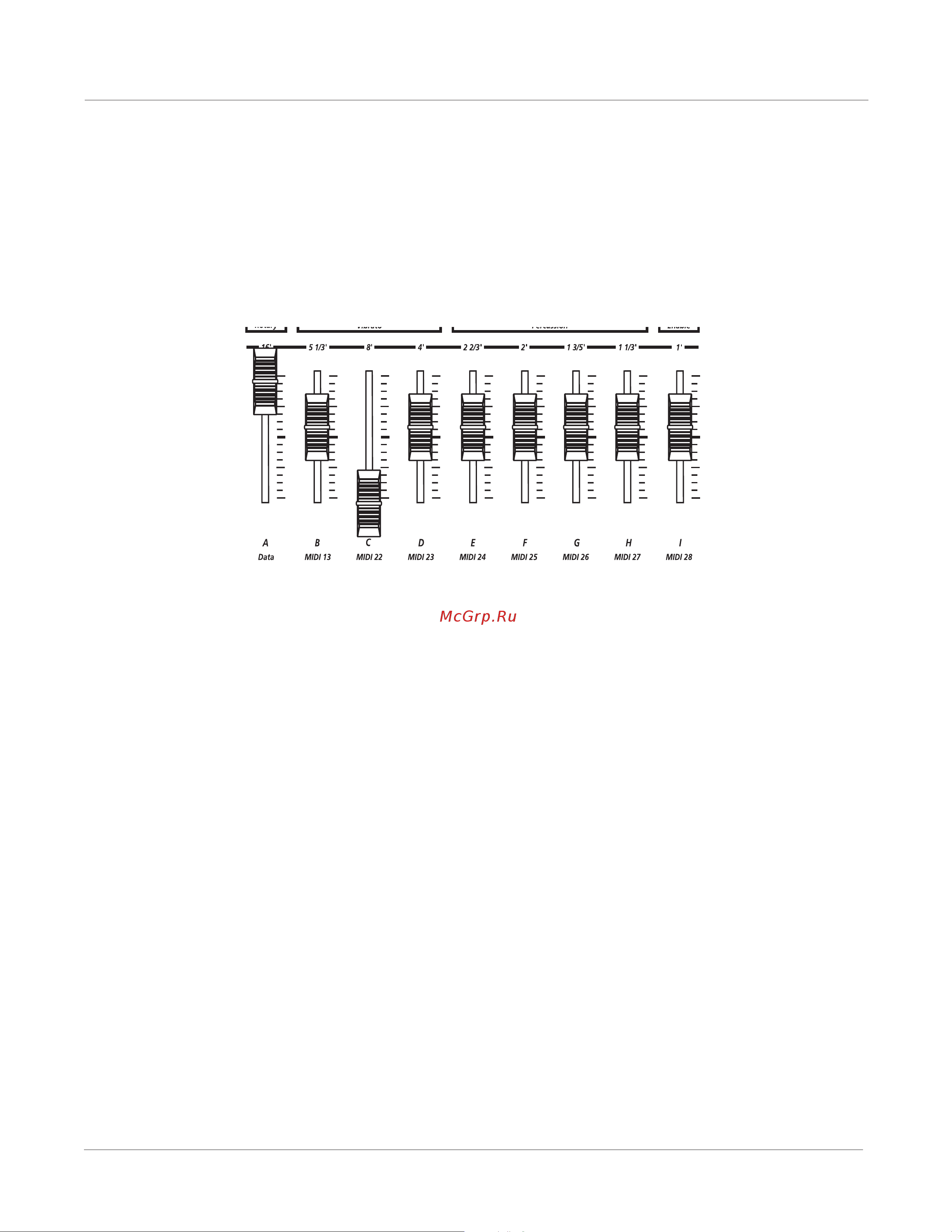

Sliders
In KB3 mode, the PC3A’s nine sliders emulate an organ’s drawbars. For example, slider A
emulates an organ’s 16’ drawbar. In other modes, the sliders can be used to send values for
dierent MIDI controllers. In either case, you may have to move the slider past the current value
for its selected function before slider movement will have any eect. Press the Info soft button on
the Program mode or Setup mode main page to see the slider assignments of the current program
or setup.
Most VAST programs use the sliders for these functions:
A Data Filter frequency, Brightness
B MIDI 13 Filter resonance, Tremolo rate control
C MIDI 22 Layer volume, Envelope control, Lo EQ
D MIDI 23 Layer volume, Envelope control, Hi EQ
E MIDI 24 Layer volume for thumps and release
F MIDI 25 FX control 1
G MIDI 26 FX distortion drive
H MIDI 27 FX distortion warmth
I MIDI 28 Reverb / delay control
Arp
SW
