Руководство по эксплуатации Страница: 10

Zoom F1-SP [10/73] Preparations

Preparations

Providing power

Using batteries

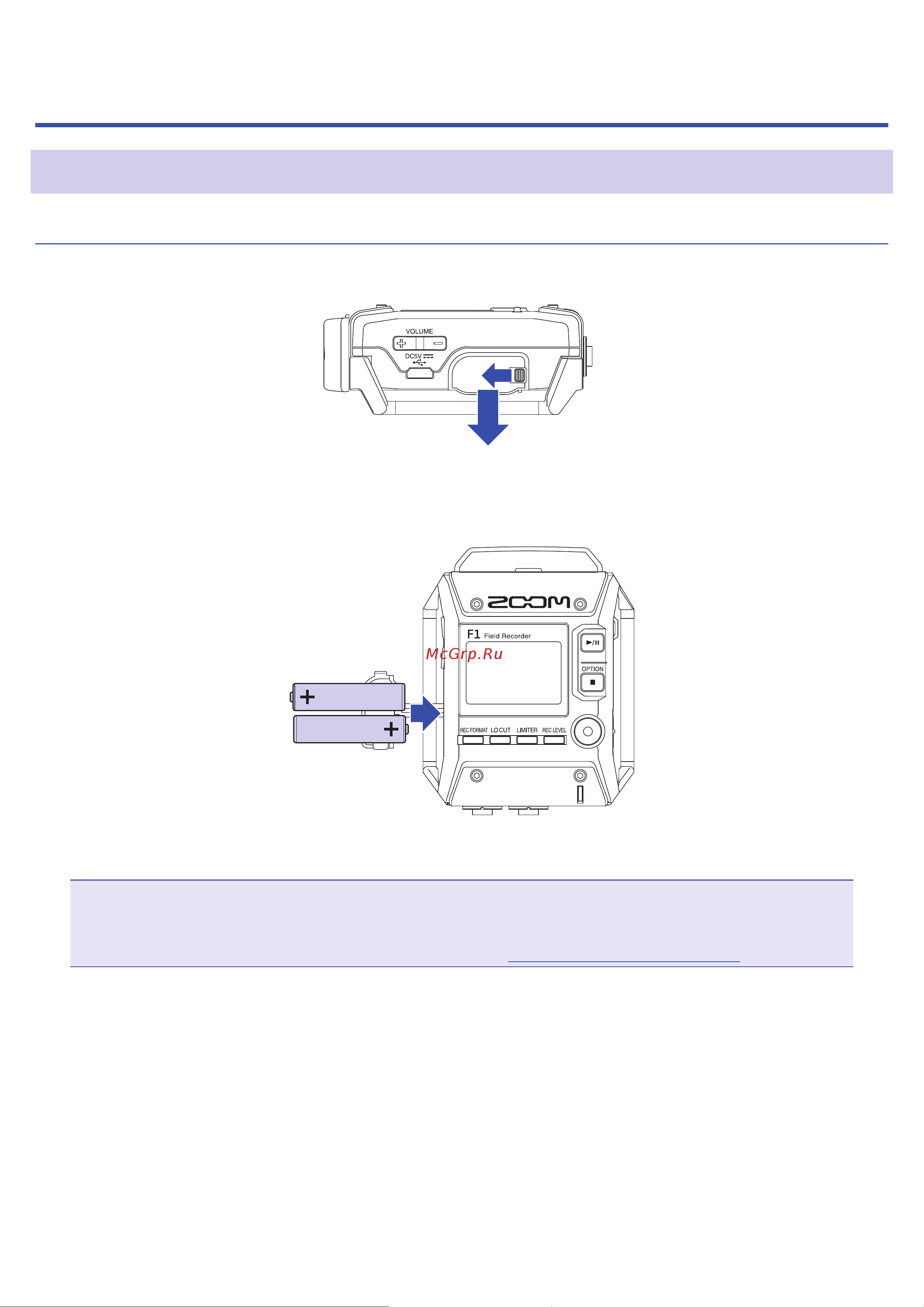

Turn the power o and then remove the battery cover.

Unlock and pull the

cover open

Install the batteries.

Replace the battery cover.

NOTE

• Use only one type of batteries (alkaline, NiMH or lithium) at a time.

• If the remaining battery power indicator drops to 0, turn the power o immediately and install new batteries.

• After installing the batteries, set the battery type correctly (

→

"Setting the type of battery used").
