Names of parts
■

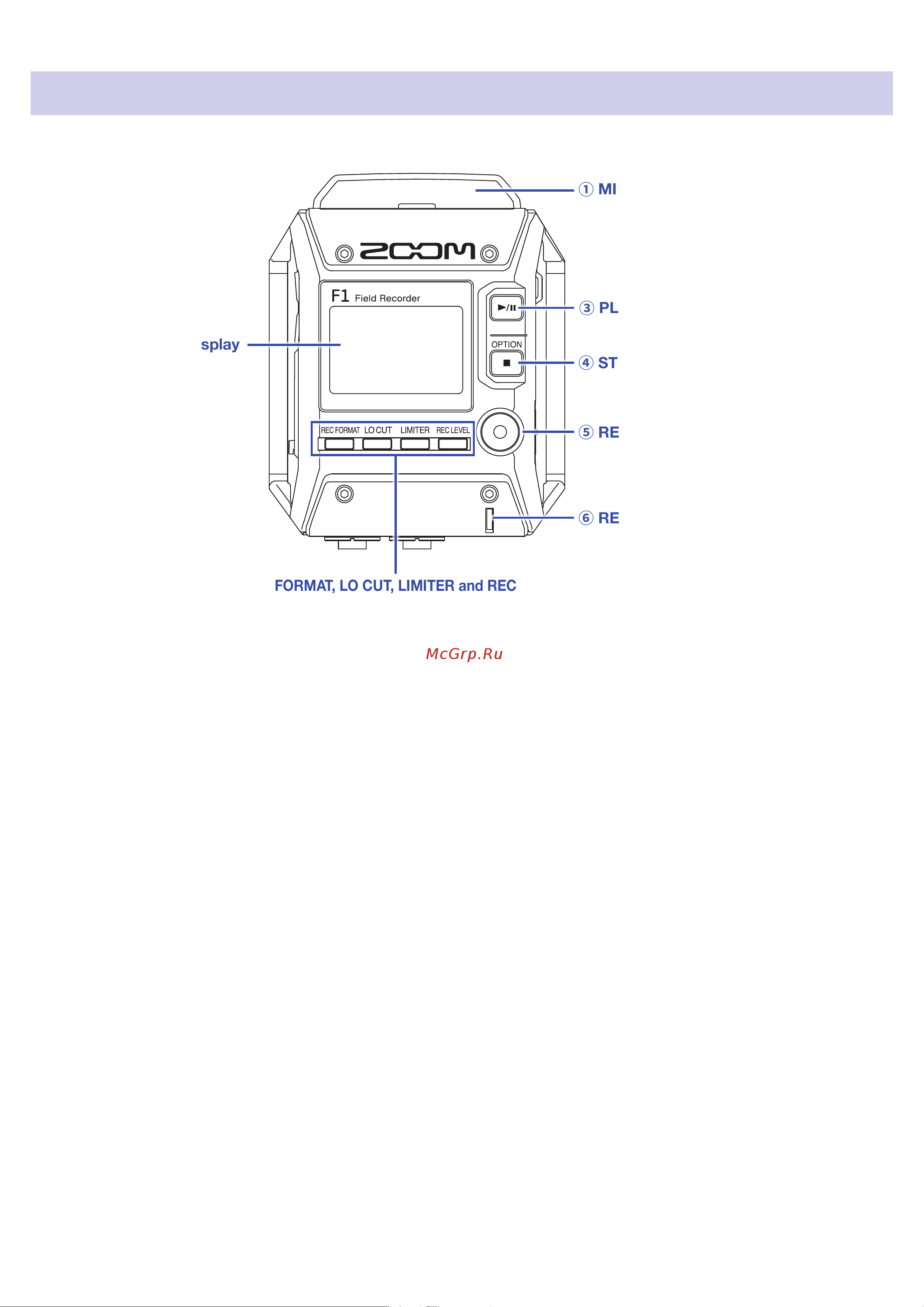

Front
②
Display
①
MIC IN connector
⑦
REC FORMAT, LO CUT, LIMITER and REC LEVEL buttons
③
PLAY/PAUSE button
④
STOP/OPTION button
⑤
REC button
⑥
REC LED
①
MIC IN connector
Connect a ZOOM mic capsule here.
②
Display
This shows various types of information.
③
PLAY/PAUSE button
Use this to start and pause playback of recorded les.
④
STOP/OPTION button
Use this to stop le recording/playback and to switch the functions of the function buttons.
⑤
REC button
Use this to start recording.
⑥
REC LED
This lights during recording. It blinks when the input sound level is high.
⑦
REC FORMAT, LO CUT, LIMITER and REC LEVEL buttons
Use these to operate the function buttons shown at the bottom of the display.
