Zoom F1-SP [7/73] Bottom

■

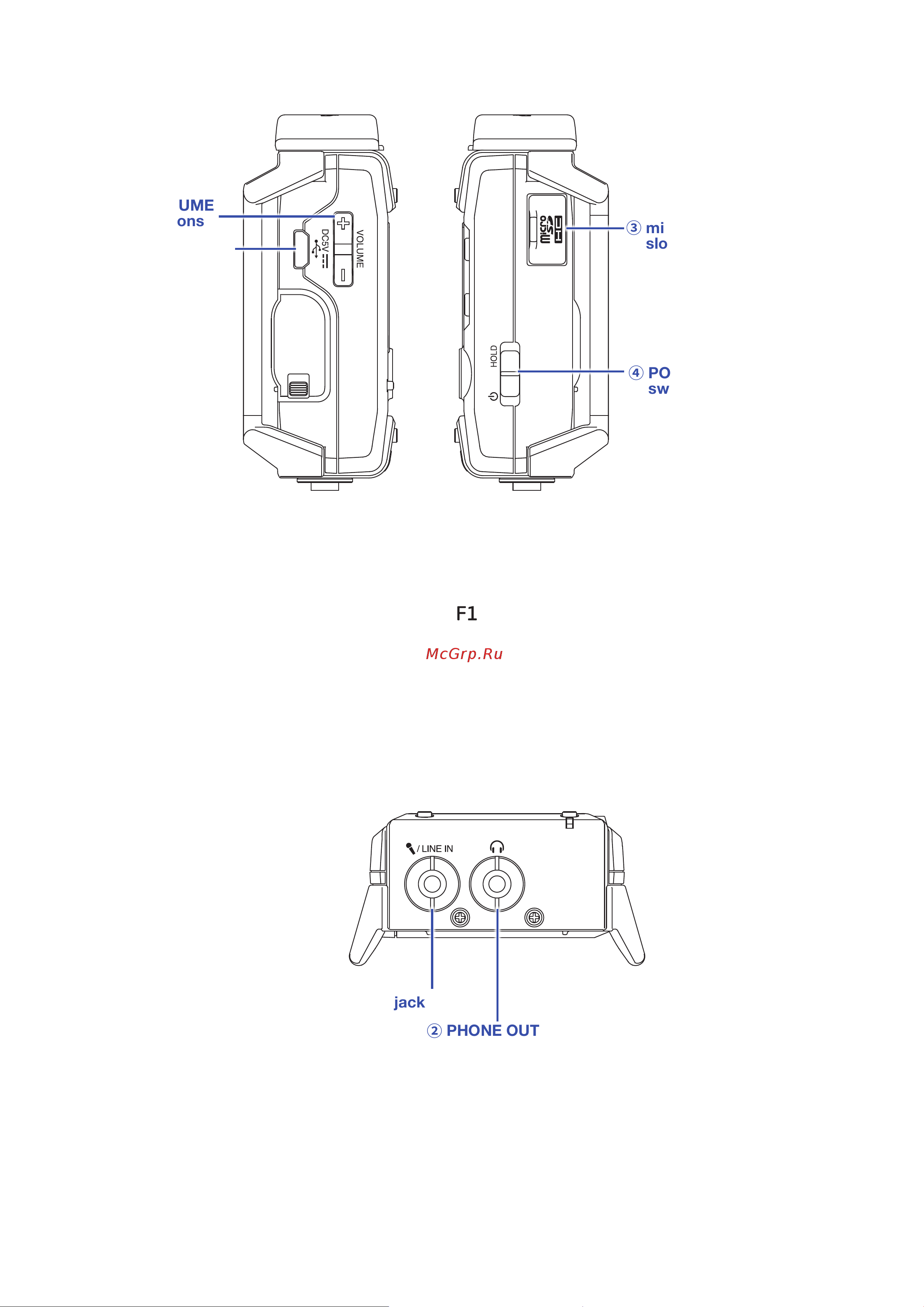

Left and right sides

①

VOLUME

buttons

③

microSD card

slot

④

POWER [HOLD]

switch

②

USB port

①

VOLUME buttons

Use these to adjust the headphone output volume.

②

USB port

Connect this to a computer or iOS device to use the

as an audio interface or card reader.

③

microSD card slot

Insert a microSD card here.

④

POWER [HOLD] switch

Use this to turn the power ON/OFF and to disable button operation.

■

Bottom

①

MIC/LINE IN jack

②

PHONE OUT jack

①

MIC/LINE IN jack

Connect an external mic here. Mics that require plug-in power can be used with this jack.

②

PHONE OUT jack

Connect headphones here.
