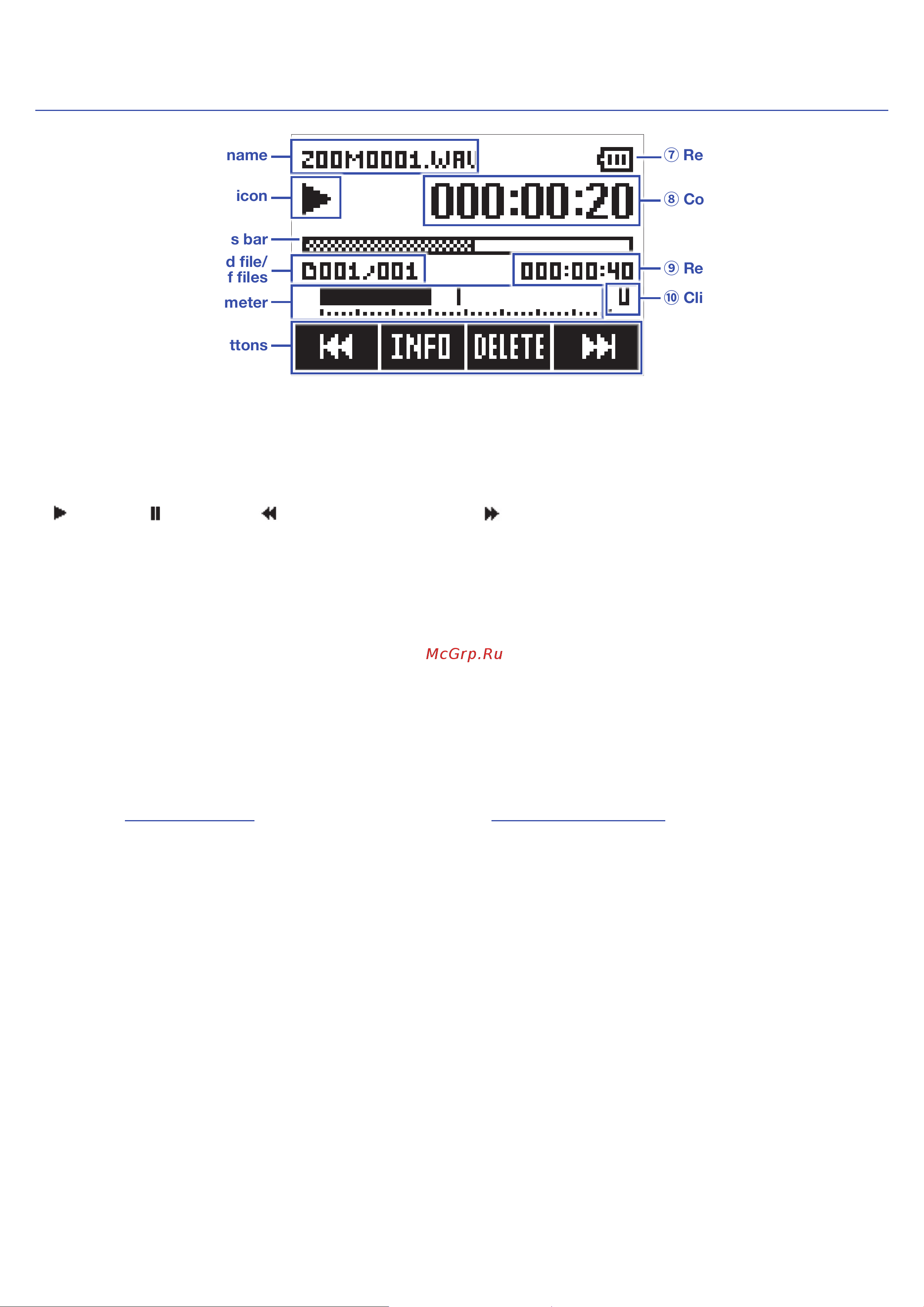

Playback Screen
①
File name
②
Status icon
④
Number of selected le/
total number of les
⑤
Level meter
③
Progress bar
⑥
Function buttons
⑦
Remaining battery charge
⑧
Counter
⑨
Remaining playback time
⑩
Clipping indicator
①
File name
This shows the name of the le being played.
②
Status icon
This shows the playback status.
Playing Paused Searching backward Searching forward
③
Progress bar
This shows the current playback location.
④
Number of selected le/total number of les
⑤
Level meter
This shows the audio playback level.
⑥
Function buttons
These display functions that can be set on the Playback Screen.
⑦
Remaining battery charge
This shows the remaining battery charge. When the remaining battery charge becomes low, replace the bat-
teries (
→
"Using batteries") or connect an AC adapter (
→
"Using an AC adapter").
⑧
Counter
This shows the elapsed playback time.
⑨
Remaining playback time
⑩
Clipping indicator
This lights when the playback level is too hot.
8
