Zoom F1-SP [67/73] The estimated amount of time required for the full test will be shown
![Zoom F1-SP [67/73] The estimated amount of time required for the full test will be shown](/views2/2009588/page67/bg43.png)

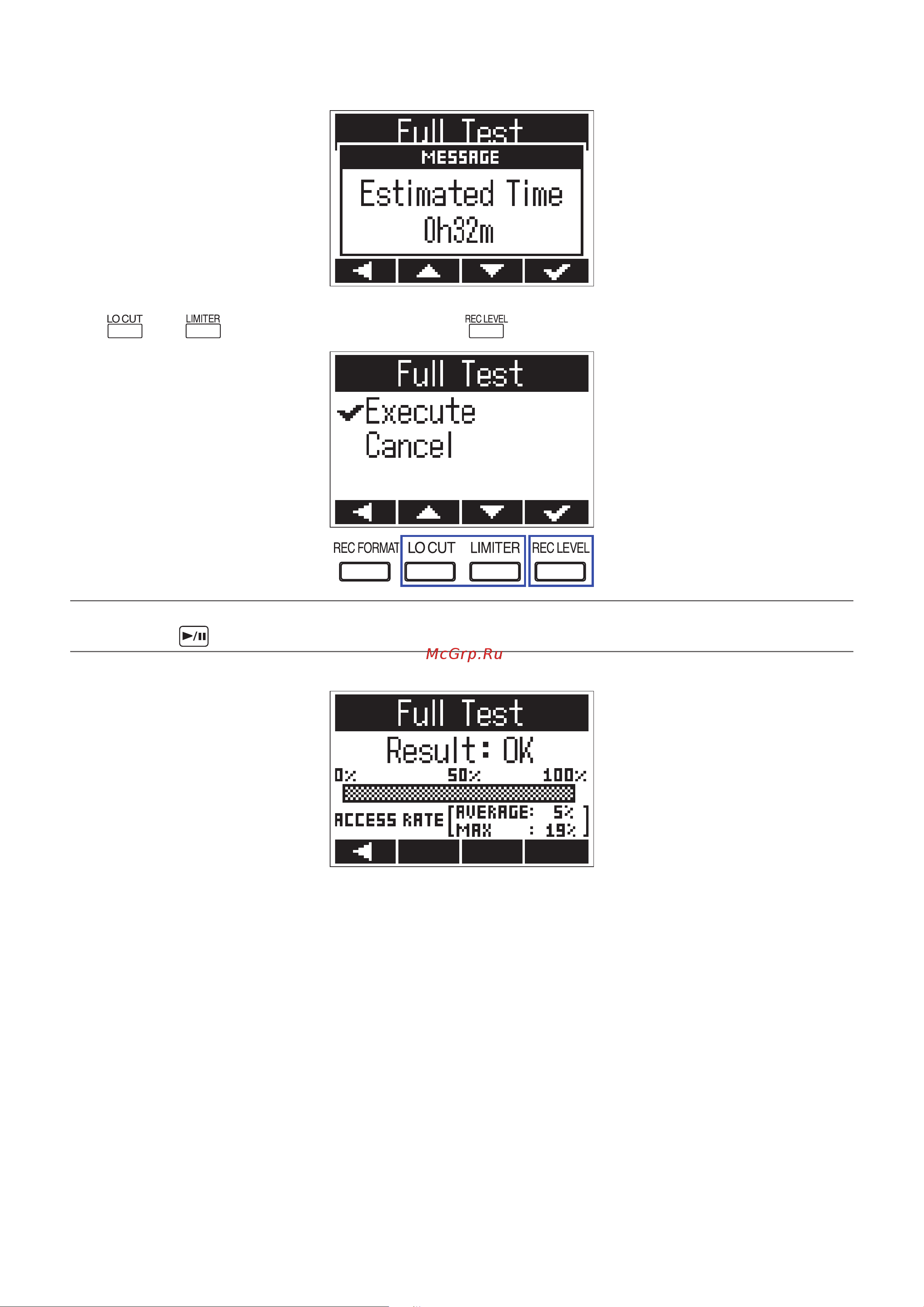

The estimated amount of time required for the full test will be shown.
5.
Use and to select "Execute", and press .
HINT
You can press to pause and resume a test.
6.
Check the result when the test completes.
66
