Zoom F1-SP [30/73] When using the mic line in jack

When using the MIC/LINE IN jack

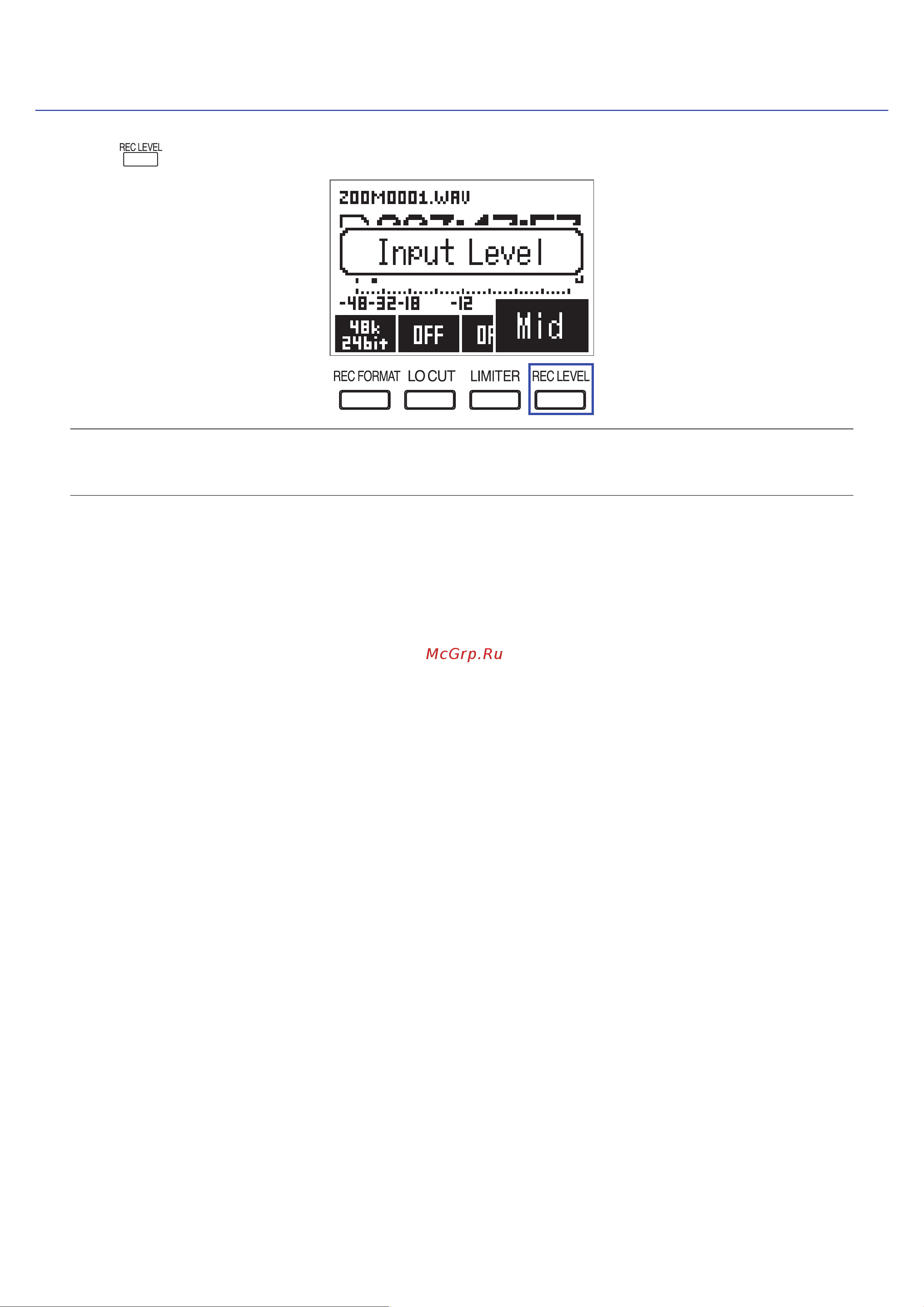

Press , and select the input level.

HINT

• This can be set to Lo-, Lo, Mid-, Mid, Mid+, Hi-, Hi, Hi+, Hi++ or AUTO.

• Select AUTO if you want the input level to be adjusted automatically.
