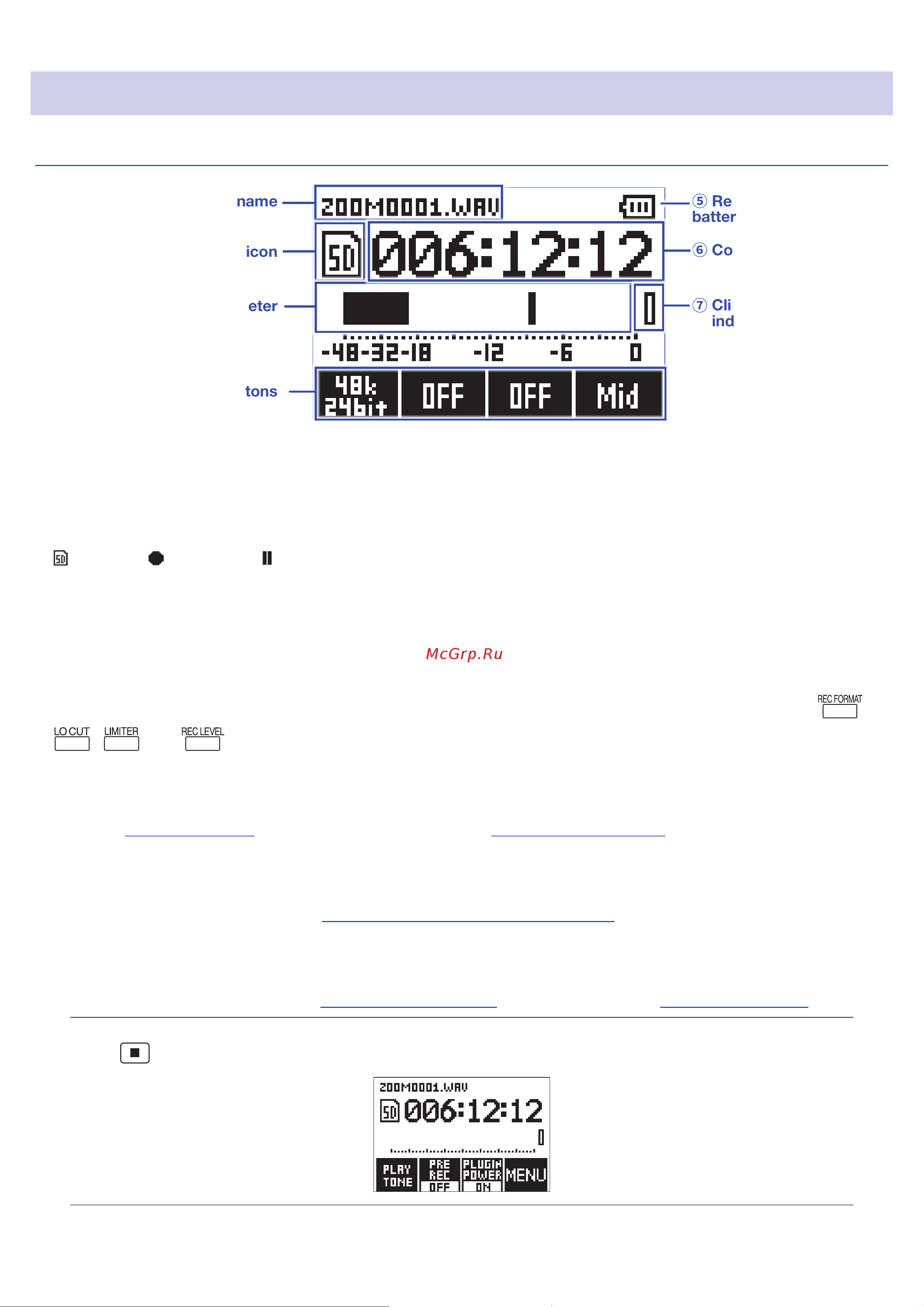

Display overview
Home Screen (in recording standby)
⑤
Remaining
battery charge
①
File name
②
Status icon
③
Level meter
④
Function buttons
⑥
Counter
⑦
Clipping
indicator
①
File name
This shows the name of the recording le.
②
Status icon
This shows the recording status.
Ready Recording Paused
③
Level meter
This shows the current input level. The number of level meters displayed changes according to the type of
recording le and mic capsule.
④
Function buttons
These display functions that can be set on the Home Screen. From left to right, these correspond to
,
, and .
⑤
Remaining battery charge
This shows the remaining battery charge. When the remaining battery charge becomes low, replace the bat-
teries (
→
"Using batteries") or connect an AC adapter (
→
"Using an AC adapter").
⑥
Counter
This shows the remaining recording time when standing by and the current elapsed recording time when re-
cording or in recording standby (
→
"Setting how the counter is displayed").
⑦
Clipping indicator
This lights when the input level exceeds the threshold of overload. If the clipping indicator lights, turn down
the input level or set the limiter. (
→
"Adjusting input levels") or set the limiter (
→
"Setting the limiter").
HINT
Press when the Home Screen is open to switch the functions of the function buttons.
7
