Zoom F1-SP [28/73] Stop test tone playback

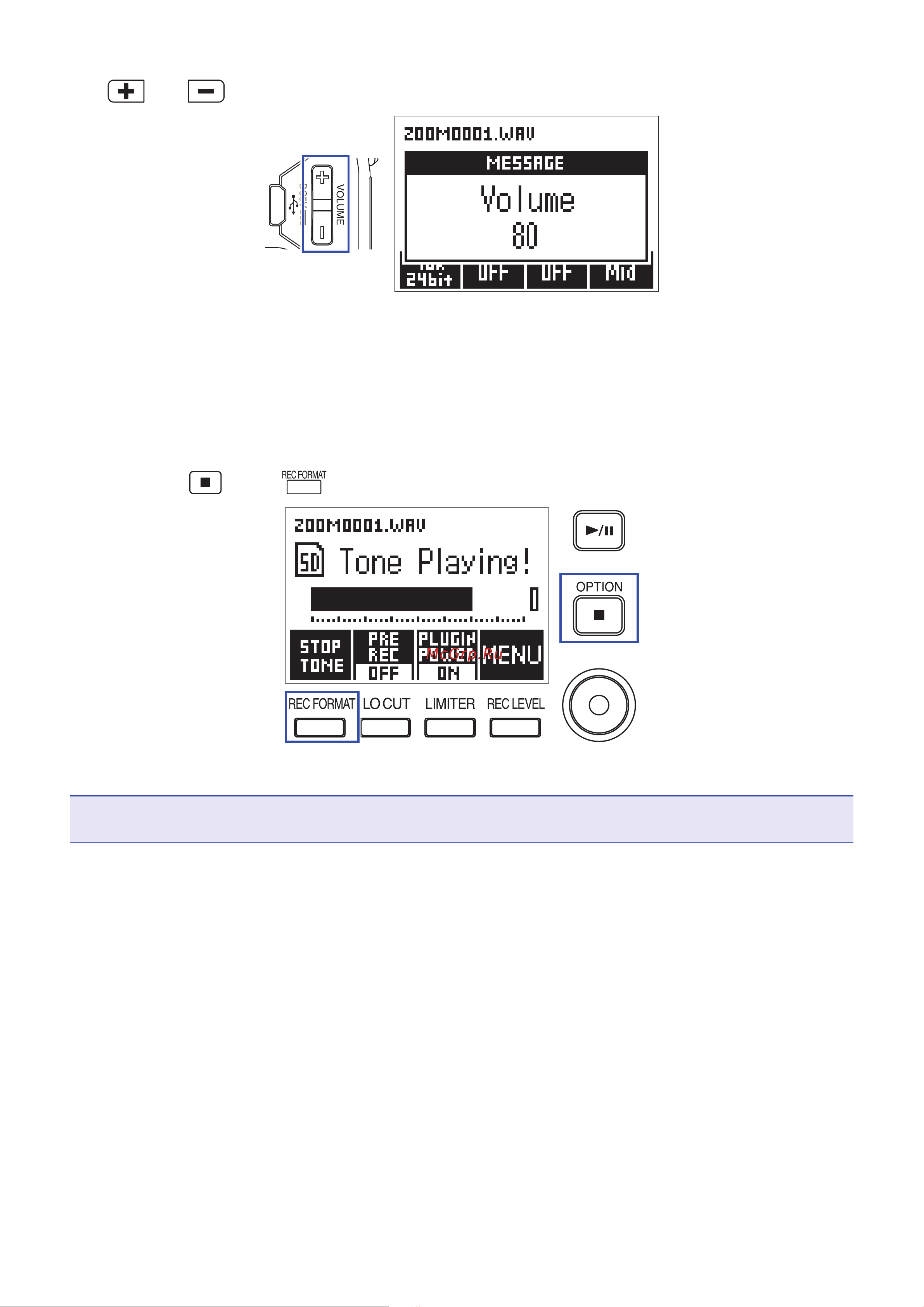

Use and to adjust the output level.

While checking the audio level meter of the other device, adjust the audio signal level so that it never

exceeds −6 dB.

Adjust the input gain of the other device.

While checking the audio level meter of the connected device, make small adjustments to the input

gain of that device until the audio signal level is about −6 dB.

While pressing , press .

Stop test tone playback.

NOTE

See the operation manual of the other device for information about its operation.
