Zoom F1-SP [33/73] Setting the limiter

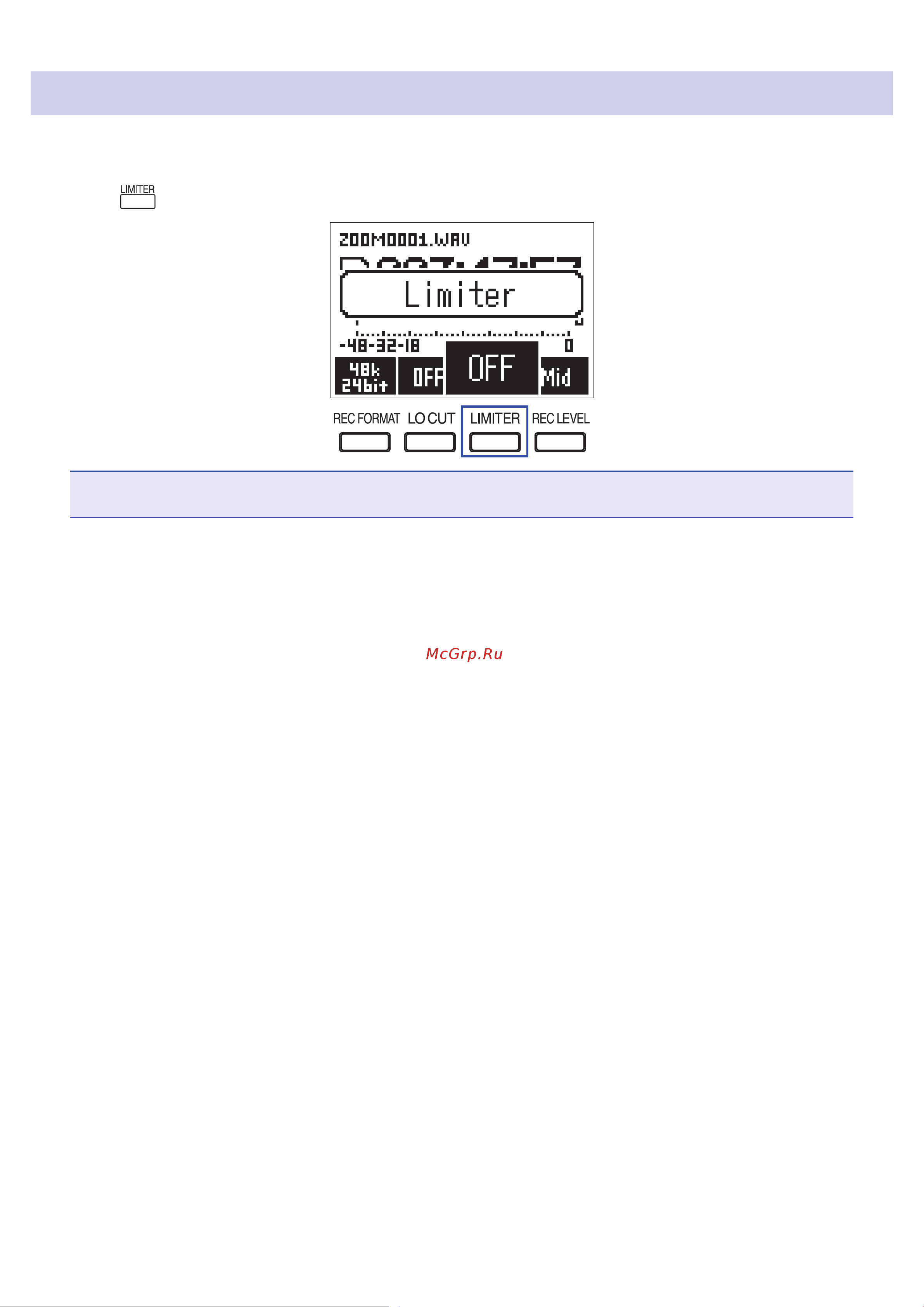

Setting the limiter

The limiter can prevent distortion by reducing input signals that have excessively high levels.

Press to select ON.

NOTE

When the limiter is ON, noise will be more audible when the input signal level is low.
