Zoom F1-SP [52/73] Automatically disable buttons during recording
![Zoom F1-SP [52/73] Automatically disable buttons during recording](/views2/2009588/page52/bg34.png)

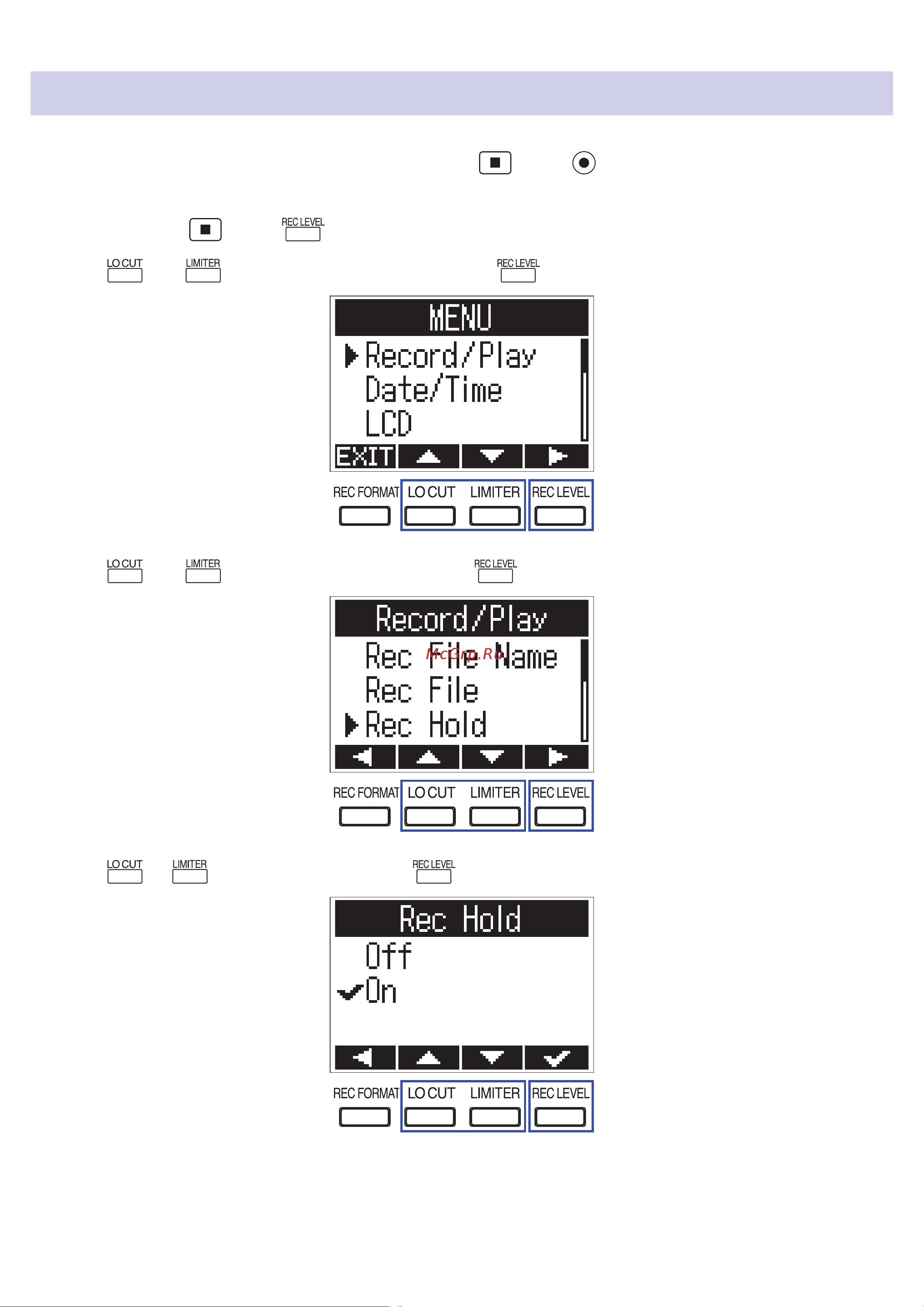

Automatically disable buttons during recording
Button operations can be disabled during recording to prevent misoperation.
To stop recording when this function is on, while pressing
, press .
1.
While pressing , press to open the MENU screen.
2.
Use and to select "Record/Play", and press .
3.
Use and to select "Rec Hold", and press .
4.
Use or to select "On", and press .
51
