Zoom F1-SP [26/73] Adjusting the side mic level of a mid side capsule

Adjusting the side mic level of a mid-side capsule

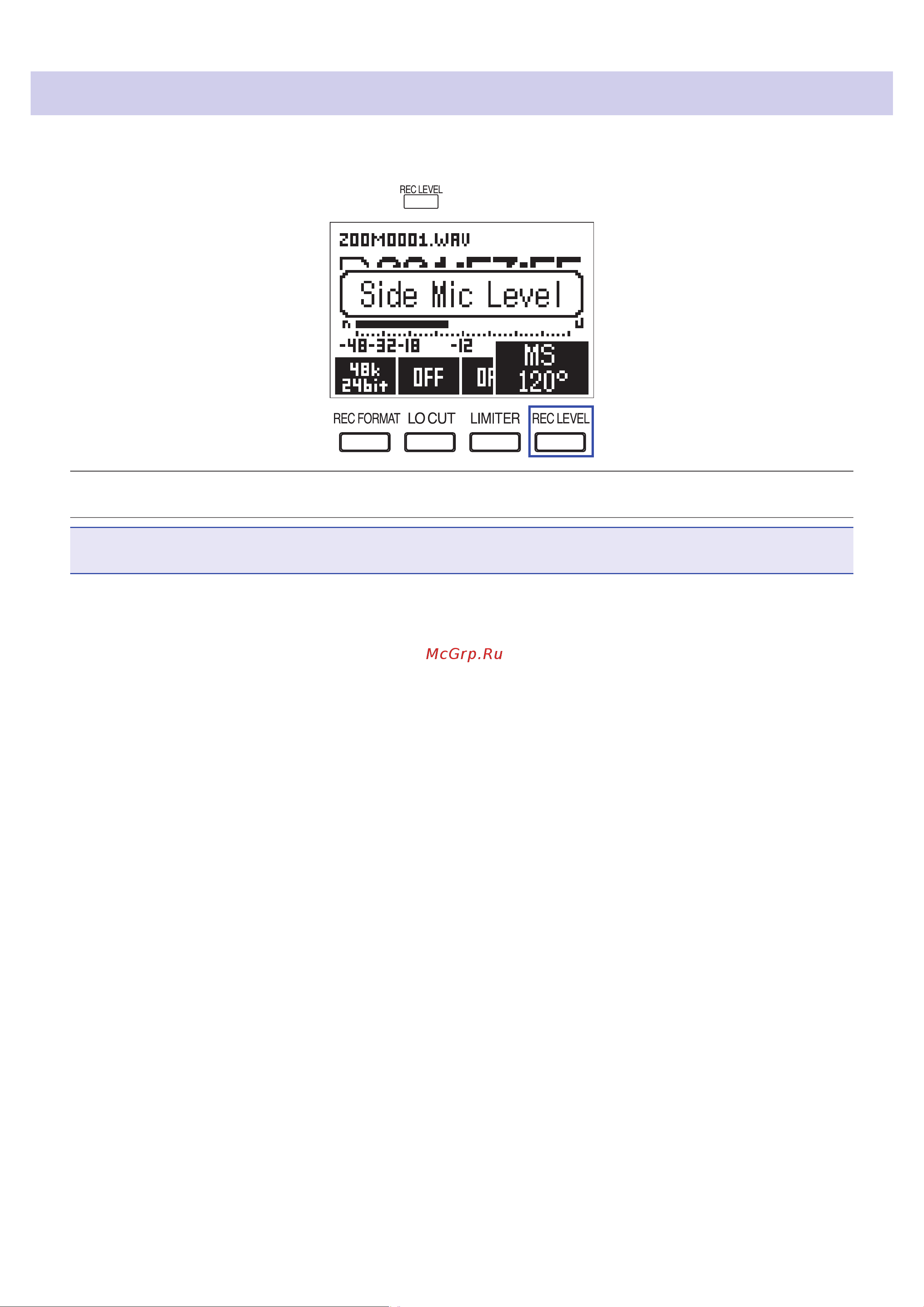

You can adjust the side mic level (stereo width) before recording when using a mid-side mic capsule

When the mic capsule is connected, press , and select the side mic level.

HINT

This can be set to OFF, 30°, 60°, 90°, 120° or 150°.

NOTE

This cannot be changed while recording.
