Zoom F1-SP [68/73] Checking the firmware versions
![Zoom F1-SP [68/73] Checking the firmware versions](/views2/2009588/page68/bg44.png)

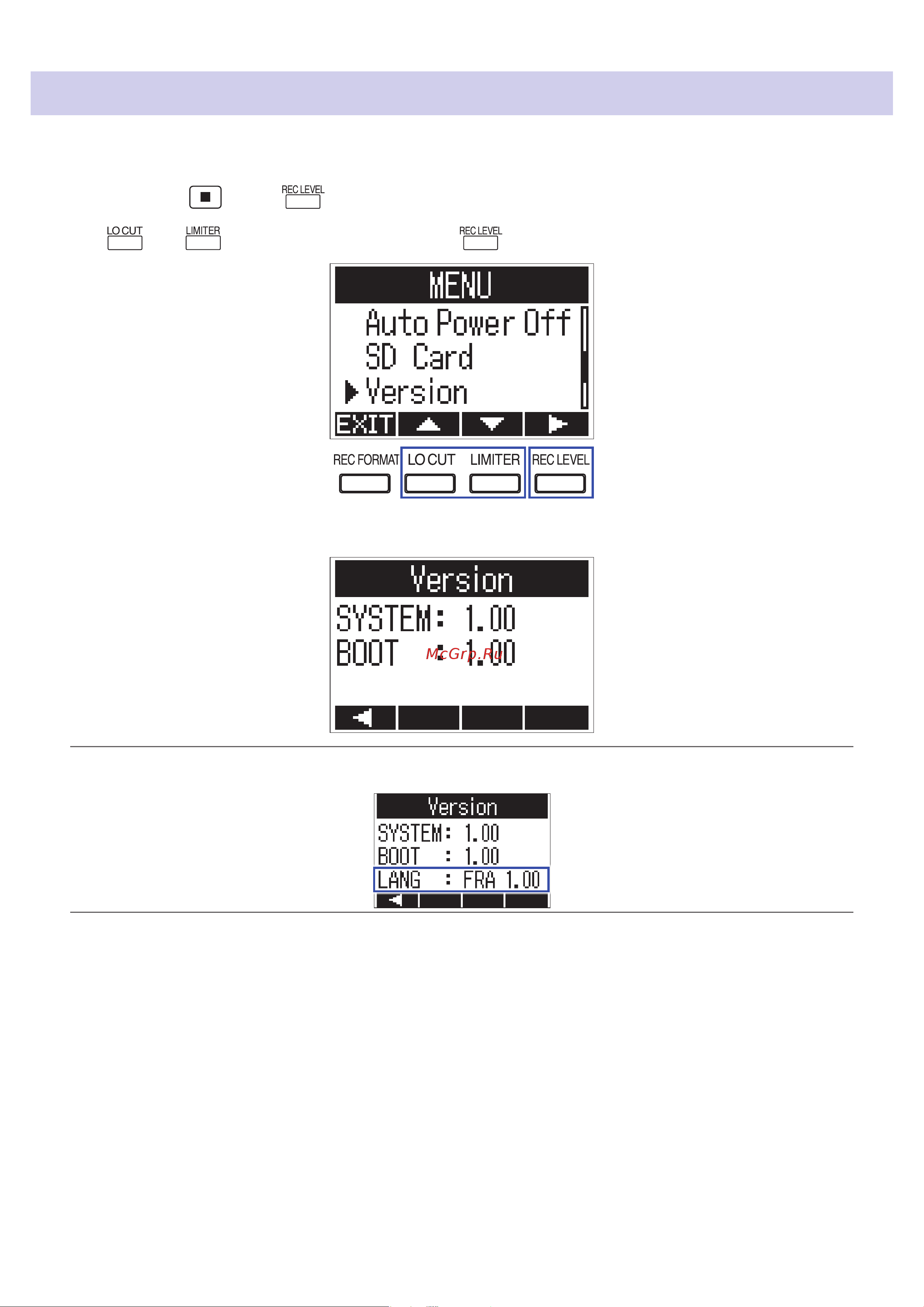

Checking the rmware versions
You can check the current rmware versions.
1.
While pressing , press to open the MENU screen.
2.
Use and to select "Version", and press .
3.
Check the rmware versions.
HINT
If a language le has been added, its version will also be shown.
67
