4.

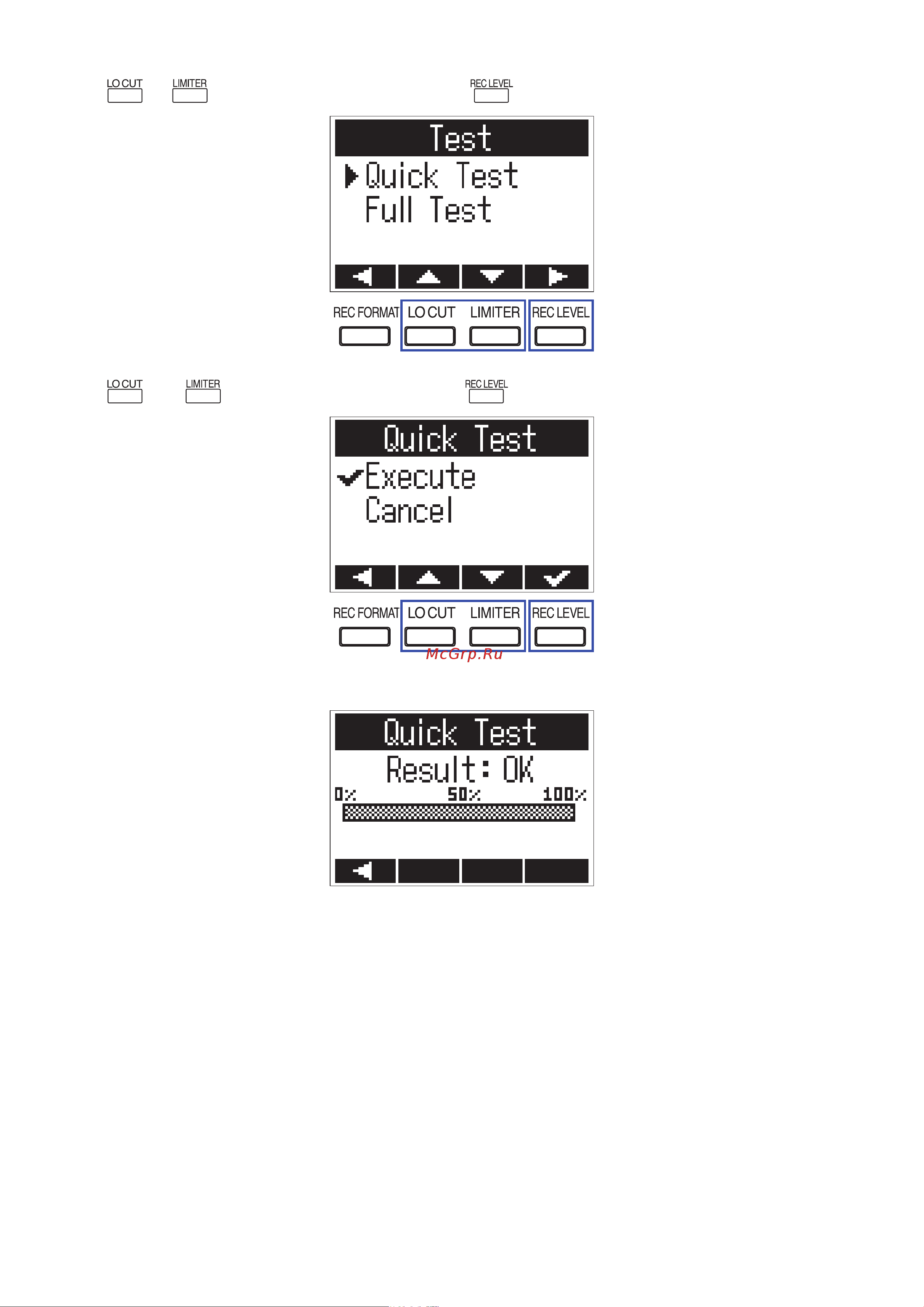

Use or to select "Quick Test", and press .
5.
Use and to select "Execute", and press .
6.
Check the result when the test completes.
64
