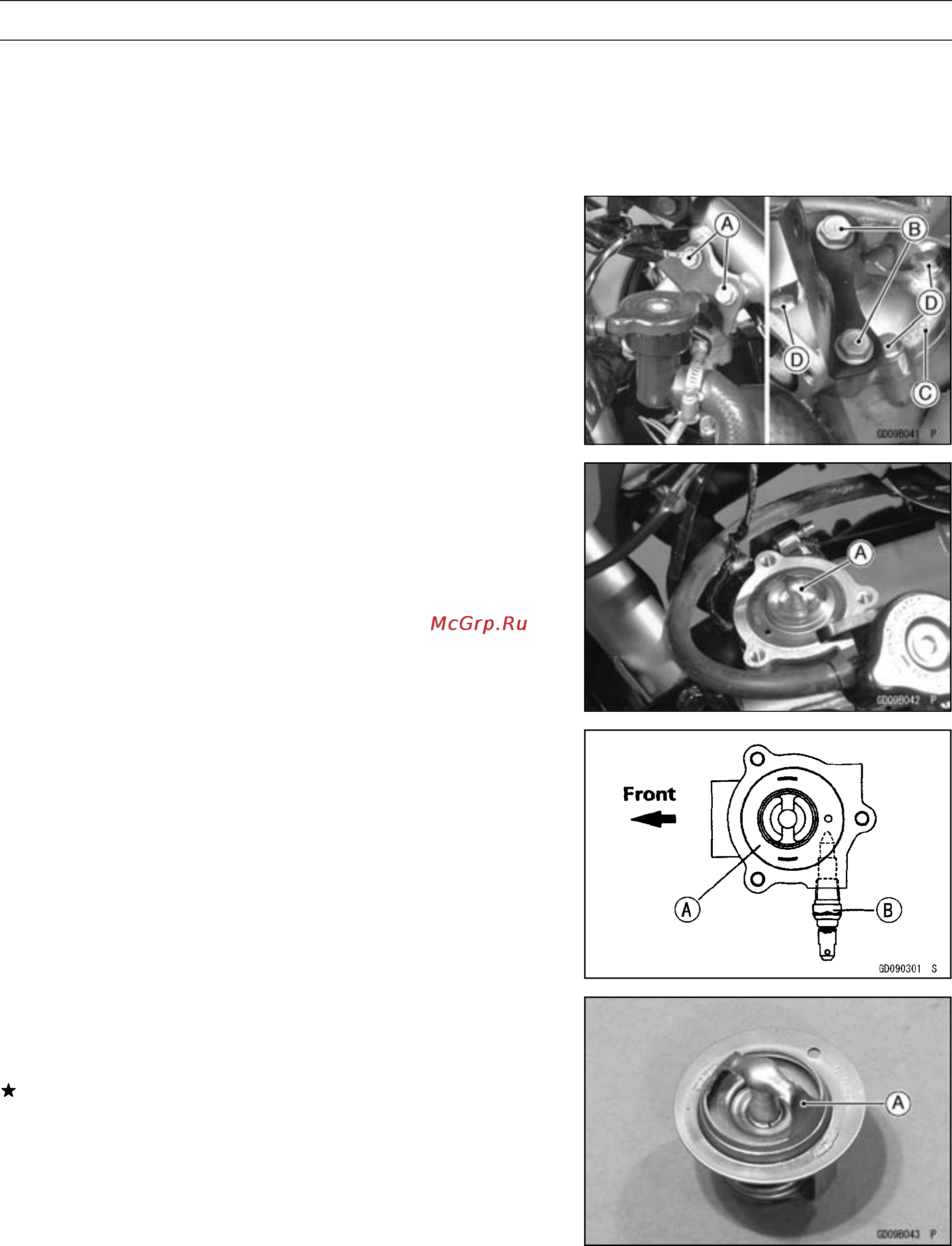

4-16 COOLING SYSTEM
Thermostat
Thermostat Removal
•
Drain the coolant.
•
Remove the left lower fairing (see Lower Fairings Re-
moval in the Frame chapter).
•
Turn the handlebar to right side fully.
•
Remove the radiator filler mounting bolts [A].
•
Remove the thermostat housing mounting bolts [B], and
pull the thermostat housing [C] to outside.
•
Unscrew the thermostat housing bolts [D].
•
Pull out the thermostat [A].
Thermostat Installation
•
Install the thermostat [A] into the thermostat housing so
that the thermostat does not touch the water temperature
switch [B] as shown.
•
Be sure to install the O-ring on the thermostat housing
cover.
•
Fill the radiator with coolant.
Thermostat Inspection
•
Remove the thermostat, and inspect the thermostat valve
[A] at room temperature.
If the valve is open, replace the valve with a new one.
