CRANKSHAFT/TRANSMISSION 9-13
Crankcase Splitting
•
Turn the engine over so it is upright.
•

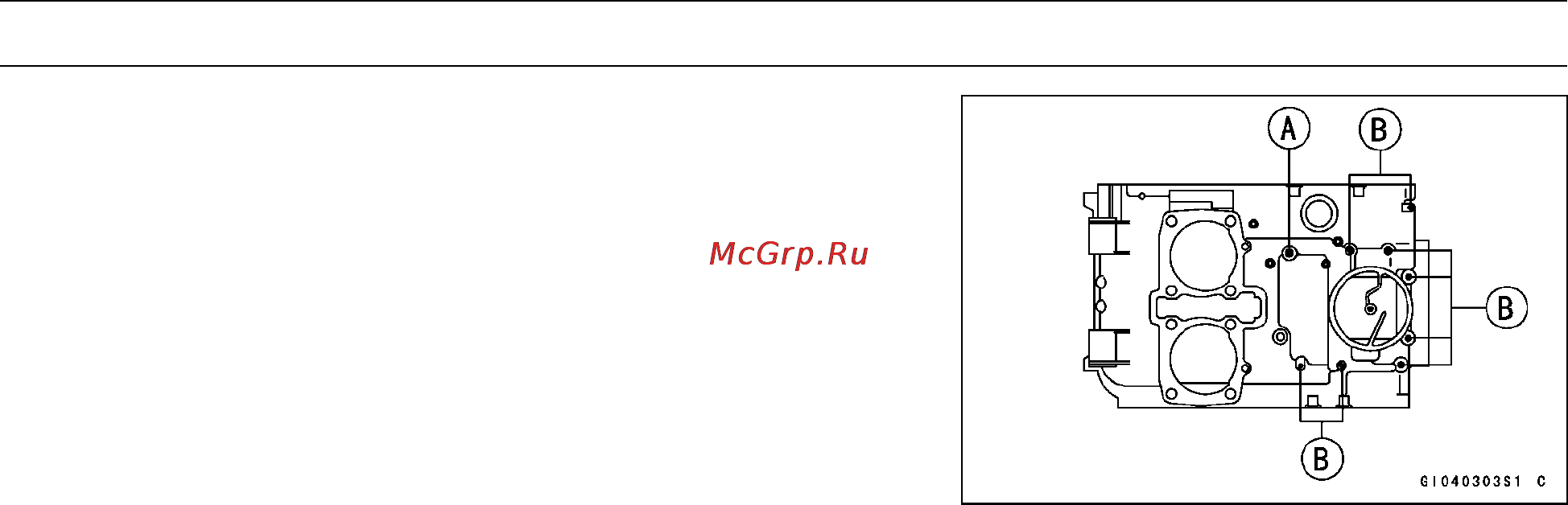

Put the 8 mm bolts [A], and the 6 mm bolts [B] into the
upper crankcase half as shown in the figure, torque the 8
mm bolt first, then the other bolts in the sequence shown.
Torque - Crankcase 8 mm Bolts: 27 N·m (2.8 kgf·m, 20 ft·lb)
Crankcase 6 mm Bolts: 12 N·m (1.2 kgf·m, 104
in·lb)
•
After tightening all crankcase bolts, check the following
items:
○
Drive shaft and output shaft turn freely.
○
While s pinning the output shaft, gears shift smoothly from
the 1st to 6th gear, and 6th to 1st.
○
When the output shaft stays still, the gear can not be
shifted to 2nd gear or other higher gear positions.
