ELECTRICAL SYSTEM 16-39
Ignition System
•

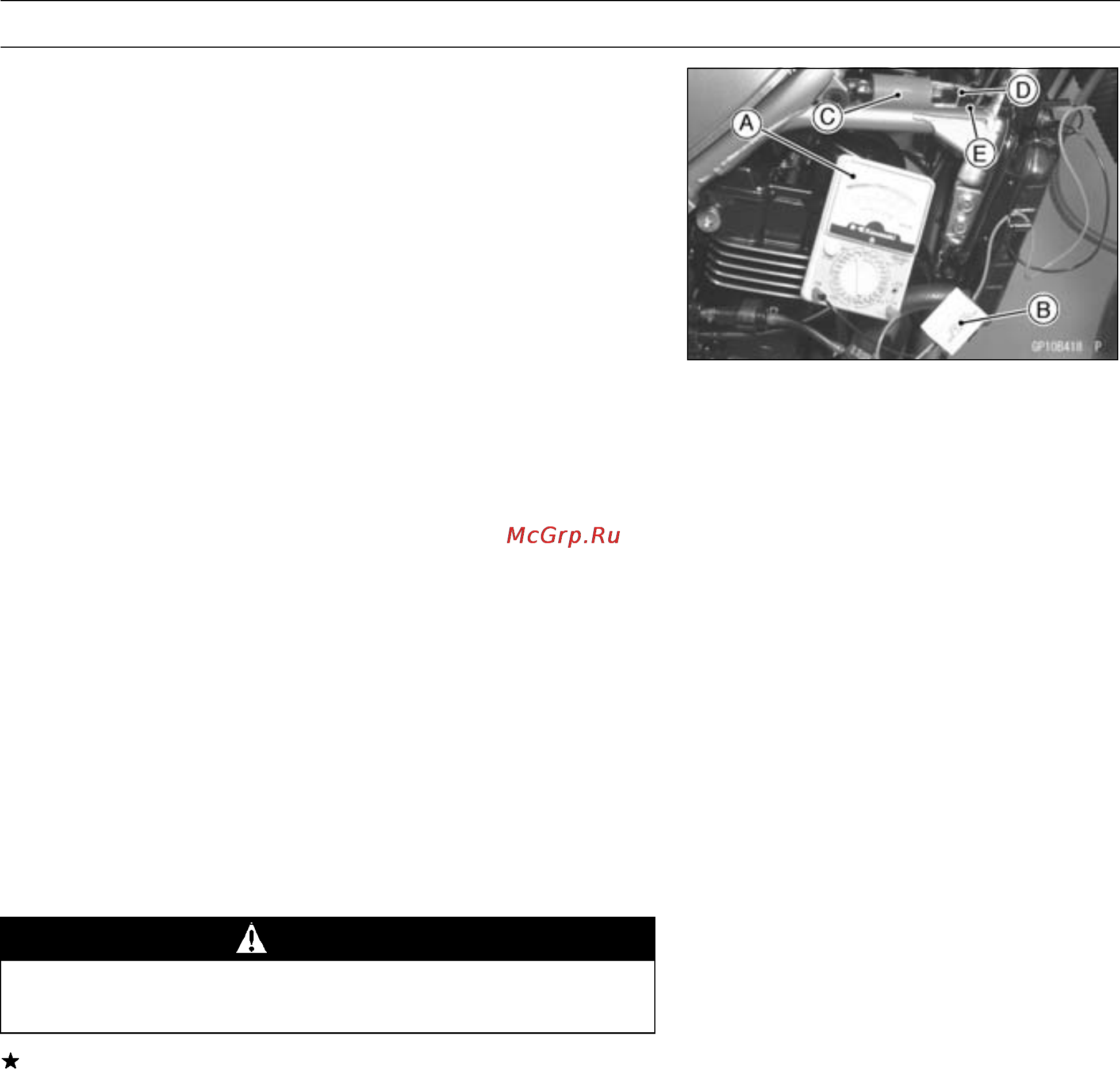

Set the tester to the DC 250 V range. Connect the
peak voltage adapter [B] to the tester [A], and connect
the adapter terminals to the respective terminals of the
ignition coil [C].
○
Keep the terminals connected.
Special Tool - Kawasaki Hand Tester: 57001-1394
Peak Voltage Adapter: 57001-1415
Type: KEK-54-9-B
Connect
#1
Adapt er’s posit ive (+)
→
terminal black wire
terminal [D]
Adapter’s negative (–)
terminal
→
red wire terminal [E]
#2
Adapter’s positive (+)
terminal
→
green wire terminal
Adapter’s negative (–)
terminal
→
red wire terminal
•
Turn the ignition switch ON.
•
Shift the gears to neutral, and run the engine stop switch.
•
Turn the s tarter motor for several seconds and read the
maximum value on the tester.
Ignition Coil Primary Peak Voltage
Standard: DC100 V or more
WARNING
To avoid high-voltage electrical shocks, do not
touch the adapter terminals or leads.
If the peak voltage is lower than the standard, refer to the
next page.
