Kawasaki KLE500 (2004) [148/401] 36 engine top end
![Kawasaki KLE500 (2004) [148/401] 36 engine top end](/views2/1121221/page148/bg94.png)

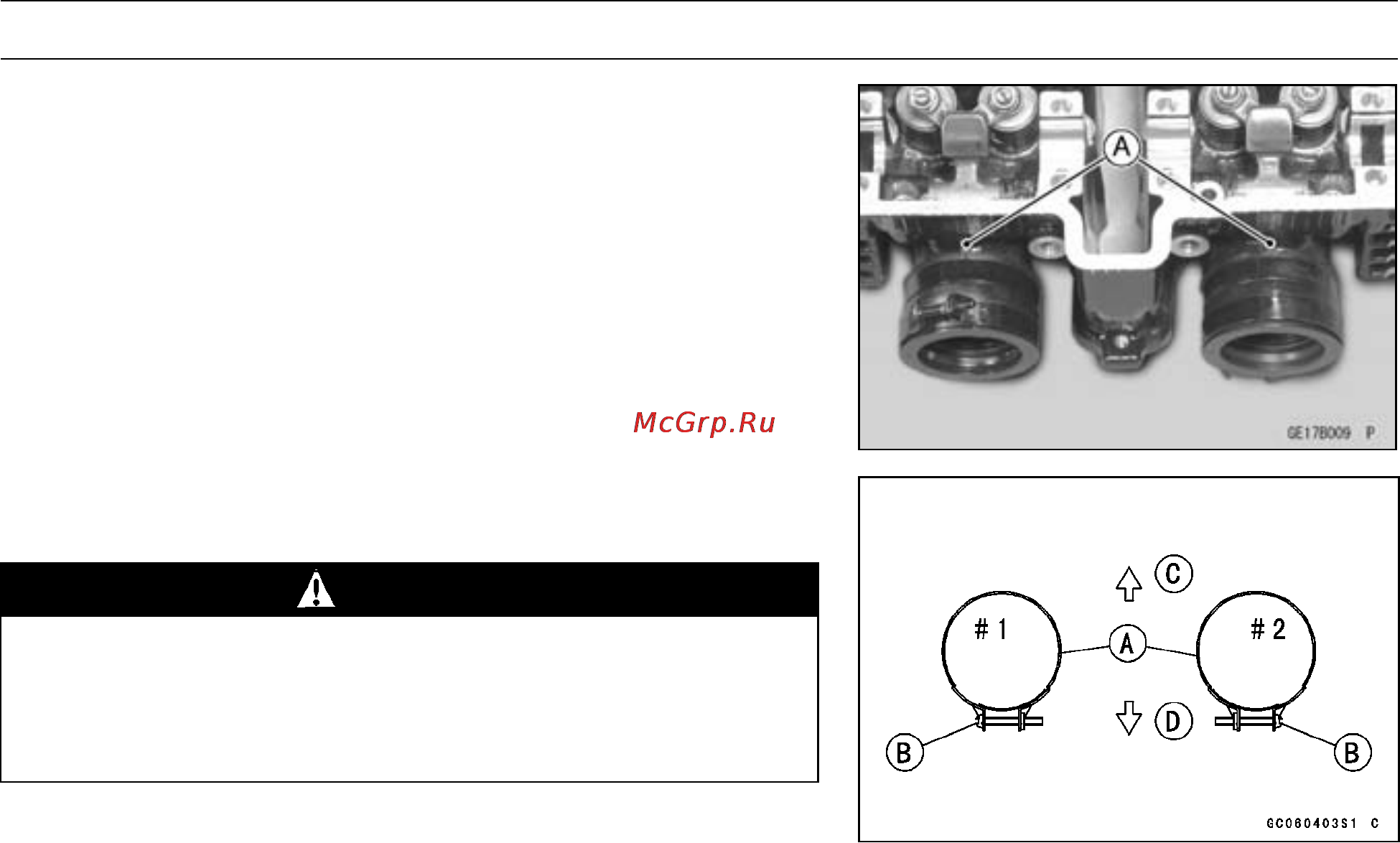

5-36 ENGINE TOP END
Carburetor Holder
Carburetor Holder Installation
•
Install the carburetor holders. The projection [A] faces
upwards.
•
Install the holder clamps [A] as shown being careful of the
screw position and the screw head [B] direction.
WARNING
Install the clamp screws horizontally. Otherwise the
screws could come in contact with the vacuum ad-
justing screws, resulting in an unsafe riding condi-
tion.
[C] Top
[D] Bottom
