9-14 CRANKSHAFT/TRANSMISSION

Clutch Housing/Primary Chain

Clutch Housing/Primary Chain Removal

•

Remove the engine.

•

Remove:

Cylinder Head, Cylinder and Pistons (see Cylinder

Head, Cylinder and Piston in the Engine Top End chap-

ter)

Starter Clutch Sprocket (see Starter Clutch Sprocket Re-

moval in the Electrical System chapter)

Clutch (except the Clutch Housing)

•

Split the crankcase.

•

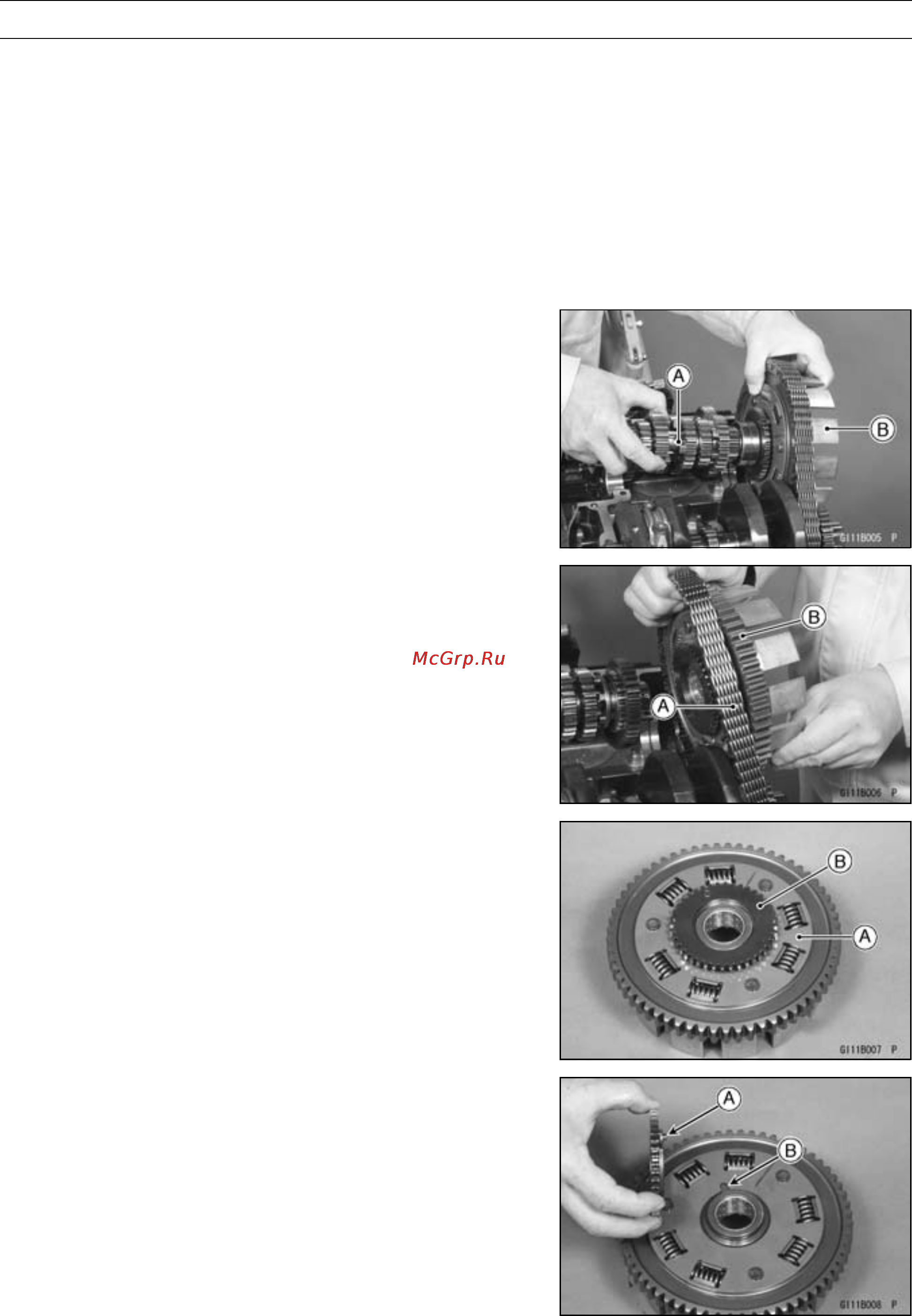

Lift up the transmission drive shaft assembly [A], and pull

the shaft out of the clutch housing [B].

•

Place the clutch housing on the balancer drive gear, slack

off the primary chain [A] as much as possible and slip the

primary chain off the clutch housing sprocket [B].

•

Remove the clutch housing [A].

•

Pull off the oil pump drive gear [B] from the clutch housing.

•

Lift up the crankshaft, and remove the primary chain.

Clutch Housing/Primary Chain Installation

•

Install the primary chain o n the sprocket of the crankshaft.

•

Install the oil pump drive gear fitting its pin [A] to the

groove [B] of the clutch housing sprocket.
