Kawasaki KLE500 (2004) [158/401] 8 clutch

6-8 CLUTCH

Clutch Lever and Cable

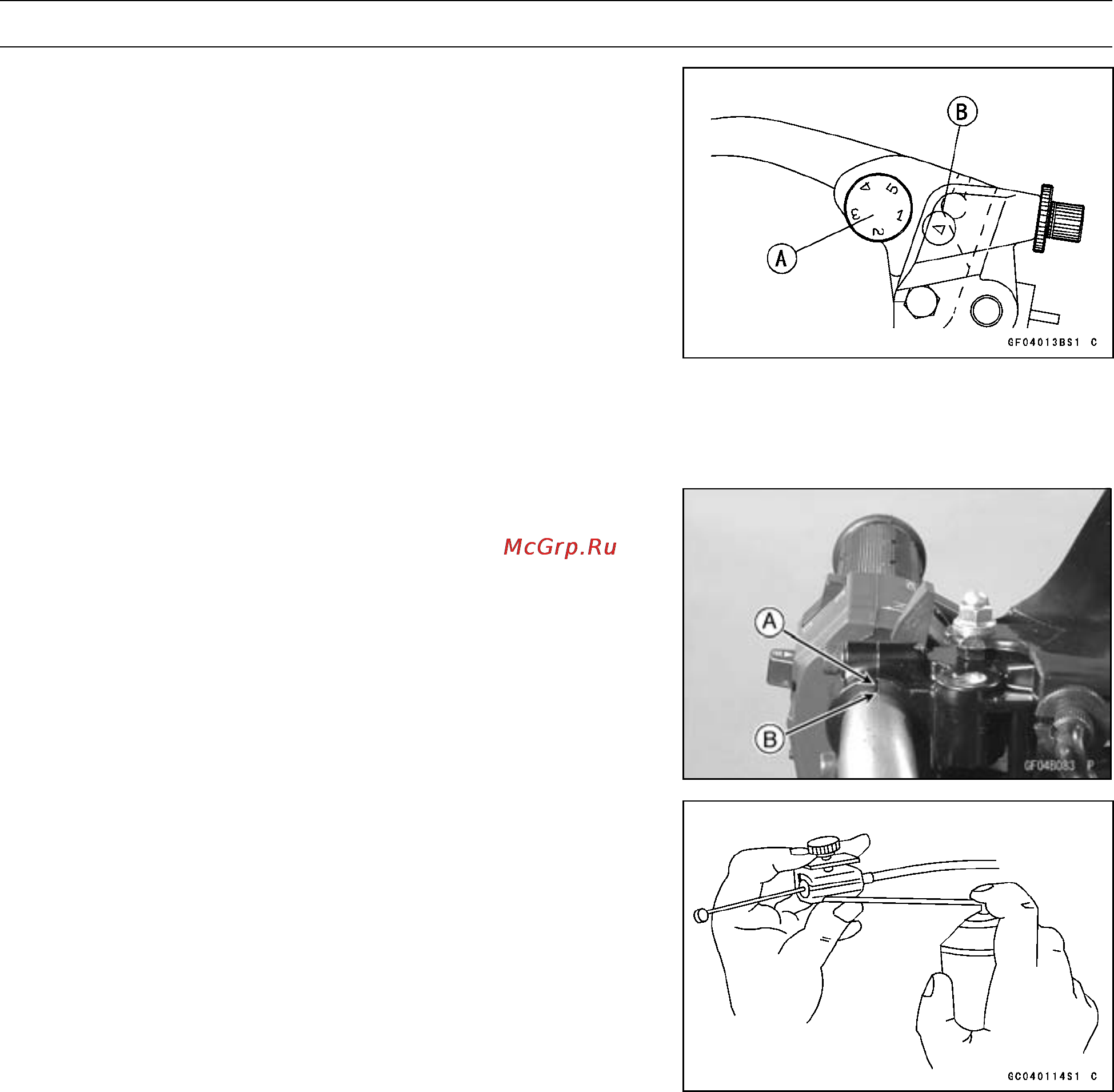

Clutch Lever Position Adjustment

The adjuster has 5 position so that the clutch lever posi-

tion can be adjusted to s uit the operator ’s hand.

•

Push the lever forward and turn the adjuster [A] to align

the number with the arrow mark [B] on the lever holder.

○

The distance from the grip to the released lever is mini-

mum at number 5 and maximum at number 1.

Clutch Cable Inspection

•

Refer to the Clutch Cable Inspection in the Periodic Main-

tenance chapter.

Clutch Lever Installation

•

Install the clutch lever so that the mating surface [A] of

the lever holder is aligned with the punch mark [B] on the

handlebar.

Cable Lubrication

Whenever the clutch cable is removed, lubricate the

clutch cable as follows.

•

Apply a thin coating of grease to the cable upper and

lower ends.

•

Lubricate the cable with a penetrating rust inhibitor.
