ELECTRICAL SYSTEM 16-45
Electric Starter System
•

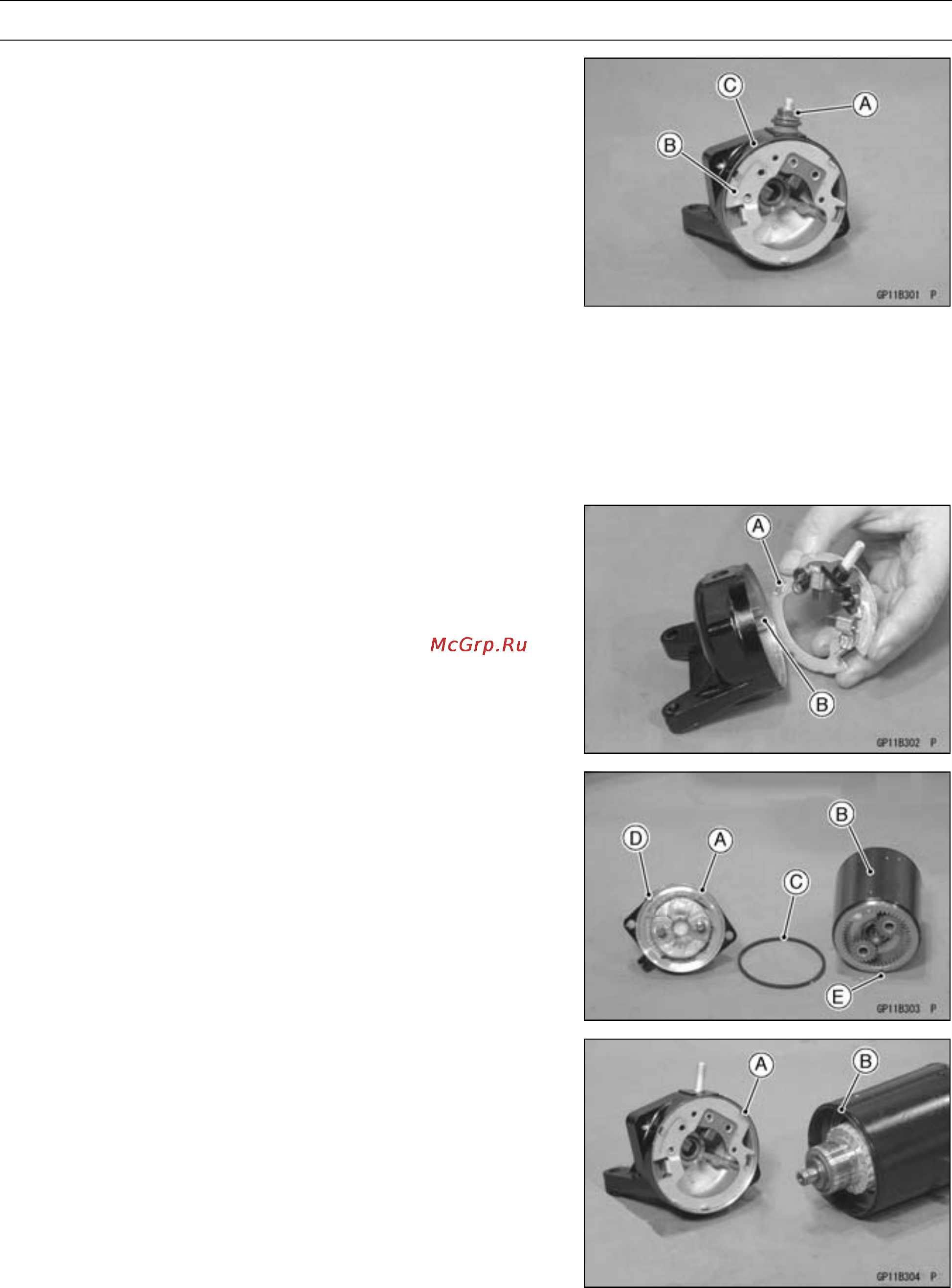

Remove the terminal nut [A], and take the brush plate [B]
off the end cover [C].
Starter Motor Assembly
•
Replace any O-ring removed with a new one.
•
Install the terminal bolt.
•
Tighten the terminal nut.
Torque - Starter Motor Terminal Nut: 6.9 N·m (0.7 kgf·m, 61
in·lb)
•
Install the brush plate on the end cover, align the tab [A]
on the plate with the slot [B] in the cover.
•
Insert the armature into the yoke.
•
Install the end gear cover [A] and O-ring [C] on the yoke
housing [B], and align the projection [D] on the housing
with the notches [E] in the gear housing.
•
Install the end cover on the yoke housing, and align the
short and wide tab [A] on the brush plate with the notch
[B] in the housing.
