ELECTRICAL SYSTEM 16-31
Charging System

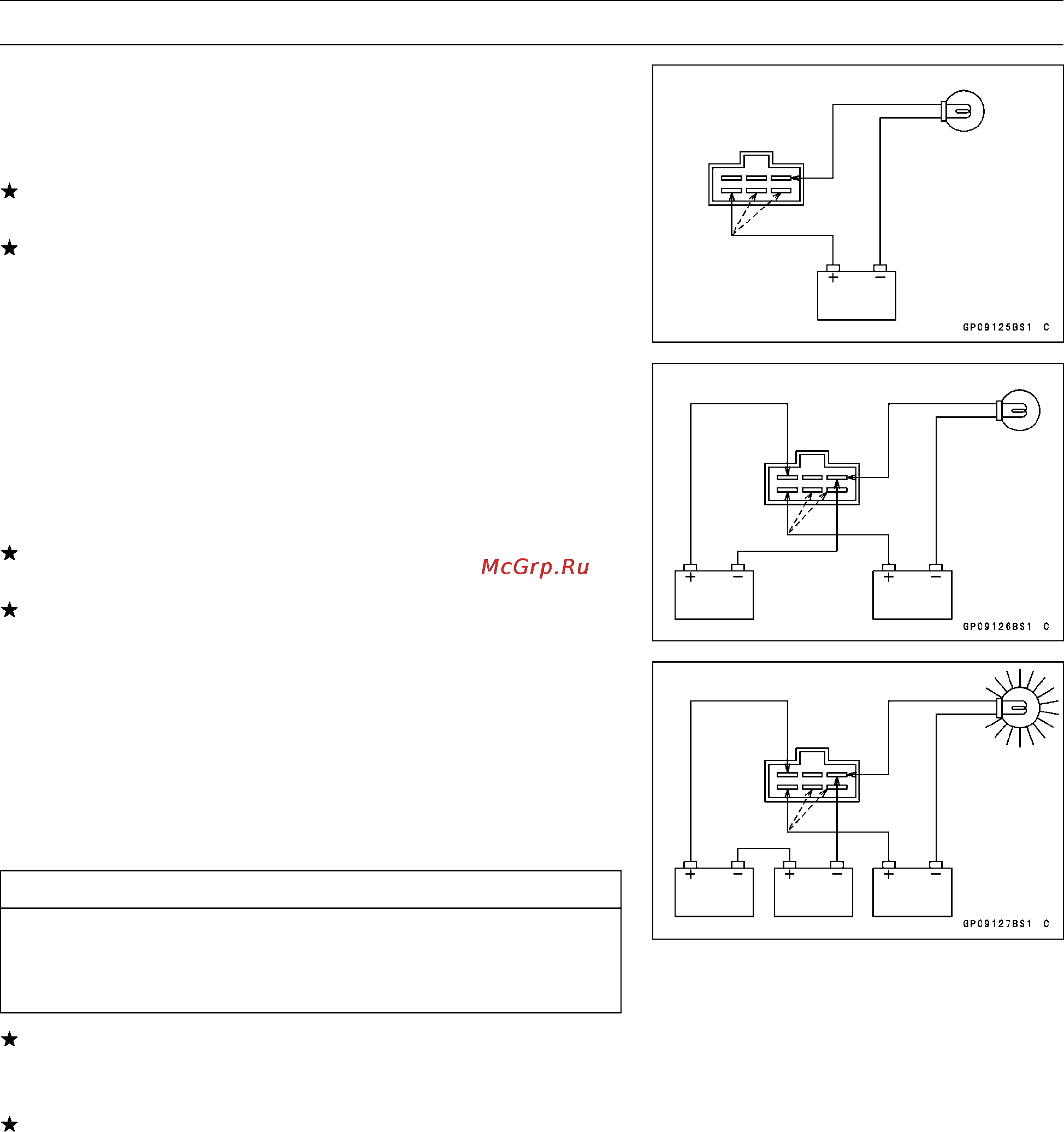

Regulator Circuit Test-1st Step:
•
Connect the test light and the 12 V battery to the regula-
tor/rectifier as shown.
•
Check Y1, Y2, and Y3 terminal respectively.
If the test light turns on, the regulator/rectifier is defective.
Replace it.
If the test light does not turn on, continue the test.
Regulator Circuit Test-2nd Step:
•
Connect the test light and the 12 V battery in the same
manner as specified in the "Regulator Circuit Test-1st
Step".
•
Apply 12 V to the BR (voltage monitoring) terminal.
•
Check Y1, Y2, and Y3 terminal respectively.
If the test light turns on, the regulator/rectifier is defective.
Replace it.
If the test light does not turn on, continue the test.
Regulator Circuit Test-3rd Step:
•
Connect the test light and the 12 V battery in the same
manner as specified in the "Regulator Circuit Test-1st
Step".
•
Momentarily apply 24 V to the BR terminal by adding a 12
V battery.
•
Check Y1, Y2, and Y3 terminals respectively.
CAUTION
Do not apply more than 24 V to the regulator/recti-
fier and do not leave the 24 V applied for more than
a few seconds, or the unit will be damaged.
If the test light did not light when the 24 V was applied
momentarily to the BR terminal, the regulator/rectifier is
defective. Replace it.
If the regulator/rectifier passes all of the tests described,
it may still be defective. If the charging system still does
not work properly after checking all of the components
and the battery, t est the regulator/rectifier by replacing it
with a known good unit.
