16-38 ELECTRICAL SYSTEM
Ignition System

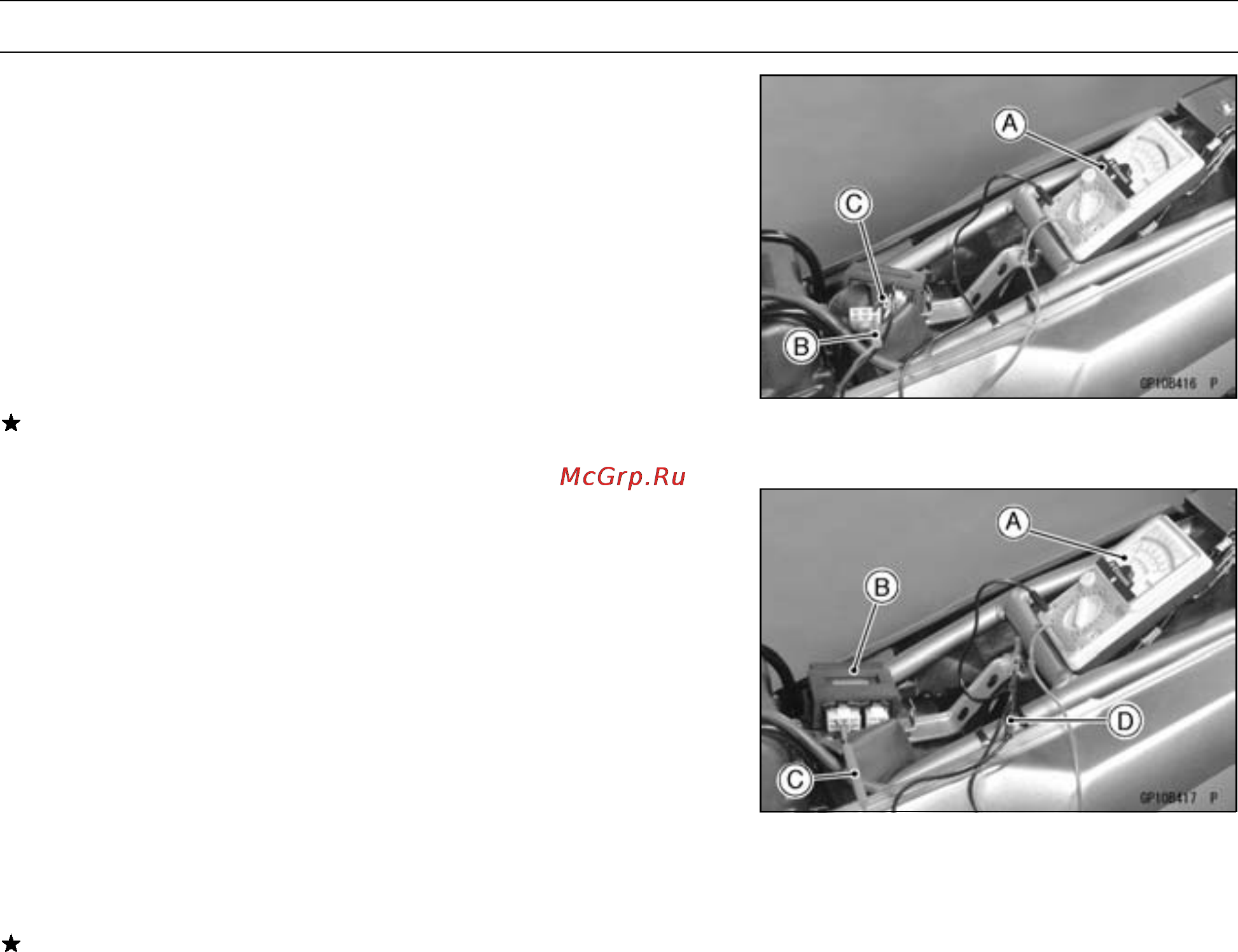

Set the Hand Tester [A] to the × 25 V DC range, and
connect it to the connector come from harness side as
follows.
Tester (+) terminal [B] BR/W lead
Tester (–) terminal [C] BK/Y lead
Special Tool - Hand Tester: 57001-1394
Needle Adapter Set: 57001-1457
Turn the ignition switch on , and read the voltage.
IC Igniter Operation Voltage: Battery Voltage
If the tester reading is not specified one, check the battery
voltage, ignition switch and ignition fuse.
Starter Button Operation Check
Remove the seats (see Seat Removal in the Frame chap-
ter).
Set the Hand Tester [A] to the × 25 V DC range, connect
it to the IC igniter [B] lead as follows.
Hand Tester (+) Terminal [C] BK/R Lead
Hand Tester (–) Terminal [D] Frame Ground
Special Tool - Hand Tester: 57001-1394
Needle Adapter Set: 57001-1457
Turn the ignition switch on and push the starter button.
Read the voltage.
Starter Button Voltage: Batte ry Voltage
If the tester reading is not specified one, replace the IC
igniter.
Ignition Coil Primary Peak Voltage Inspection
Remove:
Side Covers (see Side Cover Removal in the Frame
chapter)
Lower Fairings (see Lower Fairing Removal in the Frame
chapter)
Remove the spark plug caps from the spark plugs.
Attach a good spark plugs to the removed spark plug c aps
and ground them to the engine.
NOTE
To obtain a correct measurement, the wires as well as
the wire connections must be correct. Take the volt-
age measurement with the proper cylinder compres-
sion (with the spark plugs in the cylinder head). Without
proper compression, a correct measurement cannot be
obtained.
