Home
Главная
Kawasaki
Мотоцикл
GPX250R (1987)
Инструкция по эксплуатации Страница: 138

Kawasaki GPX250R (1987) [138/248] 6 wheels tires

Содержание

Похожие устройства

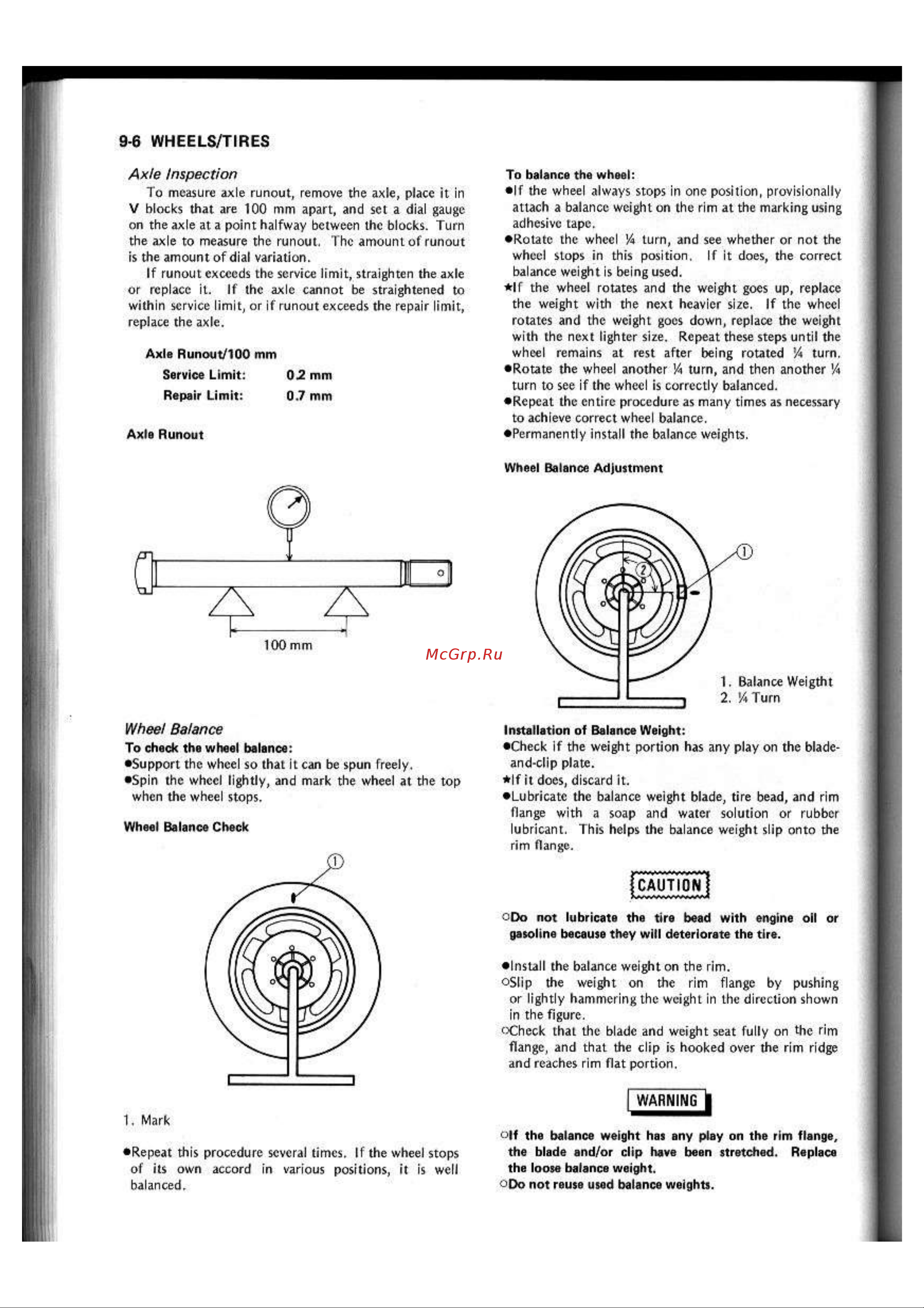

9 6 WHEELS TIRES Axle Inspection To balance the wheel To measure axle runout remove the axle place it in V blocks that are 100 mm apart and set a dial gauge on the axle at a point halfway between the blocks Turn the axle to measure the runout The amount of runout is the amount of dial variation If runout exceeds the service limit straighten the axle or replace it If the axle cannot be straightened to within service limit or If runout exceeds the repair limit replace the axle If the wheel always stops in one position provisiona attach a balance weight on the rim at the marking us adhesive tape Rotate the wheel turn and see whether or not t wheel stops in this position If it does the corr balance weight is being used lf the wheel rotates and the weight goes up repla the weight with the next heavier size If the whe rotates and the weight goes down replace the weig with the next lighter size Repeat these steps until t wheel remains at rest after being rotated turn Rotate the wheel another turn and then another turn to see if the wheel is correctly balanced Repeat the entire procedure as many times as necessa to achieve correct wheel balance Permanently install the balance weights Axle Runout 100 mm Service Limit 02 mm Repair Limit 0 7 mm Axle Runout Wheel Balance Adjustment IVhee Balance Installation of Balance Weight To check the wheel balance Check if the weight portion has any play on the blad and clip plate lf it does discard it Lubricate the balance weight blade tire bead and r flange with a soap and water solution or rubb lubricant This helps the balance weight slip onto t rim flange Support the wheel so that it can be spun freely Spin the wheel lightly and mark the wheel at the top when the wheel stops Wheel Balance Check oDo not lubricate the tire bead with engine oil gasoline because they will deteriorate the tire Install the balance weight on the rim oSlip the weight on the rim flange by pushi or lightly hammering the weight in the direction show in the figure oCheck that the blade and weight seat fully on the r flange and that the clip is hooked over the rim ridg and reaches rim flat portion WARNING 1 Mark Repeat this procedure several times If the wheel stops of its own accord in various positions it is well balanced Off the balance weight has any play on the rim flang the blade and or clip have been stretched Replac the loose balance weight oDo not reuse used balance weights

Скачать
