3-38
To Check/Control Jobs in Progress (Job Status Screen)
The Job Status Screen allows you to perform the following functions.
• Confirm machine status • Change order of reserve job
• Delete reserve job • View previous job list
• View noncomplete job list
Not only the copy reserve jobs but the print jobs made in Printer mode can
also be checked and controlled on this screen.
1. Touch STATUS on the Basic Screen.

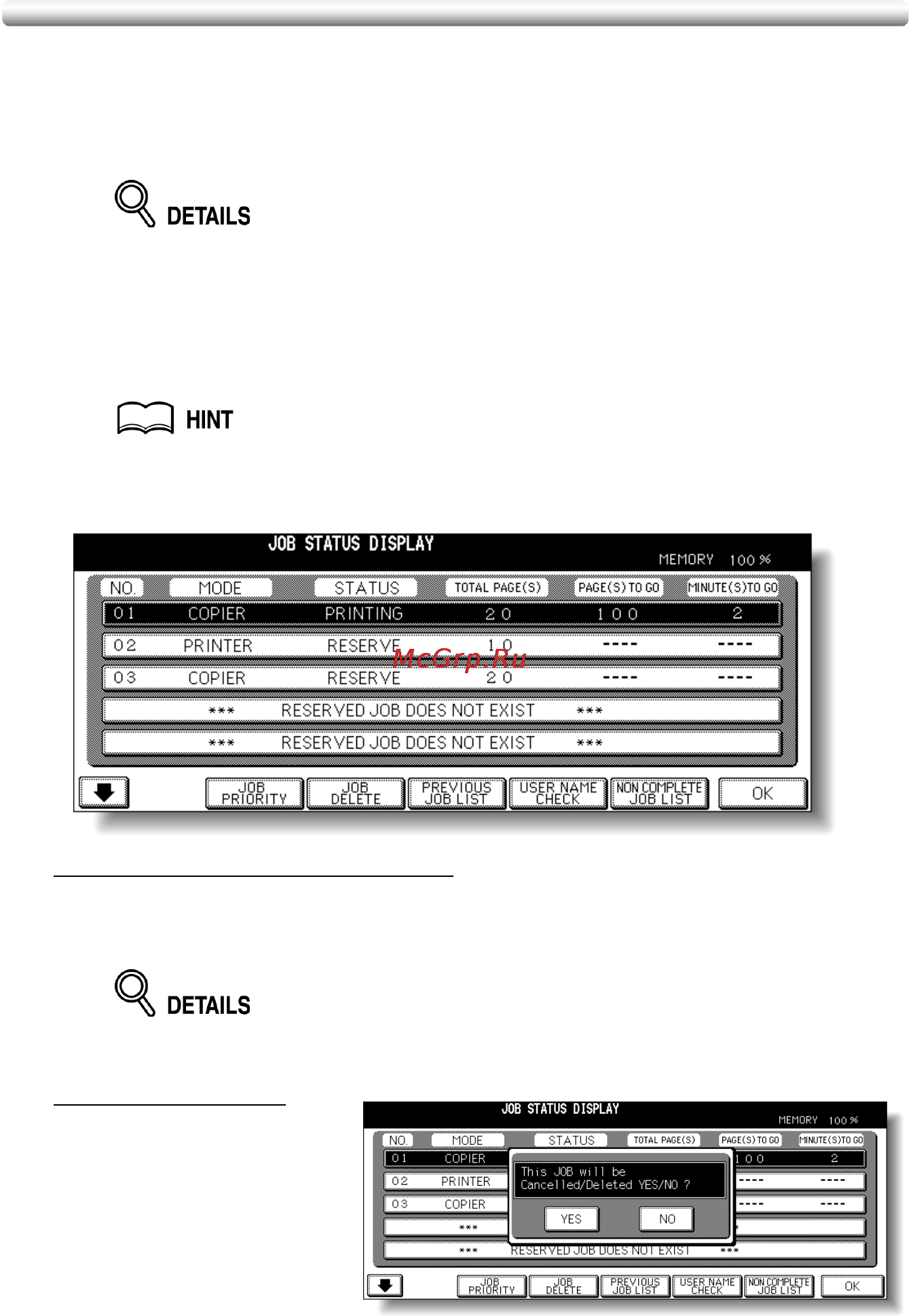

The Job Status Screen will be displayed.
Check the current status of the machine.
See p. 3-40 for details of the screen.
2. Perform the desired setting on the screen.
To change the order of reserve job:
Touch to highlight the desired reserve job key, then touch JOB PRIORITY.
The highlighted reserve job is advanced by one in printing order unless the
job preceding the selected one is already in progress.
If more than six jobs are entered, use the page down arrow key at the lower
left corner of the screen to scroll to the desired job.
To clear reserve job:
Touch to highlight the
desired reserve job key,
then touch JOB
CLEAR.
Touch YES to clear the
highlighted reserve job,
or NO to cancel.
