Scanning Thin/Thick Originals in RADF (Original Thickness)
Use the Thin or Thick original mode with the document feeder to copy thin or thick
originals. Otherwise, the originals may be misfed in the document feeder.
Specifications for Original Thickness
❒ Use RADF.
❒ Incompatible Copying Conditions: None

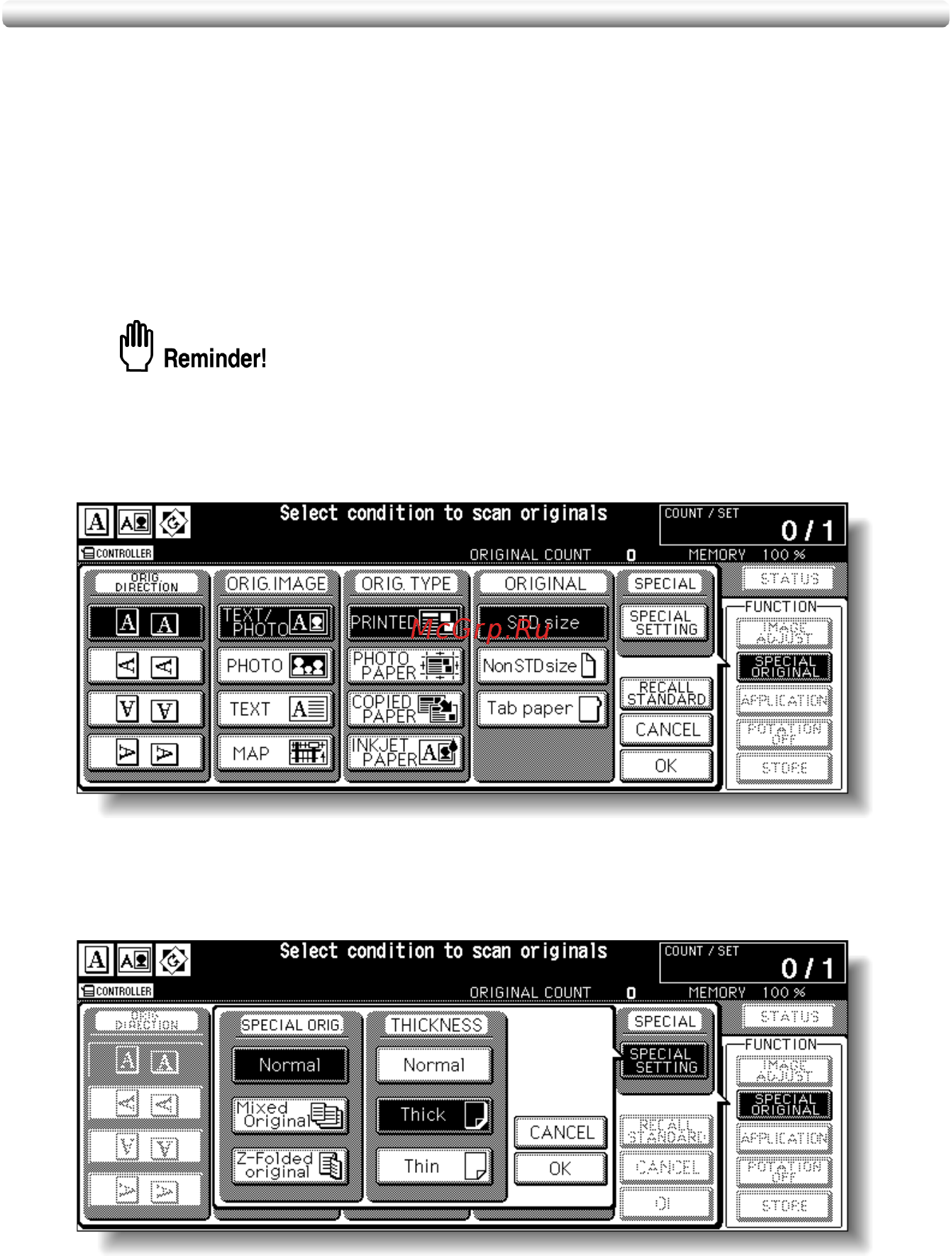

1. Touch SPECIAL ORIGINAL on the Basic Screen.
The Special Original popup menu will be displayed.
When starting a new copying job, be sure to close the RADF securely, then
press [AUTO RESET].
2. Touch SPECIAL SETTING.
The Special Setting popup menu will be displayed.
3. Touch Thick or Thin as required, then touch OK.
The Special Original popup menu will be restored.
4. Touch OK to return to the Basic Screen.
5. Select additional copying features, as desired.
