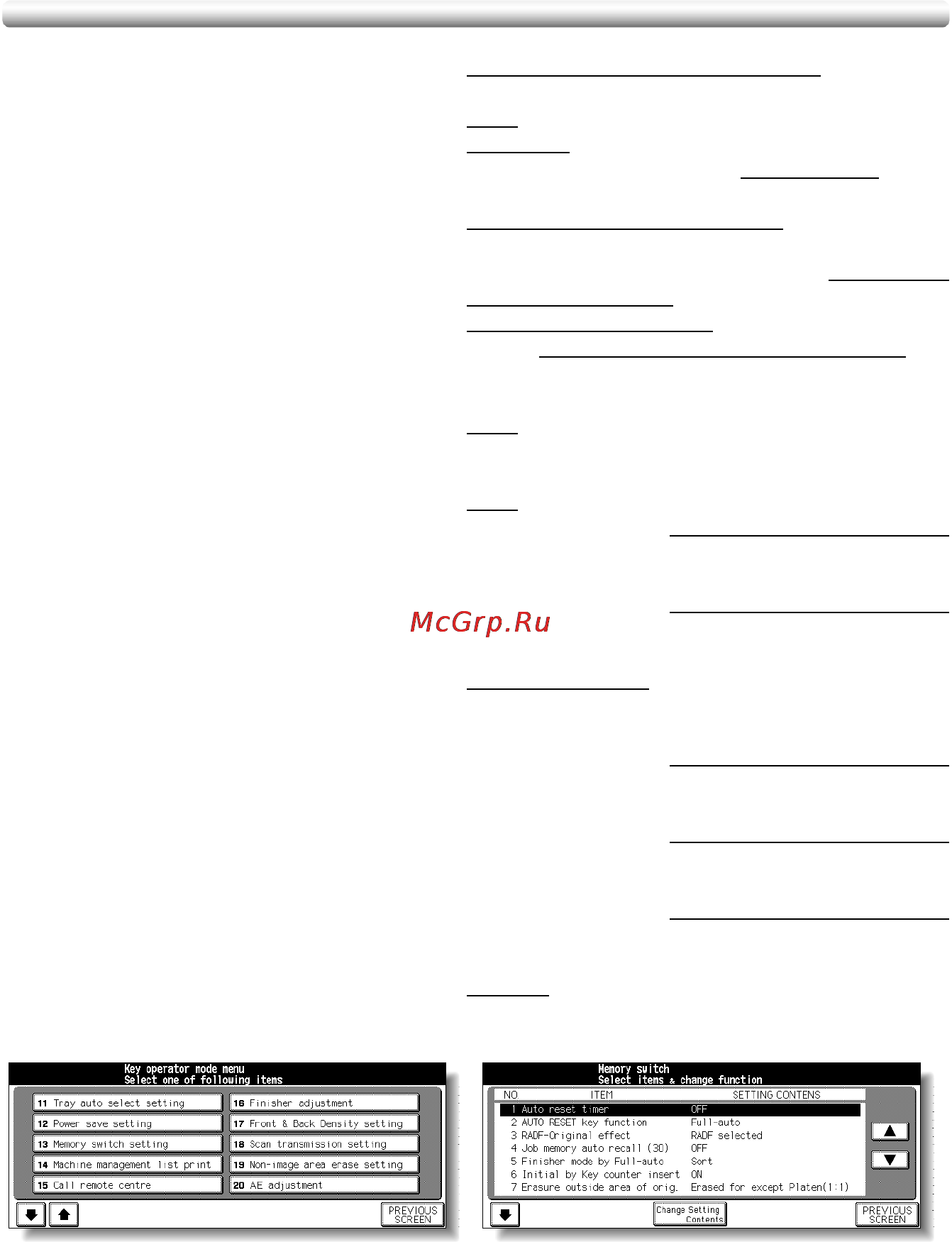

[13] Memory Switch Setting (continued)
14-38
No. 33: Reserve copy function
Reserve copy by folder select / Reserve
copy by original set
No. 34: Change page no. pos. (booklet) OFF / ON (Outside page numbering)
No. 35: Trimmer (STD/Non STD size) STD size / Non STD size
No. 36: Timer which prohibits Print
OFF / 15 seconds / 30 seconds / 60
seconds / 90 seconds
No. 37: Bookmark function ON (It is cancel every JOB) / ON (It is not
cancel every JOB) / OFF
No. 38: Delete of overlay image Permission (Delete/Overwrite) / Prohibition
(Delete/Overwrite)
No. 39: Orig. direction/Binding mode It is cancel every JOB / It is not cancel
No. 40: SCREEN (Line Screen) OFF / HighReso:Use SmoothTone:Use /
HighReso:Use SmoothTone/NoUse /
HighReso:NoUse SmoothTone:Use
No. 41: SCREEN (Dot Screen) OFF / HighReso:Use SmoothTone:Use /
HighReso:Use SmoothTone/NoUse /
HighReso:NoUse SmoothTone:Use
No. 42: Side 2 drum clock adjust mode OFF / ON
No. 43: Screen (FullColour - Text/Photo)
HighCompression / LineScreen-HighResolution
/ LineScreen-SmoothTone / DotScreen-
HighResolution / DotScreen-SmoothTone
No. 44: Screen (FullColour - Photo)
HighCompression / LineScreen-HighResolution
/ LineScreen-SmoothTone / DotScreen-
HighResolution / DotScreen-SmoothTone
No. 45:
Screen (Monochrome - Text/Photo) HighCompression / LineScreen-HighResolution
/ LineScreen-SmoothTone / DotScreen-
HighResolution / DotScreen-SmoothTone
No. 46: Screen (Monochrome - Photo)
HighCompression / LineScreen-HighResolution
/ LineScreen-SmoothTone / DotScreen-
HighResolution / DotScreen-SmoothTone
No. 47:
Screen (MonoColour - Text/Photo)
HighCompression / LineScreen-HighResolution
/ LineScreen-SmoothTone / DotScreen-
HighResolution / DotScreen-SmoothTone
No. 48: Screen (MonoColour - Photo)
HighCompression / LineScreen-HighResolution
/ LineScreen-SmoothTone / DotScreen-
HighResolution / DotScreen-SmoothTone
No. 49: Colour gamut Normal / Wide
Key Operator Mode Screen
Memory Switch Setting Screen
