4-2
Making Sample Copy (Proof Copy)
Use Proof copy to produce a sample of the copied set before making multiple copies.
This is a convenient and cost effective way of viewing the results of the following
copying selections.
• Copying conditions using Store mode • Booklet
• Sheet/Cover Insertion • Image Insert
• Chapter • Dual Page
• Combination • Program Job
Specifications for Proof Copy
❒ Proof copy is available when using RADF or Platen store mode for multiple
originals.
❒ Proof copy is not compatible with Group or Rotation group output mode.
1. Select the desired copy conditions and enter the desired
print quantity.
When starting a new copying job, be sure to close the RADF securely, then
press [AUTO RESET].
2. Position original(s).
See p. 3-4 to p. 3-9 for details on positioning originals.

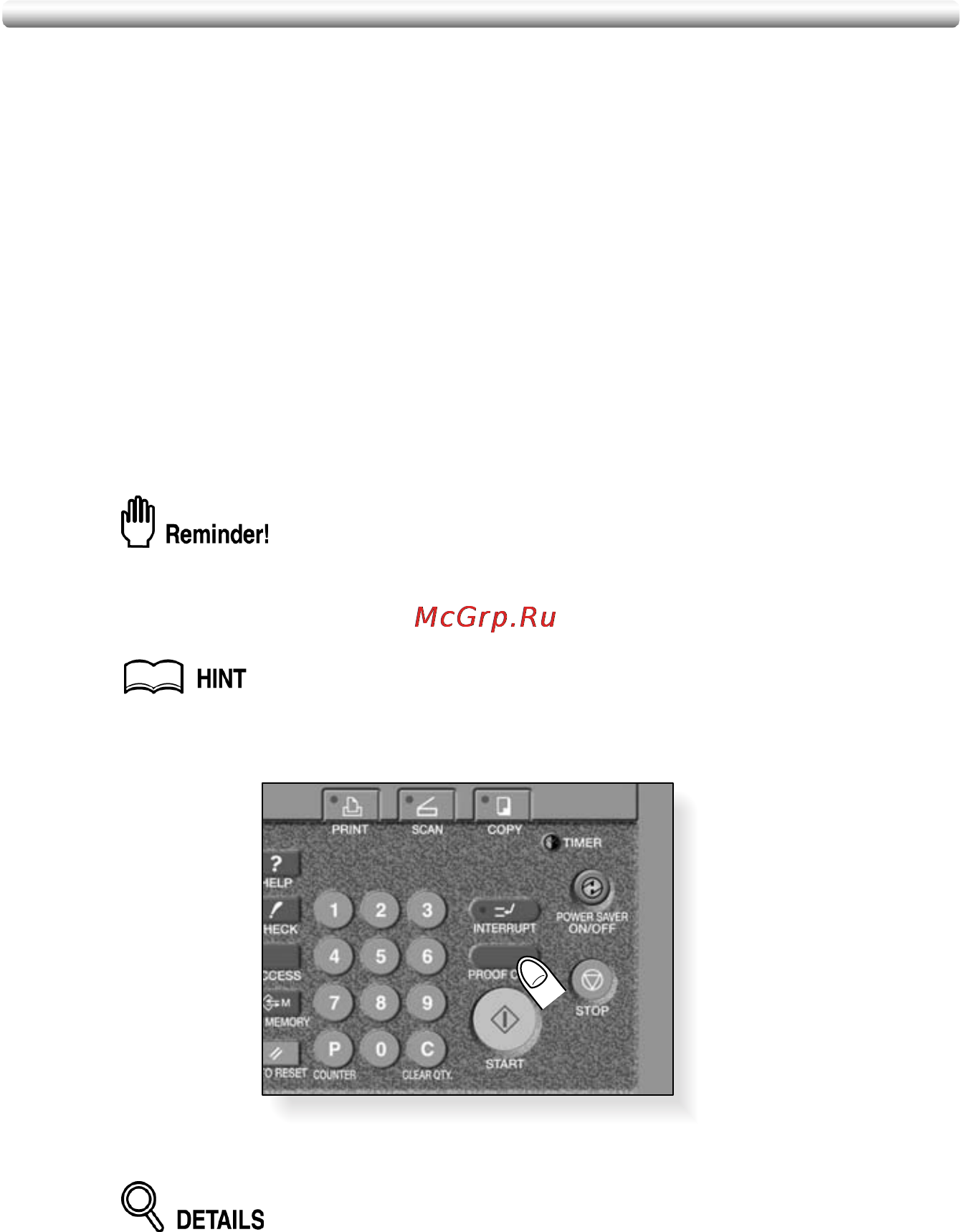

3. Press [PROOF COPY] on the control panel.
A sample copy will be output, and the Check Screen will be displayed.
• Press [STOP] to suspend the proof copying. In this case, the scanned
image data will not be deleted from memory.
• You cannot change or release selections that appeared dimmed after proof
copying.
