Transmitting/Editing Machine Setting File (continued)
11-27
DETAILS: To Edit the Machine Setting File
• Save the file as a text.
• Begin the file with a specified tag. (ex. #EKC_TAB)
• A line should be 300 bytes or less.
• The file size should be 100,000 bytes or less.
• The line that begins with “#” is a comment.

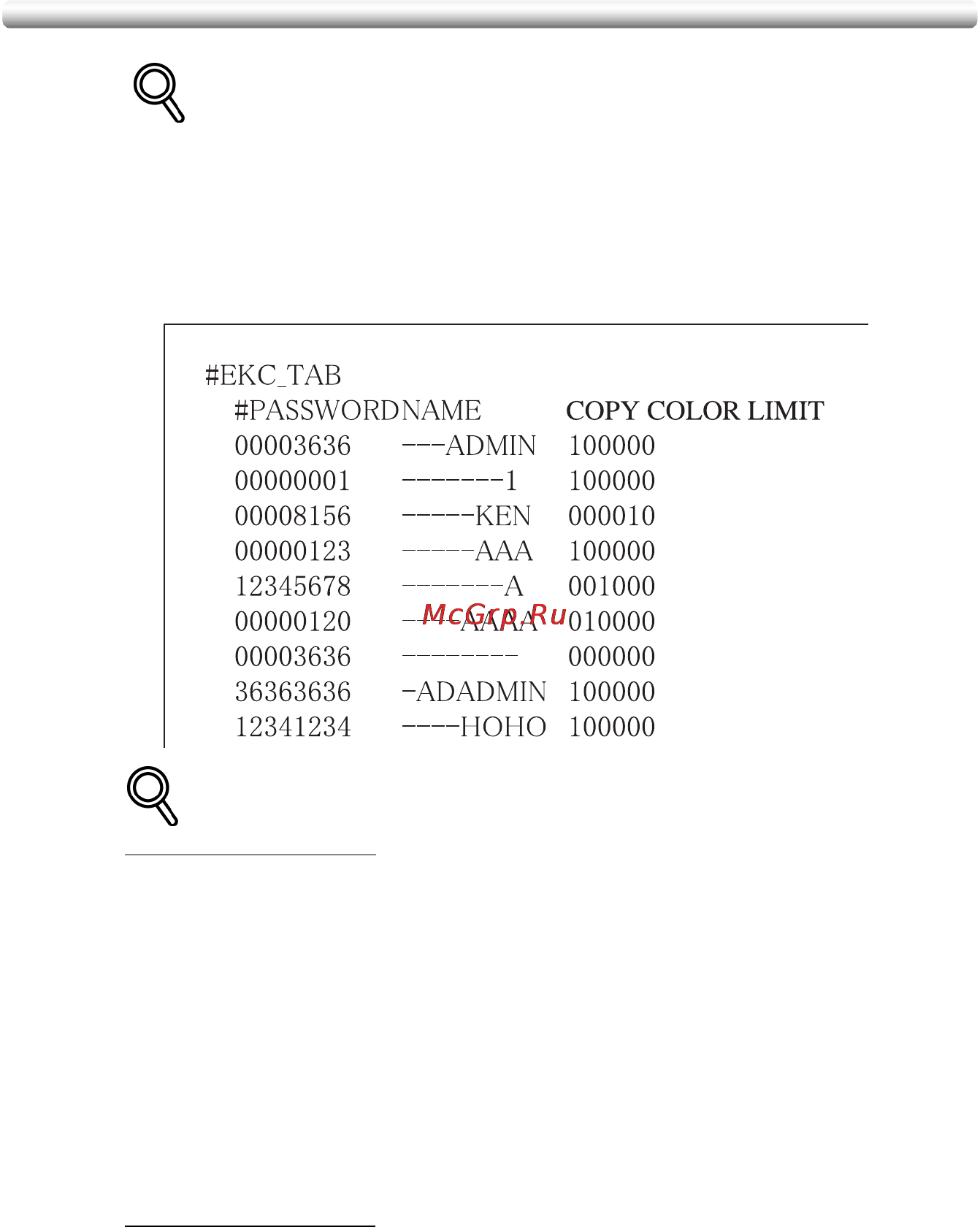

ex. Machine setting file of an E.K.C. data
DETAILS: Specifications for Each Machine Setting File Type
E.K.C. data setting file:
• Begin the file with #EKC_TAB.
• Max. 1,000 files can be edited.
• A line should include PASSWORD, NAME, COPY COLOUR LIMIT, COPY
MONO LIMIT, PRINT COLOUR LIMIT, PRINT MONO LIMIT, LIMIT
TARGET, COLOUR PERMISSION, and MONO PERMISSION, separated
by a tab.
• Use up to 8 digits numbers (0 - 9) only to specify PASSWORD.
• Use numbers, alphabets (capital letters only), and four symbols: (, ), -, and
/ only to specify NAME.
• Use up to 6 digits numbers (0 - 9) only to specify LIMIT (0 - 999,999).
• Specify 0 for Common set, or 1 for Separate set in LIMIT TARGET.
• Specify 0 for permission, or 1 for prohibition in “COLOUR PERMISSION”
and “MONO PERMISSION”.
E-mail data setting file:
• Begin the file with #IP_EMAIL.
• Max. 450 files can be edited.
• A line should include ENTRY NAME and E-MAIL ADDRESS, being
separated by a tab.
• ENTRY NAME should be 18 bytes or less.
• E-MAIL ADDRESS should be 64 bytes or less.
