Storing Job Conditions (Job Memory: Job Store) (continued)
4-12

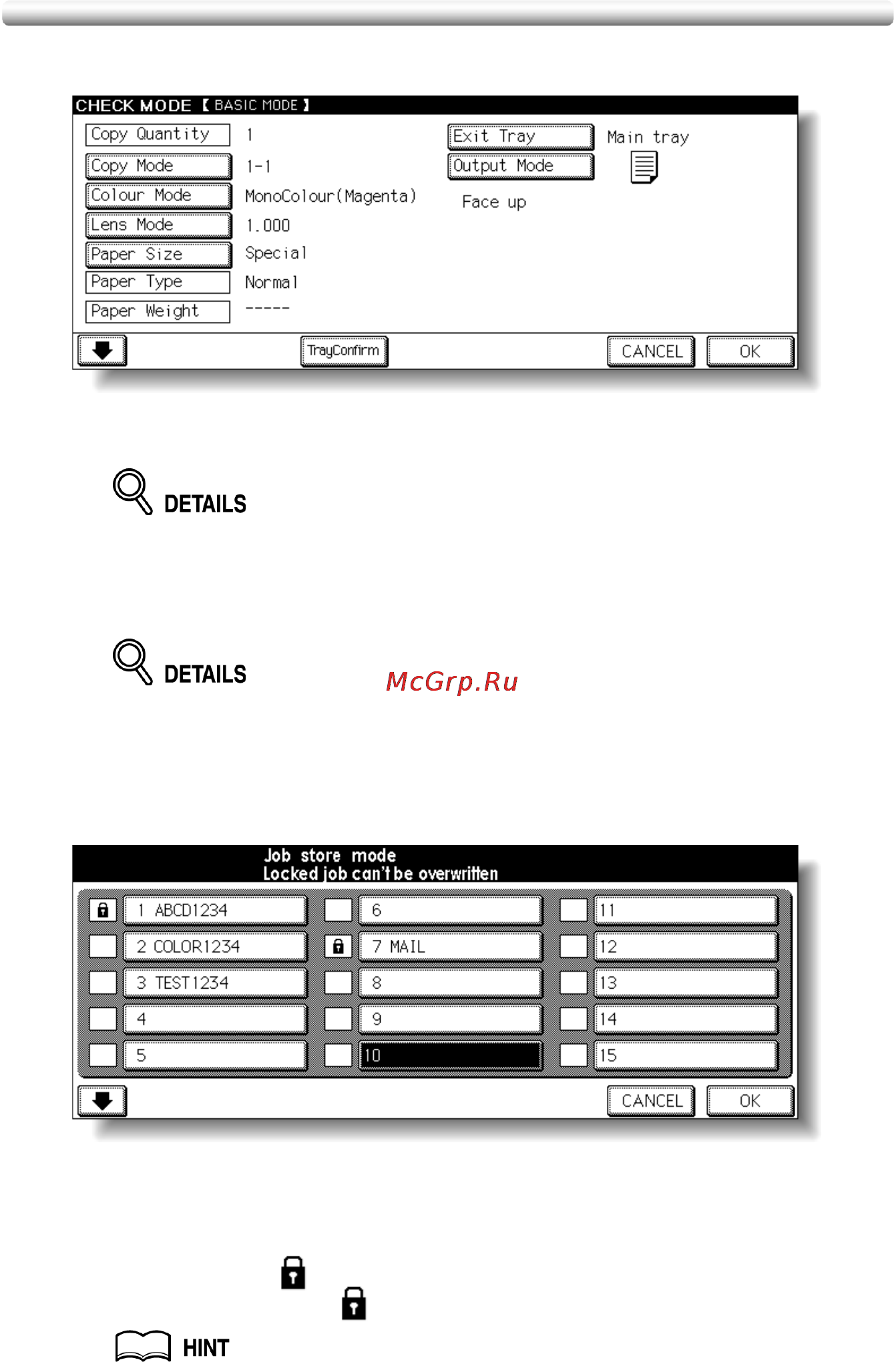

4. Review the settings on the Job Store Check Screen.
Touch the lower arrow key to scroll to the following pages.
Check that the selections made in step 1 are correctly entered.
If any correction is required, touch CANCEL to return to the Basic Screen.
Make new selections, then restart the Job Store operation from step 2.
5. Touch OK.
The Job No. Selection Screen will be restored.
To suspend the storing job after step 6, press [AUTO RESET].
Job Memory mode will be cancelled, and the Basic Screen will return from any
screen.
6. Touch to highlight one of the keys numbered from 1~30 to store
the job under that number.
The screen displays 15 job number keys. The arrow key at the lower left
corner can be used to scroll to the next/previous page.
A blank key indicates that no job is stored under that key, and a named job
without a lock icon ( ) displayed can be overwritten.
The key with a lock icon ( ) displayed is locked and cannot be selected.
To lock or unlock a job, and to delete a locked job, see p. 14-20.
