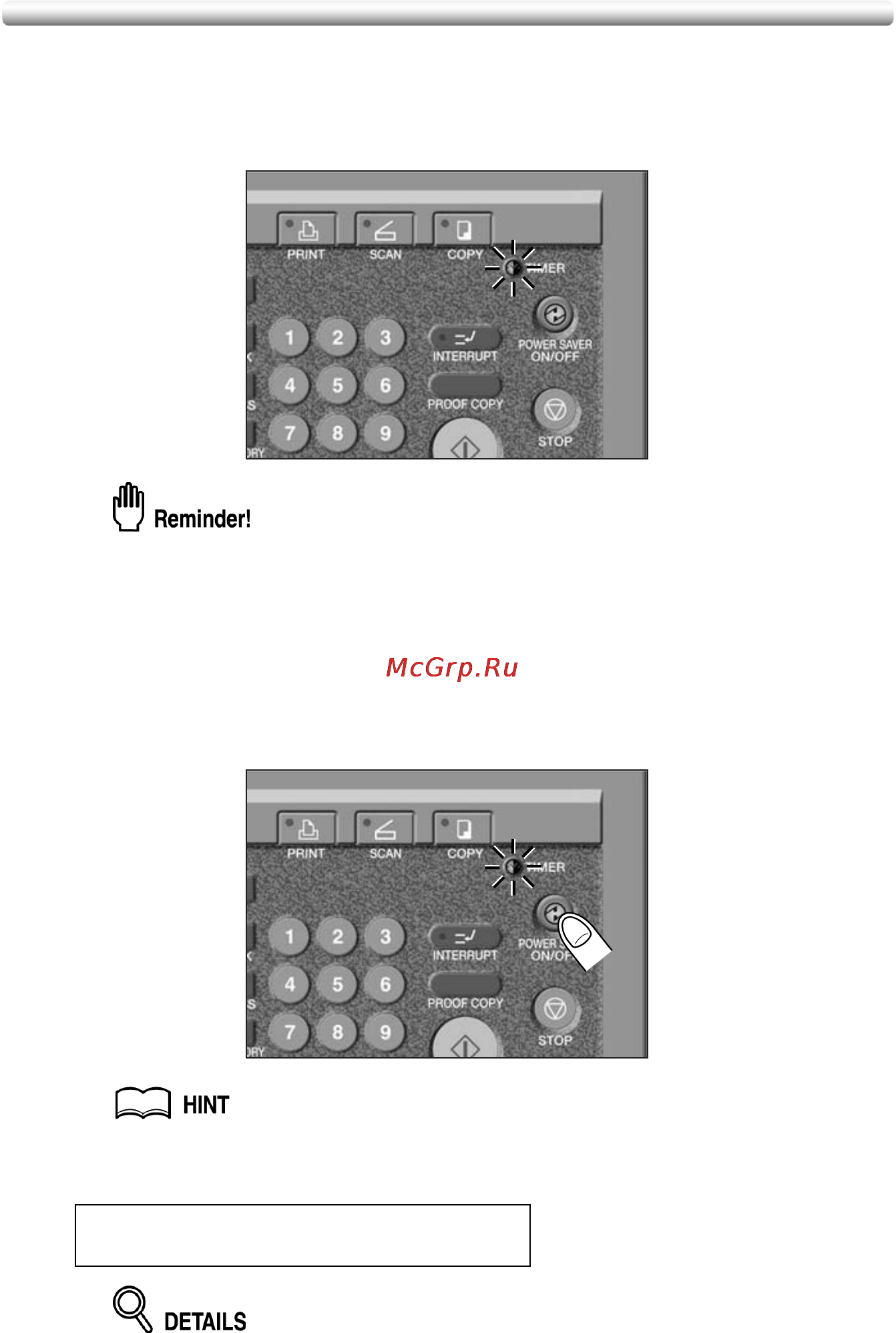

Programmed Shut-Off (Weekly Timer)
The Weekly Timer function turns a copier on and off at the time specified by the Key
Operator.
This function is not factory-set. When the copier is using the Weekly Timer function,
the TIMER indicator on the right side of the control panel is lit.
IMPORTANT: WHEN THE TIMER INDICATOR IS LIT, THE COPIER WILL
TURN OFF AUTOMATICALLY. DO NOT TURN IT OFF BY PRESSING POWER
SWITCH.
When the TIMER indicator light is on and other indicators are off, copying is
unavailable due to the Weekly Timer function.
However, copying can be available by using the following procedure.
1. Press [POWER SAVER ON/OFF] on the control panel.
For details of the Weekly Timer function, see p. 14-26 to p. 14-33.
The Basic screen will be displayed along with the message shown below.
The machine power will be turned off automatically 5 minutes after this
message is shown if a password is not entered.
Timer interrupt mode
Enter password
