Machine Configuration (continued)
2-6

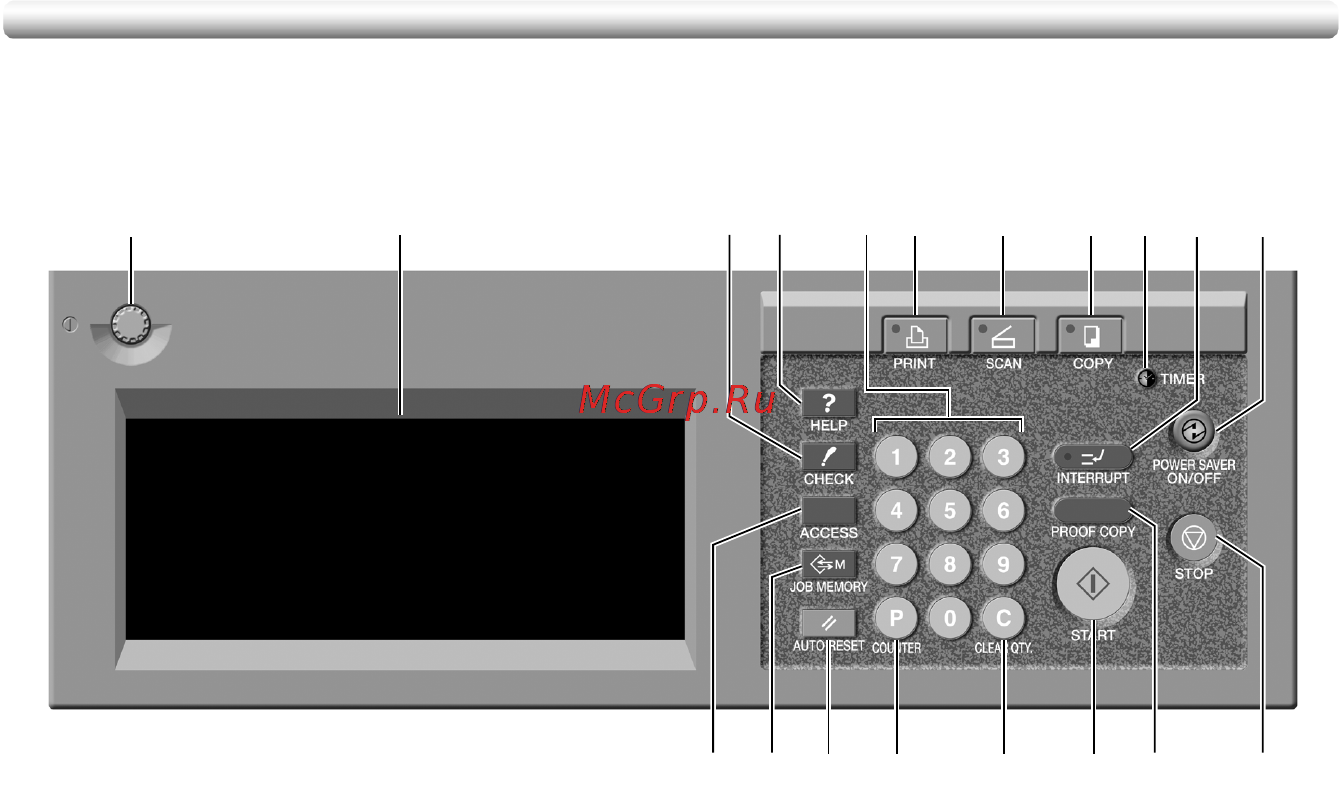

Control Panel Layout
1 CONTRAST ADJUSTMENT DIAL can be turned to adjust the touch panel
contrast.
2 LCD TOUCH SCREEN displays machine and copying status, help information,
interactive screens, and touch keys for selecting all functions.
3 CHECK displays a screen showing all settings that are selected for the current
job.
4HELP displays a screen with help for the currently selected function, or to
access the Key Operator Mode Screen.
5 KEYPAD enters numeric values.
6 PRINTER switches the machine operation mode to printer. (This key does not
function at present.)
7 SCANNER switches the machine operation mode to scanner.
8COPY switches the machine operation mode to copy.
9TIMER lights when the timer function is set.
10 INTERRUPT stops copying in progress to allow copying from the platen glass.
11 POWER SAVER ON/OFF activates power-saving mode for times when the
copier is inactive, or activates Timer Interrupt mode when Weekly Timer
function is active.
12 STOP stops the copying sequence; deletes the stored memory.
13 PROOF COPY outputs a single set of copies to confirm whether the current
settings are selected properly.
14 START activates copying or scanning.
15 [C] (CLEAR QTY.) allows resetting of print quantity.
16 [P] (COUNTER) displays the Counter Screen or accesses programming modes
for setting special functions.
17 AUTO RESET restores copier to automatic mode settings or to Key Operator
settings.
12 45671110983
121319 18 14151617
