Checking Copy Count (continued)
13-19

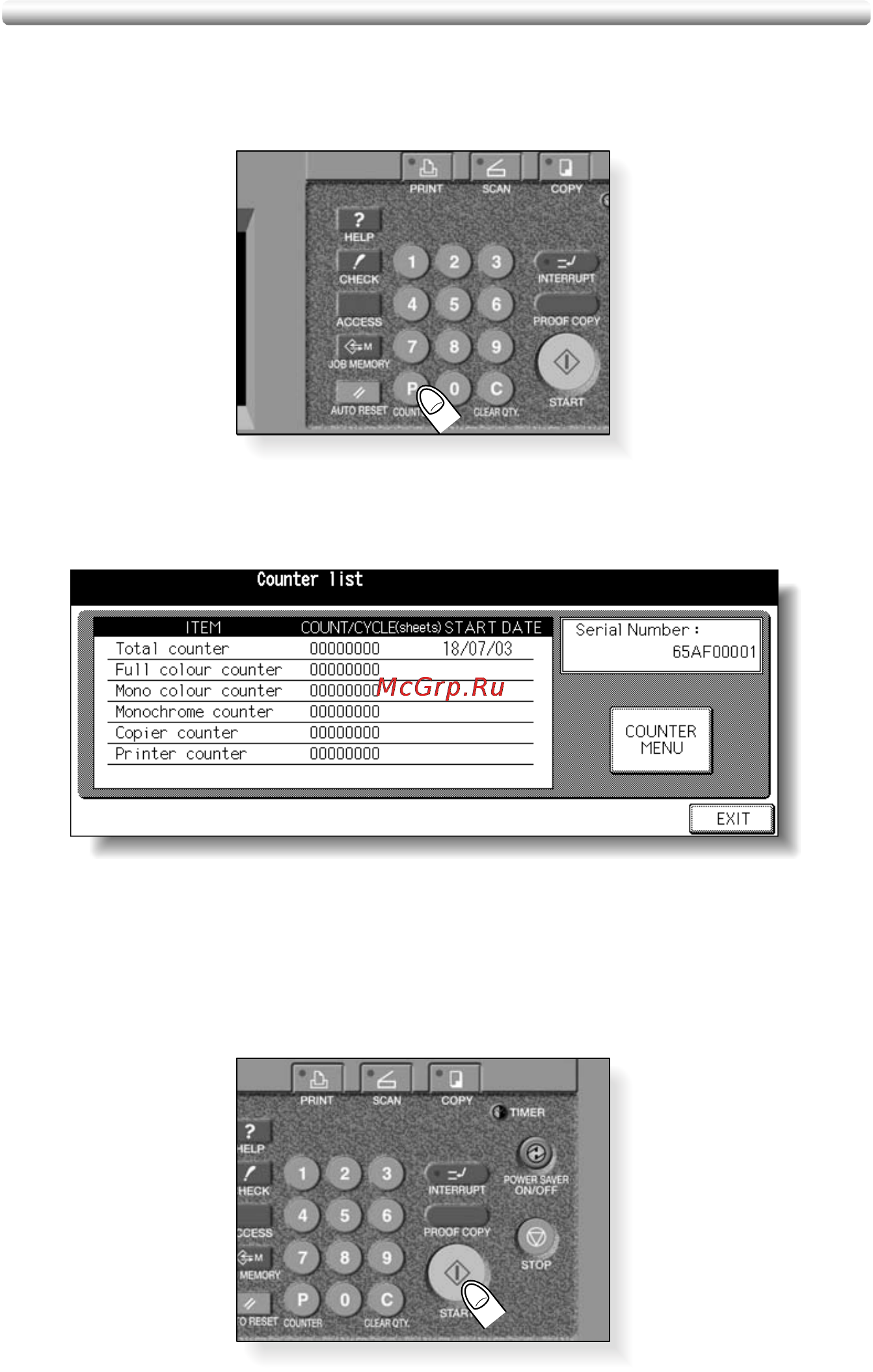

To Print the Counter List
1. Press [P (COUNTER)] on the control panel.
The Counter List Screen will be displayed.
2. Touch COUNTER MENU.
The Basic Screen will be displayed.
3. Touch the desired tray key to select the paper size.
4. Press [START].
The Counter list will be printed out, and the Management list mode will be
released automatically.
