Empty Waste Basket of PK-5 Punch Kit (continued)
13-11

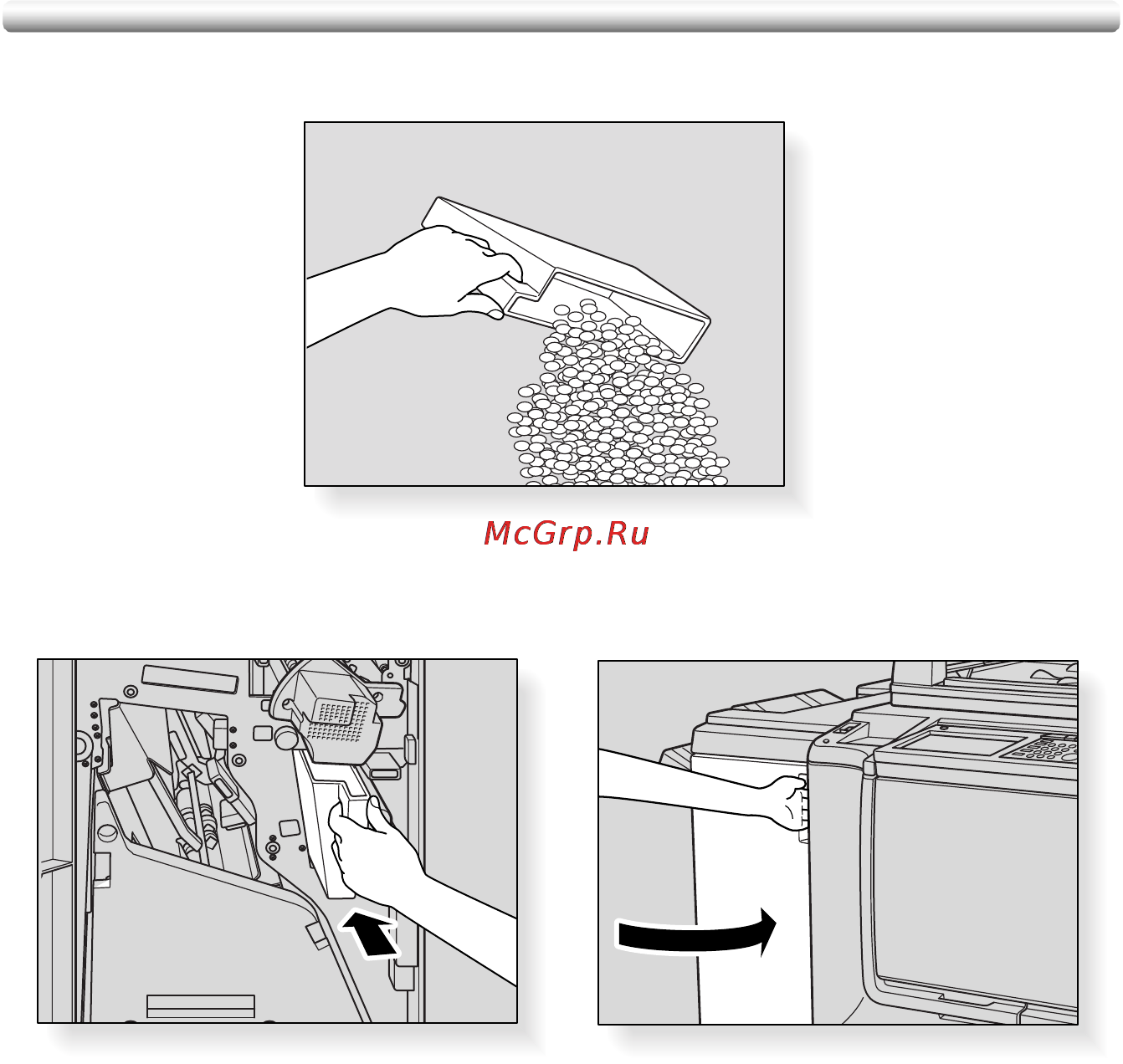

3. Empty the waste basket.
4. Return the waste basket to its original position, then close the
Finisher door securely.
