Regulations (continued)
1-14
Internal Laser Radiation
Maximum radiation power: 2.02 mW
Wavelength: 645-660 nm
This product employs a Class IIIb Laser Diode that emits an invisible laser beam.

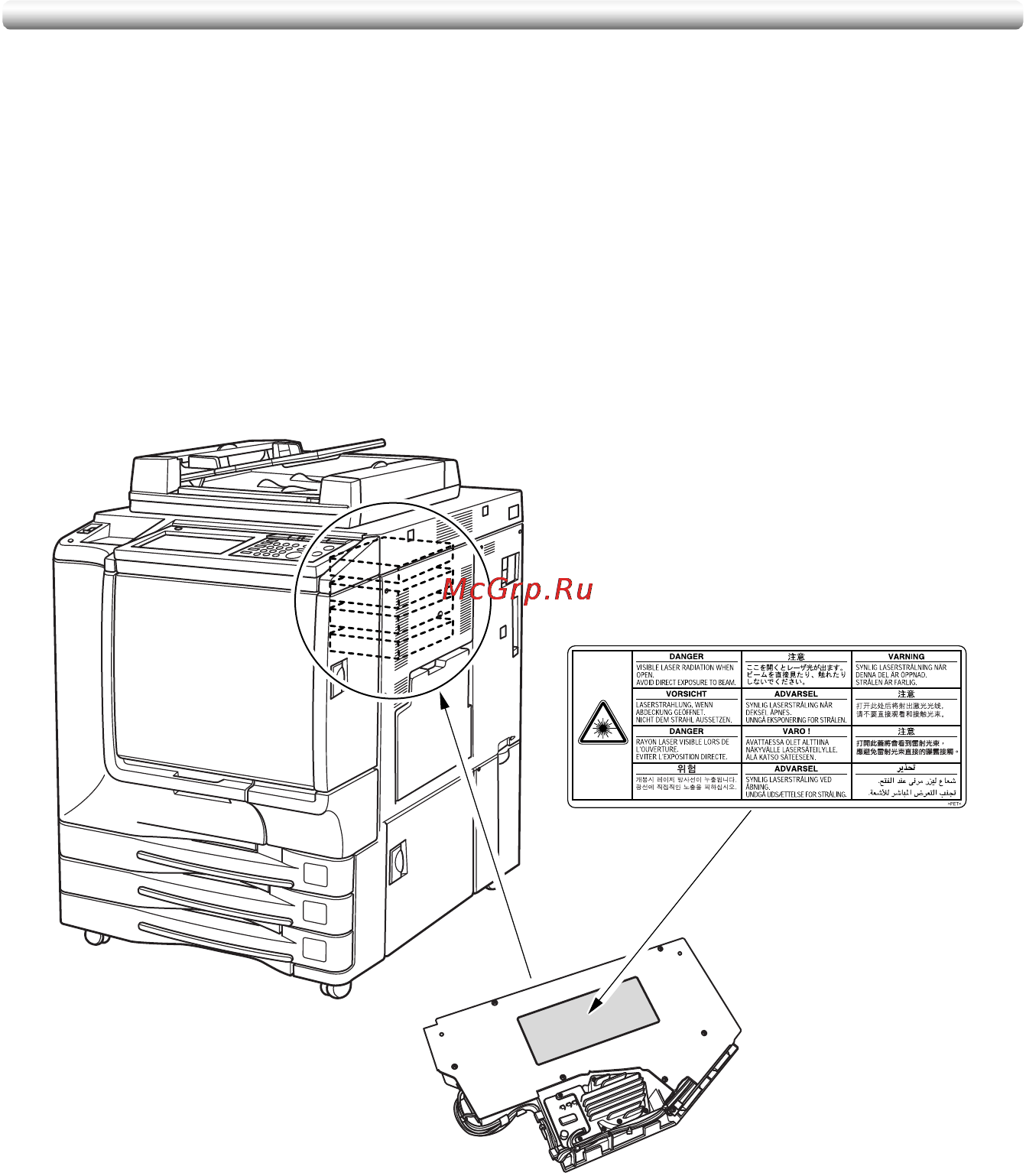

The Laser Diode and Scanning Polygon Mirror are incorporated in the print head
unit.
The print head unit is NOT A FIELD SERVICE ITEM.
Therefore, the print head unit should not be opened under any circumstances.
x 4
