[9] Weekly Timer (continued)
14-29
[2] Timer Setting
Use this function to set the On/Off times in hours and minutes for each day of the
week or set the collective time for the entire week, i.e., the same On/Off time for each
day.
Procedure
1 Touch [2] Timer setting on the Weekly Timer Setting Menu Screen to display the
Weekly Timer On/Off Time Setting Screen.
2 When the screen is displayed, the ON-time of Monday is always highlighted.
Enter a 2-digit ON-hour and a 2-digit ON-minute using the touch screen keypad,
and then touch SET. Monday OFF-time will be highlighted.
Repeat this procedure to set all the On/Off times from Monday through Sunday.
NOTES:
• The time is set in terms of the 24 hour clock, where hour [01] is the first
hour after midnight; and hour [24] is midnight. For example, 6 a.m. is 06:00
hours; 6 p.m. is 18:00 hours.
• If wrong number is entered, continue by entering the correct time.
•Touching SET repeatedly will shift the input section from Monday ON,
Monday OFF, Tuesday ON, Tuesday OFF. When setting Sunday OFF-time,
Monday ON-time is highlighted again.
• If ON-time and OFF-time are the same, power will not go on.
• If the setting is 00:00~00:00, you will not be able to set the copiers off/on
condition for specific days.
• Be sure to enter the ON/OFF-time for a day off also, so that you can specify
the machine working days on the Weekly Timer Working Day Individual/
Collective Setting Screen.
3 To set the ON/OFF time collectively for more than one day of the week, touch
Block timer setting to display the Weekly Timer On/Off Time Collective Setting
Screen. When you open this screen, the ON and OFF times are always set at
00:00~00:00.
Touch to highlight the day(s) of the week to be set. More than one can be
selected at a time.
Enter the ON-time and OFF-time using the touch screen keypad, and then touch
SET after each entry. See step 2 for details in entering the time.

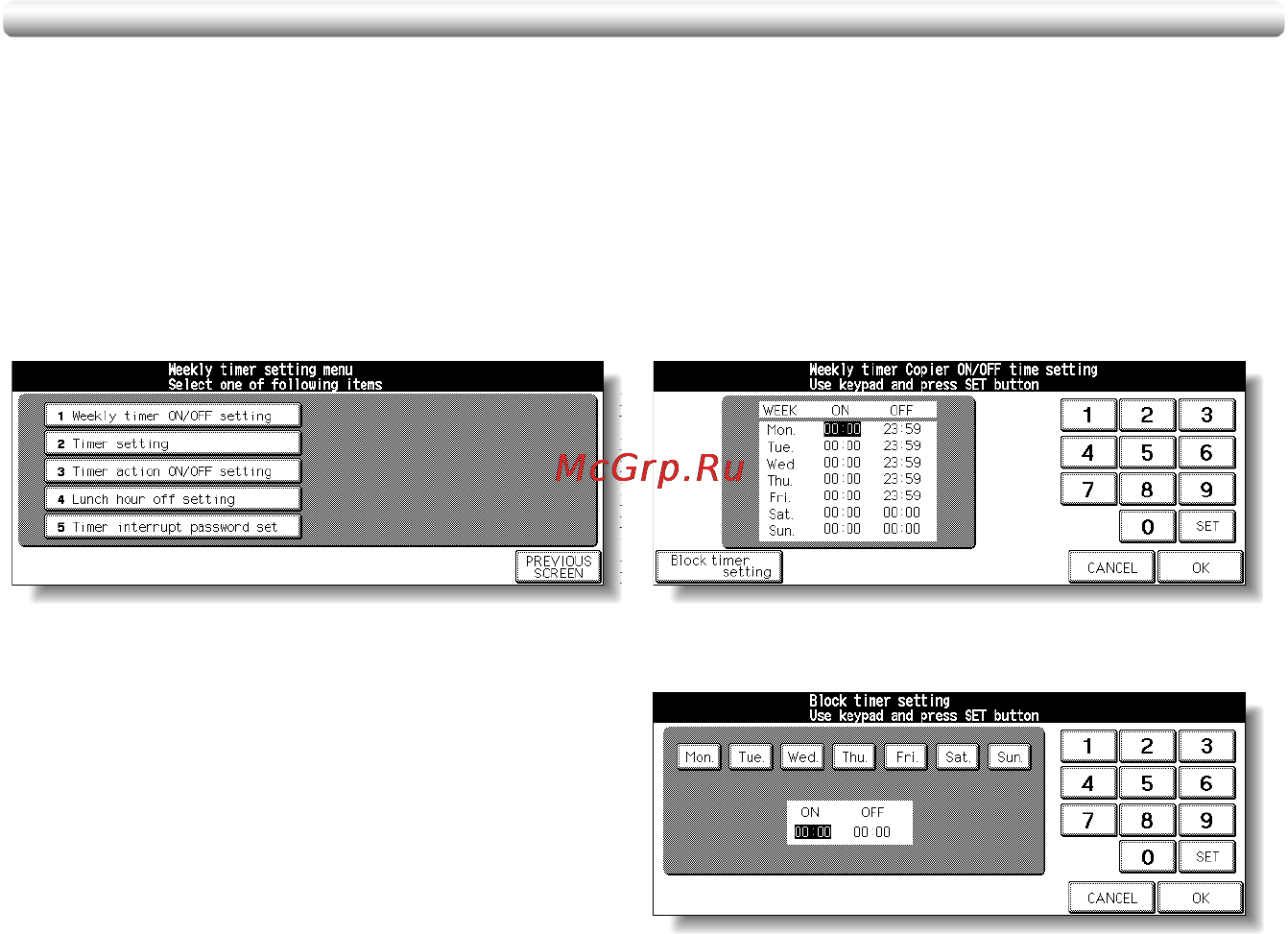

Weekly Timer Setting Menu Screen
Weekly Timer On/Off Time Setting Screen
Weekly Timer On/Off Time Collective Setting Screen
