10-20
Dividing an Image into Right and Left Pages (Dual Page)
The Dual Page mode performs image division on the original image. Use this
function to copy an open book or a ledger sheet onto two A4 sheets in 1-1 or 2-1
mode, or onto the front and back sides of one A4 sheet in 1-2 or 2-2 mode.
The following three modes can be selected from the Dual Page Screen.
• Facing Pages mode: Image division starts from the first scan.
• Front Cover+Facing Pages mode: Image division starts from the second scan,
after the first scan copies normally.
• Front/Back Cover+Facing Pages mode: Image division starts from the third
scan, after the first and second scan copy normally.
Specifications for Dual Page
❒ Store mode is automatically selected.
❒ Paper size: A4
❒ Incompatible Conditions: APS, AMS, Rotation Sort, Rotation Group, Fold/
Stitch&Fold/Trimming (available with Booklet selected), Mixed Original, Tab
Paper, Sheet/Cover Insertion, Combination, Image Insert, Program Job, Multi-
Page Enlargement, Repeat, Reduce & Shift in Image Shift, Overlay, Storing
Image in Overlay Memory
1. Touch APPLICATION on the Basic Screen.
When starting a new copying job, be sure to close the RADF securely, then
press [AUTO RESET].

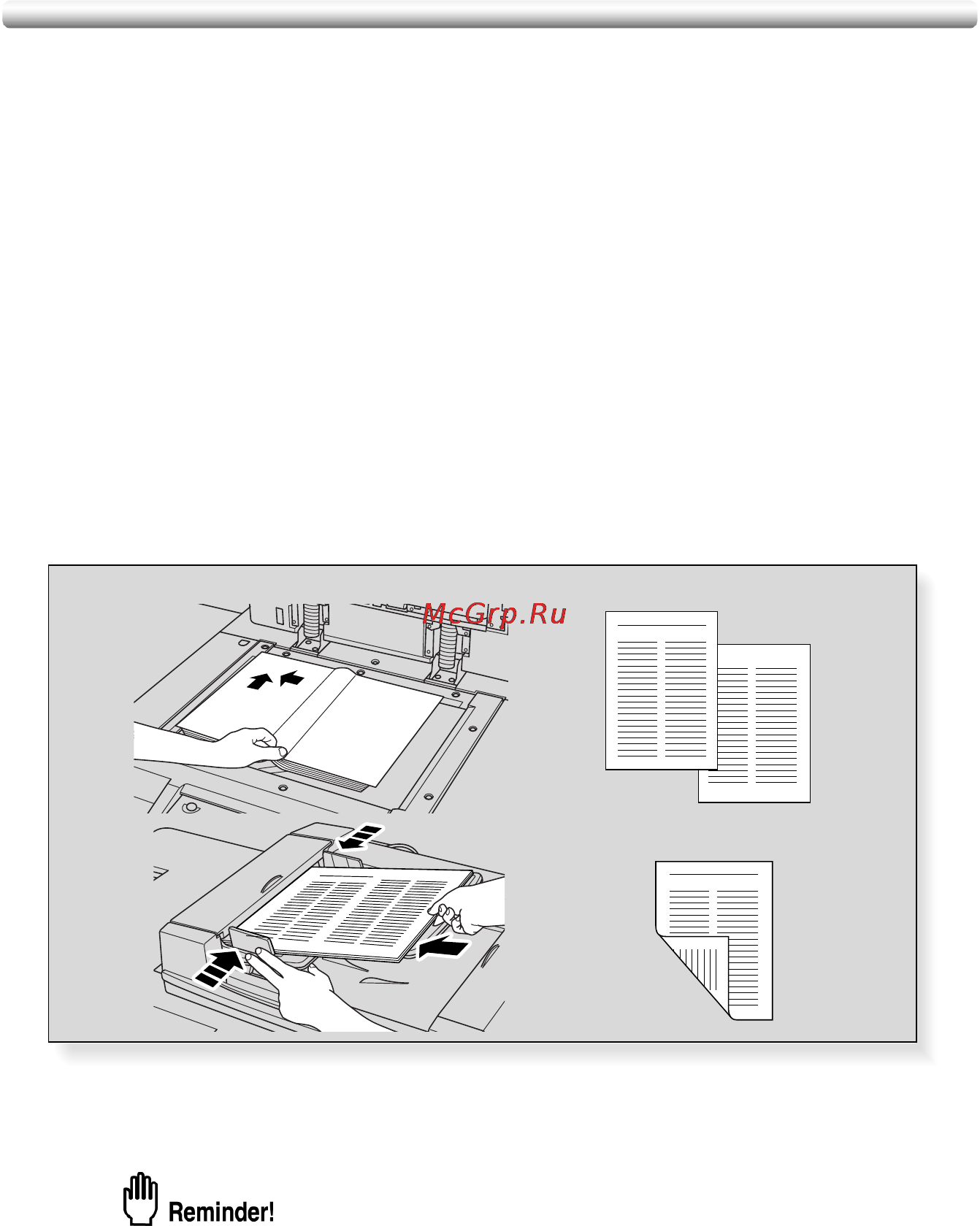

Set original
1-2 / 2-2 mode
1-1 / 2-1 mode
