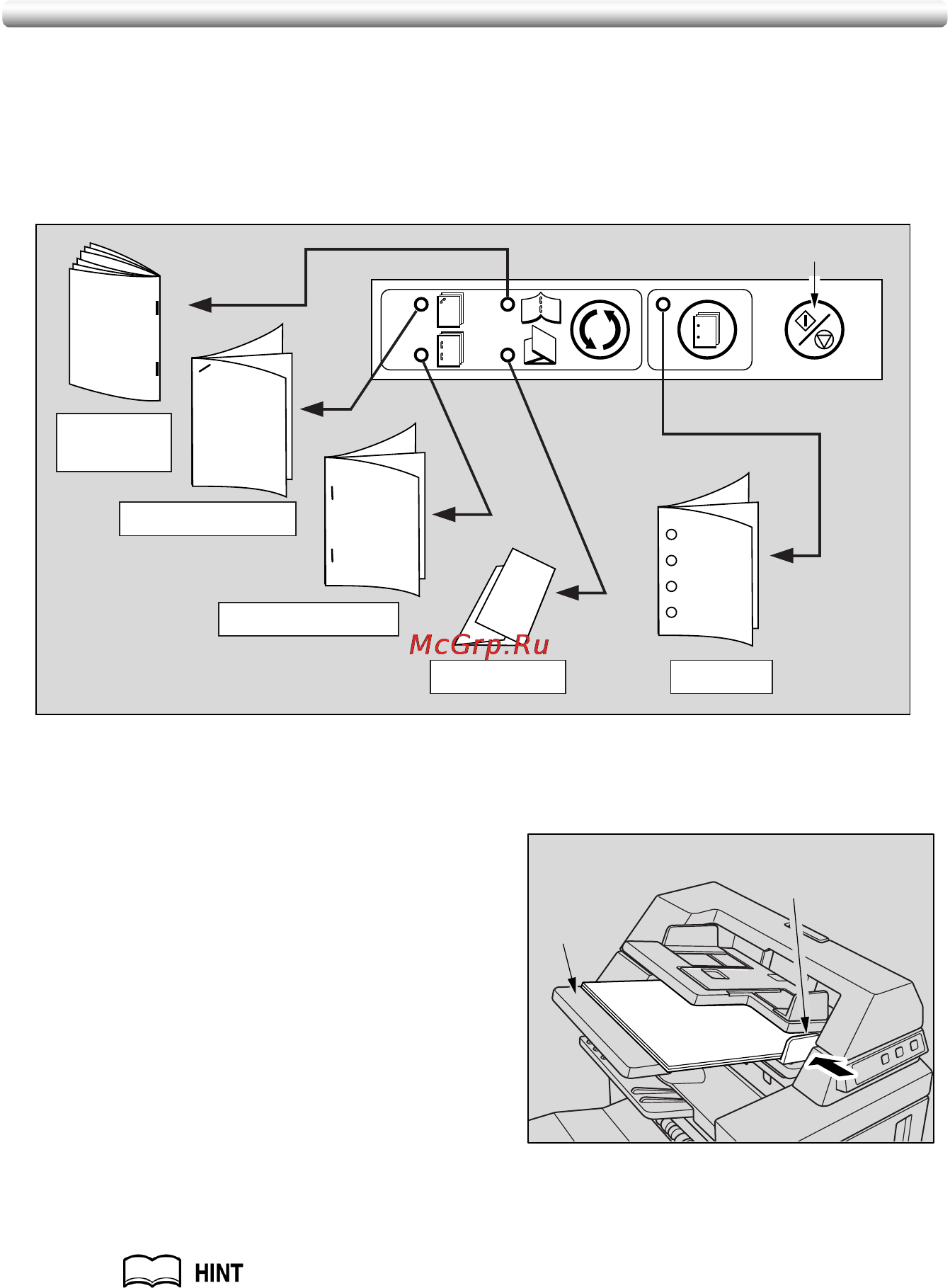

Off-Line Finishing (continued)
8-23
Specifications for Manual Three-Fold
❒ Paper size: A4R, 8.5”x11”R
❒ Paper weight: 60 ~ 105 g/m
2
❒ Three-fold capacity: 3 sheets
❒ Output tray: Booklet tray
1. Place a set of paper to be
finished into the lower tray of
the cover inserter, as
described below for each
mode.
• 1 oblique staple / 2 parallel staples:
FACE UP
• Punch: FACE UP
• Stitch & Fold:
FACE UP for the outside of the
finished set
• Three-Fold:
FACE UP for the outside of the folded set
Align the guide plate. The indicator light of Start/Stop button will turn green.
Refer to the specifications on previous page for available paper size and
capacity in each mode.
Stitch &
Fold
Three-Fold Punch
1 oblique staple
2 parallel staples
Start/Stop button
Guide plate
Lower
tray
