14-47
[17] Front & Back Density Setting
Use this function to make fine adjustments to the copy density of the front and back
sides individually.
Procedure
1 Touch [17] Front & Back Density setting to display the Front & Back Density
Setting Screen.
2 Touch the desired adjustment key to make an adjustment for each side.
3 Touch OK to complete the setting and restore the Key Operator Mode Screen, or
touch CANCEL to restore the previous setting.

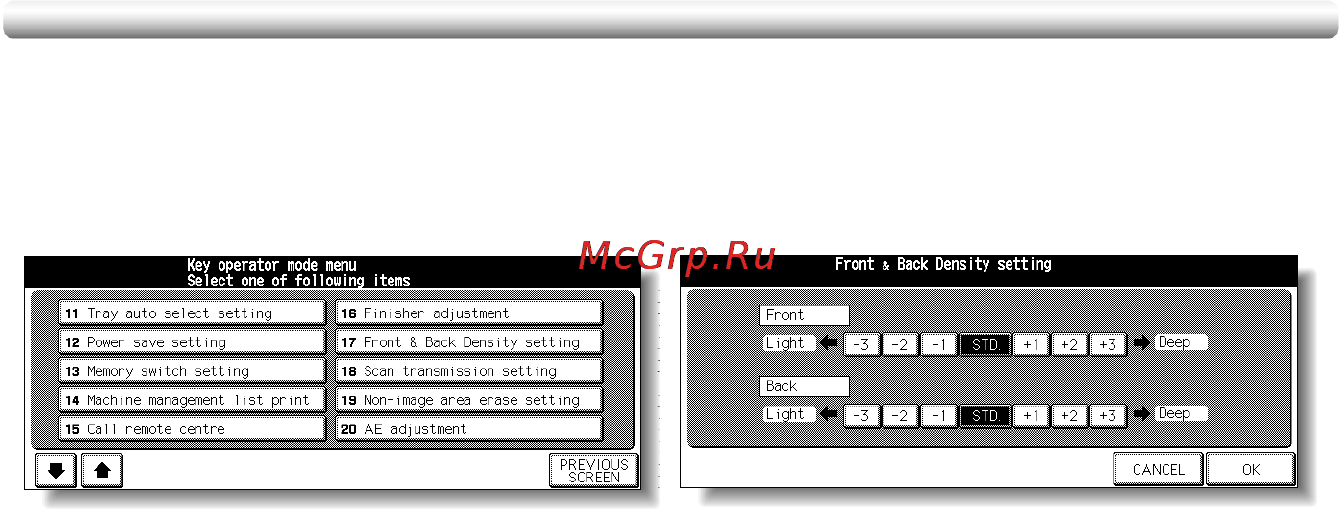

Front&Back Density Setting Screen
Key Operator Mode Screen
