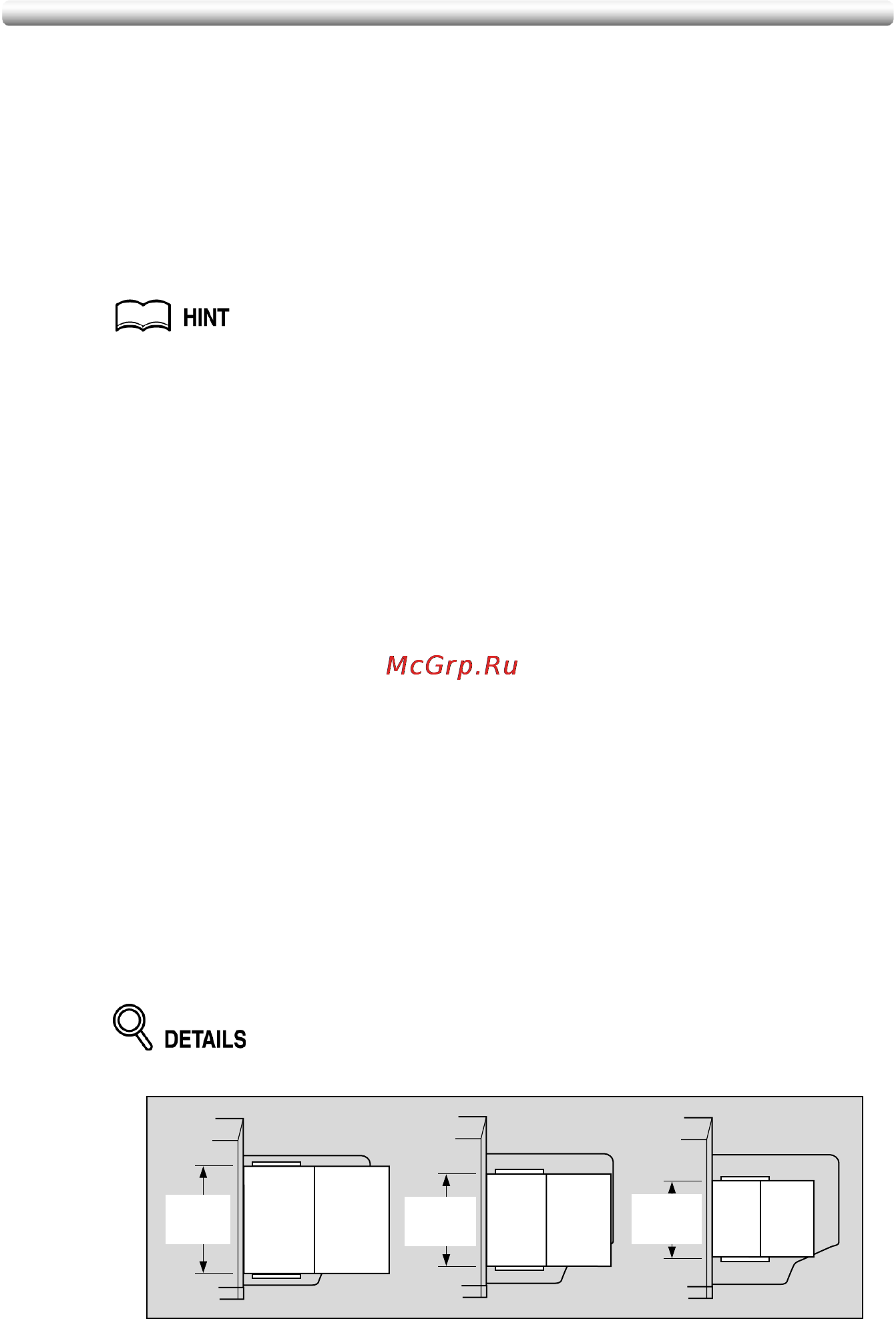

Original Information (continued)
12-10
RADF Originals
Following three modes are provided when using the document feeder (RADF) to
scan originals.
• Normal mode
• Mixed Original mode
• Z-Folded Original mode
Specifications for each mode are described as follows.
Detectable paper size can be changed from only A series to Inch series, AB
series, or AB series and Inch series mixed by Key Operator. See p. 14-37 to p.
14-42.
Normal mode
❒ Detectable original size: A3, B4, A4, A4R, B5, B5R, A5, A5R, 11”x17”,
8.5”x13”, 8.5”x11”
❒ Original weight: Simplex: 35 g/m
2
~ 200 g/m
2
Dulpex: 50 g/m
2
~ 200 g/m
2
* Use Thin mode for 35 g/m
2
~ 49 g/m
2
paper, or Thick mode for 129 g/m
2
~ 200 g/m
2
paper.
❒ Max. feeder capacity: 100 sheets (80 g/m
2
paper)
❒ Curling tolerance: 10 mm or less
❒ Original placement: Face up
Mixed Original mode
Use Mixed Original mode to copy mixed size originals. See p. 9-6 for details.
❒ Original size: Three types of size combination are determined by the RADF
guide width.
A3, B4, A4, A4R, B5, and A5 mixed
B4, A4R, B5, B5R, and A5 mixed
B5R and A5R mixed
❒ Original weight: Simplex: 35g/m
2
~ 200g/m
2
Dulpex: 50g/m
2
~ 200g/m
2
* Use Thin mode for 35 g/m
2
~ 49 g/m
2
paper, or Thick mode for 129 g/m
2
~ 200 g/m
2
paper.
❒ Max. feeder capacity: 100 sheets (80 g/m
2
paper)
❒ Curling tolerance: 10 mm or less
❒ Original placement: Face up (see p. 3-6 for details.)
See below for the guide width of each combination.
A3A4
B4B5 A4
A5
Guide
width
Guide
width
Guide
width
