4-4
Checking Feature Selections / Proof Copying (Check Mode)
Use the Check mode to confirm copying selections before starting print operation.
In this mode, use Proof copy to produce a sample of the copied set before making
multiple copies. This is a convenient and cost effective way of viewing the results of
the following copying selections.
• Copying conditions using Store mode • Booklet
• Sheet/Cover insertion • Image insert
• Chapter • Dual Page
• Combination • Program job
Specifications for Check Mode and Proof Copy
❒ Proof copy is available when using RADF, or Platen store mode for multiple
originals.
❒ Proof copy is unavailable with Group output mode.
1. Select the desired copy conditions and enter the desired
print quantity.
When starting a new copying job, be sure to close the RADF securely, then
press [AUTO RESET].
2. Position original(s).
See p. 3-4 to p. 3-9 for details on positioning originals.

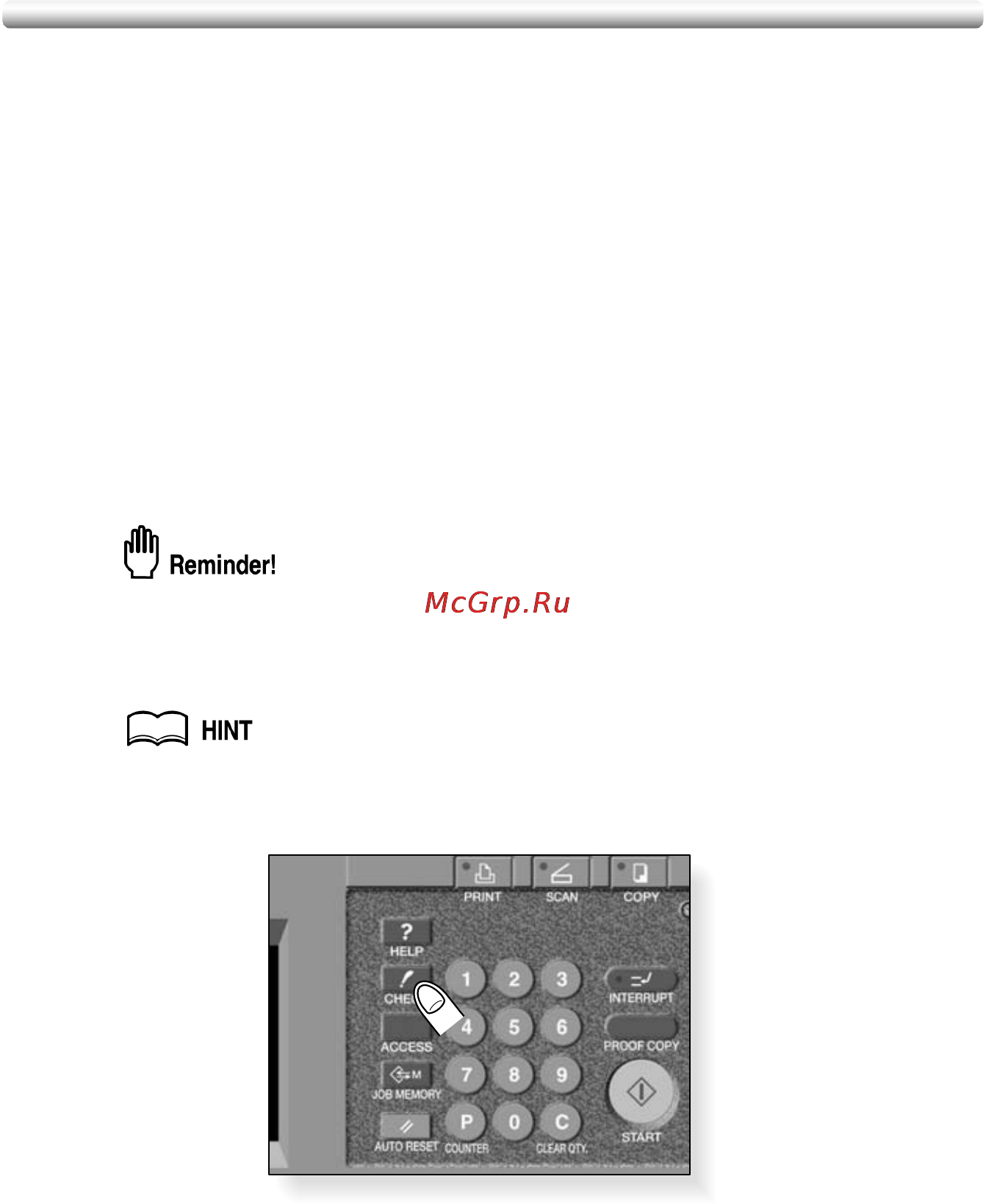

3. Press [CHECK] on the control panel.
