14-56
[24] Centring Adjustment
Use this mode to make various adjustments concerning the image centring function.
• Printer centring adjustment: adjusts the mis-centring of images vertical to paper
feed direction.
• Scanner centring adjustment: adjusts the centring when scanning the platen
original.
• RADF centring adjustment: adjusts the centring when scanning the RADF original.
Procedure
1
Touch
[24] Centring adjustment
on the Key Operator Mode Screen to display the
Centring Adjustment Menu Screen.
2 Touch the desired menu key to display the adjustment screen for each function.
3 Make fine adjustment on the screen.
Touch +<->- to select “+” or “-” as desired, enter the value, then touch SET.
Check the entered value on the left side of the second line in the message area.
If provided, touch
NEXT ADJUSTMENT
or
PREVIOUS ADJUSTMENT
to move to
the next or previous adjustment item.
Touch
PREVIOUS SCREEN
to restore the Centring Adjustment Menu Screen.
4 Touch PREVIOUS SCREEN to restore the Key Operator Mode Screen.

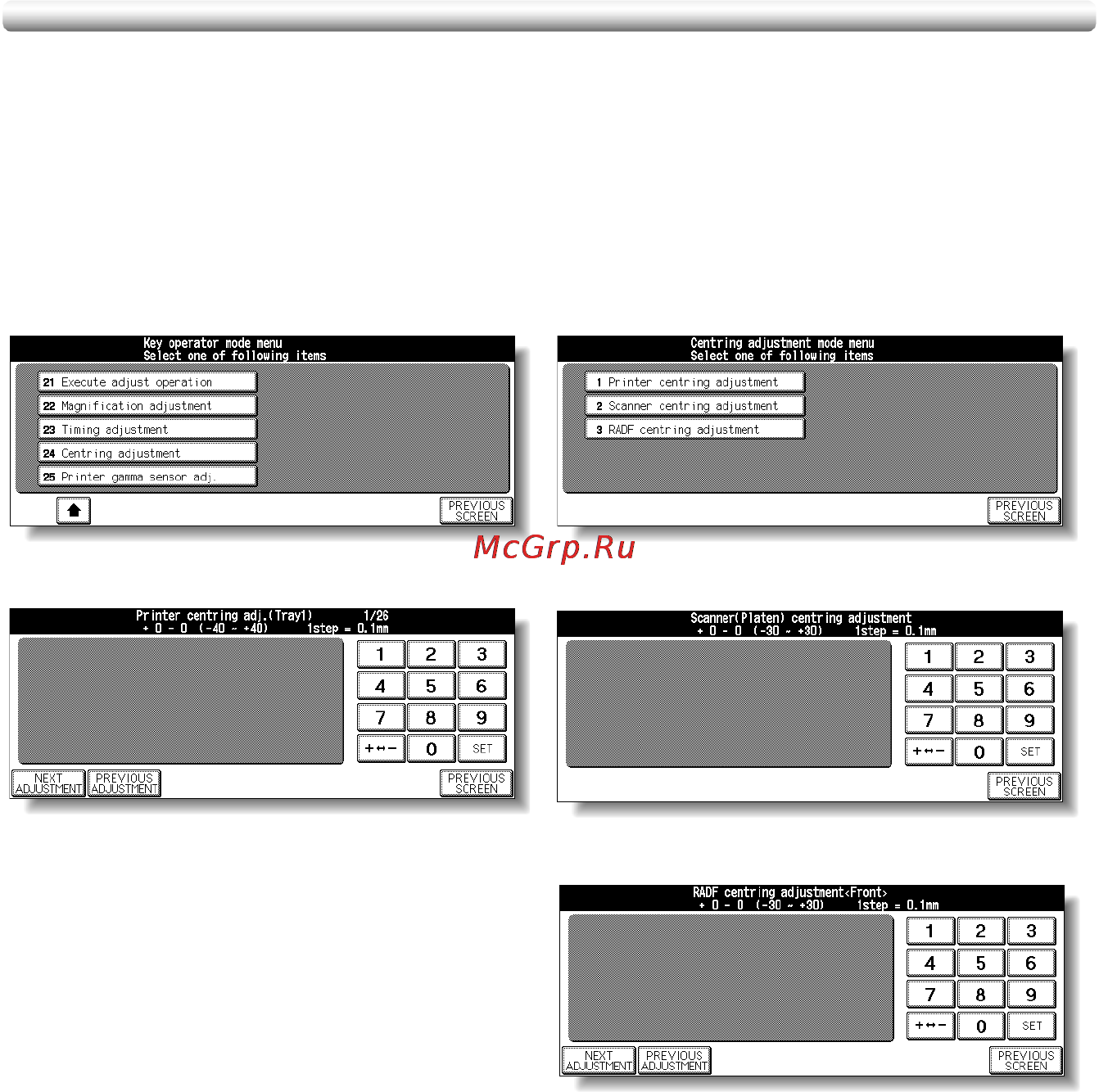

Key Operator Mode Screen
Centring Adjustment Menu Screen
Scanner (Platen) Centring Adjustment Screen
Printer Centring Adjustment Screen
RADF Centring Adjustment Screen
