Konica Minolta CF5001 [345/432] Adding toner continued
![Konica Minolta CF5001 [345/432] Adding toner continued](/views2/1122213/page345/bg159.png)
Adding Toner (continued)
13-3

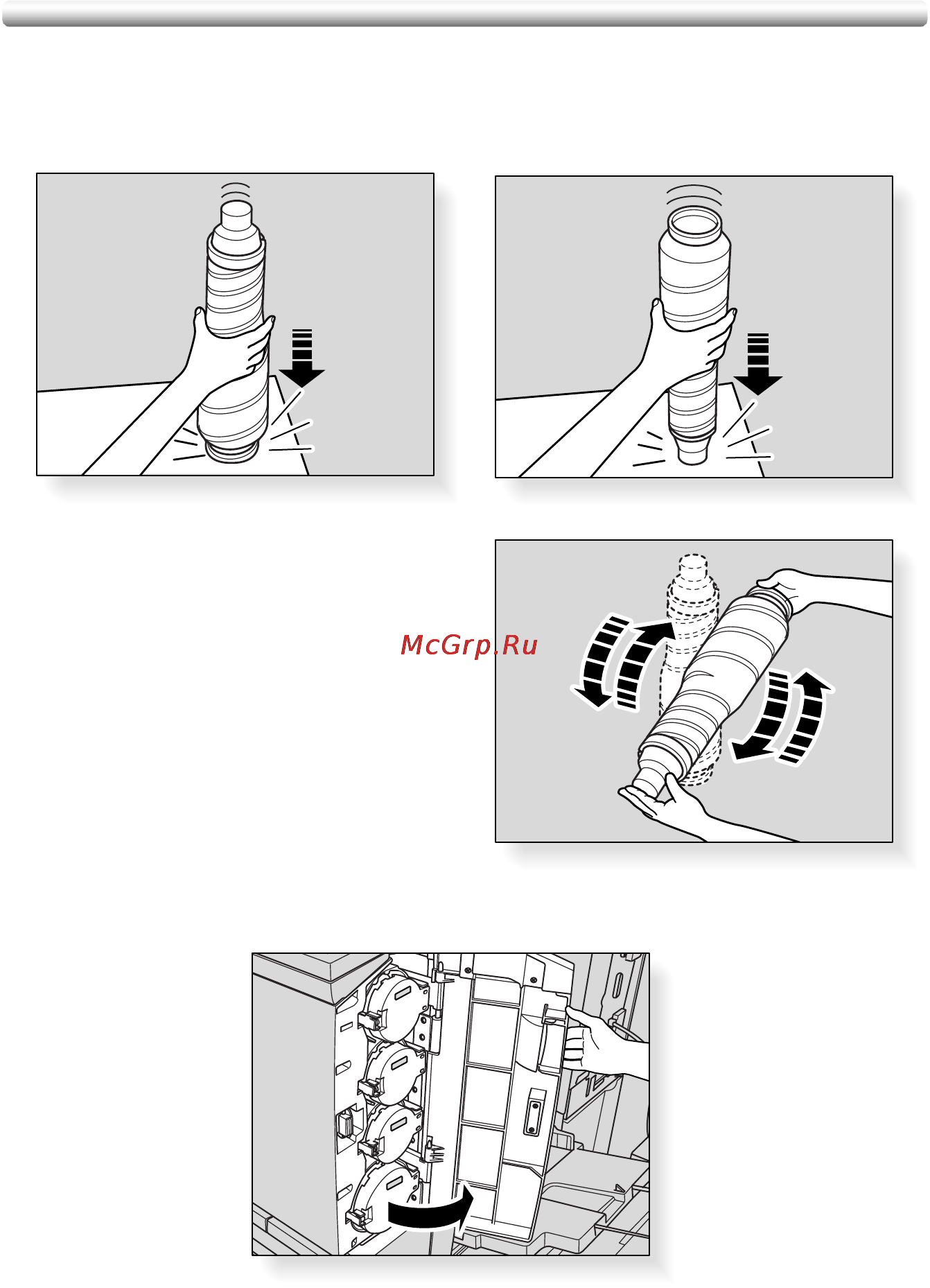

1. Loosen toner by tapping both top and bottom of the new
toner bottle on a solid surface at least five times, then shake
the bottle at least five times.
2. Open the toner access door.
5~6cm
5~6cm
