10-27

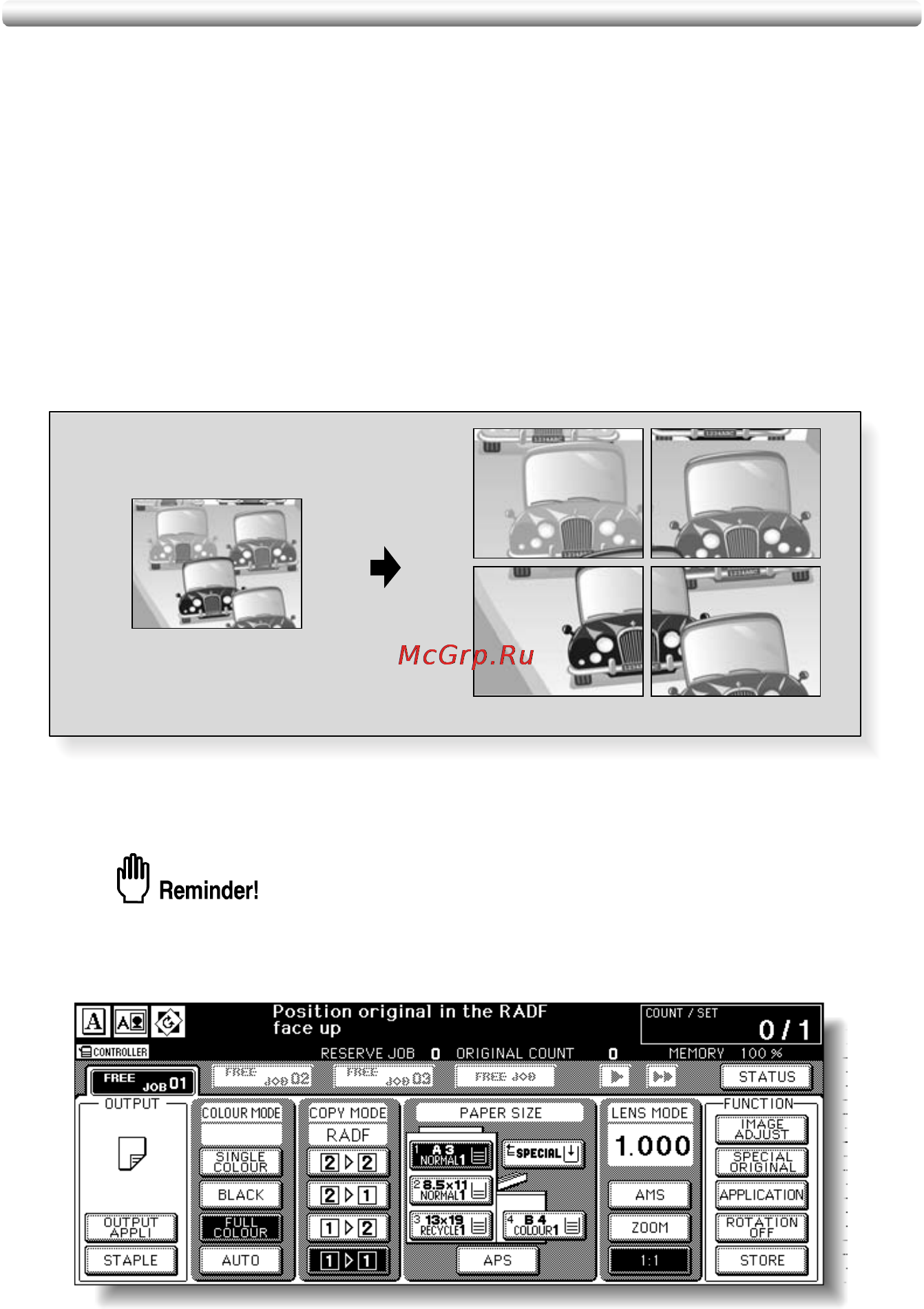

Dividing an Image for Enlarged Copy (Multi-Page Enlargement)
Use this function to make an enlarged copy, made up of several copied pages
divided and enlarged from an original image.
Specifications for Multi-Page Enlargement
❒ Use the platen glass only.
❒ Use APS, or select the desired paper size on the Basic Screen. If APS is used,
the largest paper size will be selected automatically.
❒ The output size can be selected (standard size) or determined when a
magnification ratio is entered on the screen.
❒ Incompatible Conditions: Using RADF, 1a2, 2a2, 2a1, APS, AMS, 1:1, Staple,
Group, Rotation, Rotation Sort, Rotation Group, Fold, Stitch&Fold, Three-Fold,
Trimming, Cover Sheet Feeding, Mixed Original, Z-Folded Original, Non STD
Size (except FULL AREA), Sheet/Cover Insertion, Chapter, Combination,
Booklet, Image Insert, Dual Page, Program Job, Non-Image Area Erase,
Repeat, Frame/Fold Erasure, AUTO Layout, Image Shift, Stamp/Overlay
1. Position original FACE DOWN on the platen glass.
The machine will detect the original size.
When starting a new copying job, be sure to close the RADF securely, then
press [AUTO RESET].
2. Select the desired paper size on the Basic Screen.
Touch the desired tray key to highlight it.
If APS is selected (initial setting), the largest paper size loaded in a tray will
be selected automatically.
3. Touch APPLICATION on the Basic Screen.
Original
Mult-page enlargement
