L800/L801 Revision A

Disassembly/Reassembly Panel Assy/ Cover Open Sensor 33

Confidential

 Cover Open Sensor Removal

1. Remove the Panel Assy. (p.30)

2. From the back of the Open Sensor Holder, disengage the hook of the Cover

Open Sensor, and remove the Cover Open Sensor pulling its rib out of the

hole by rotating the sensor in the direction of the arrow.

3. Disconnect the connector from the Cover Open Sensor to remove the Cover

Open Sensor.

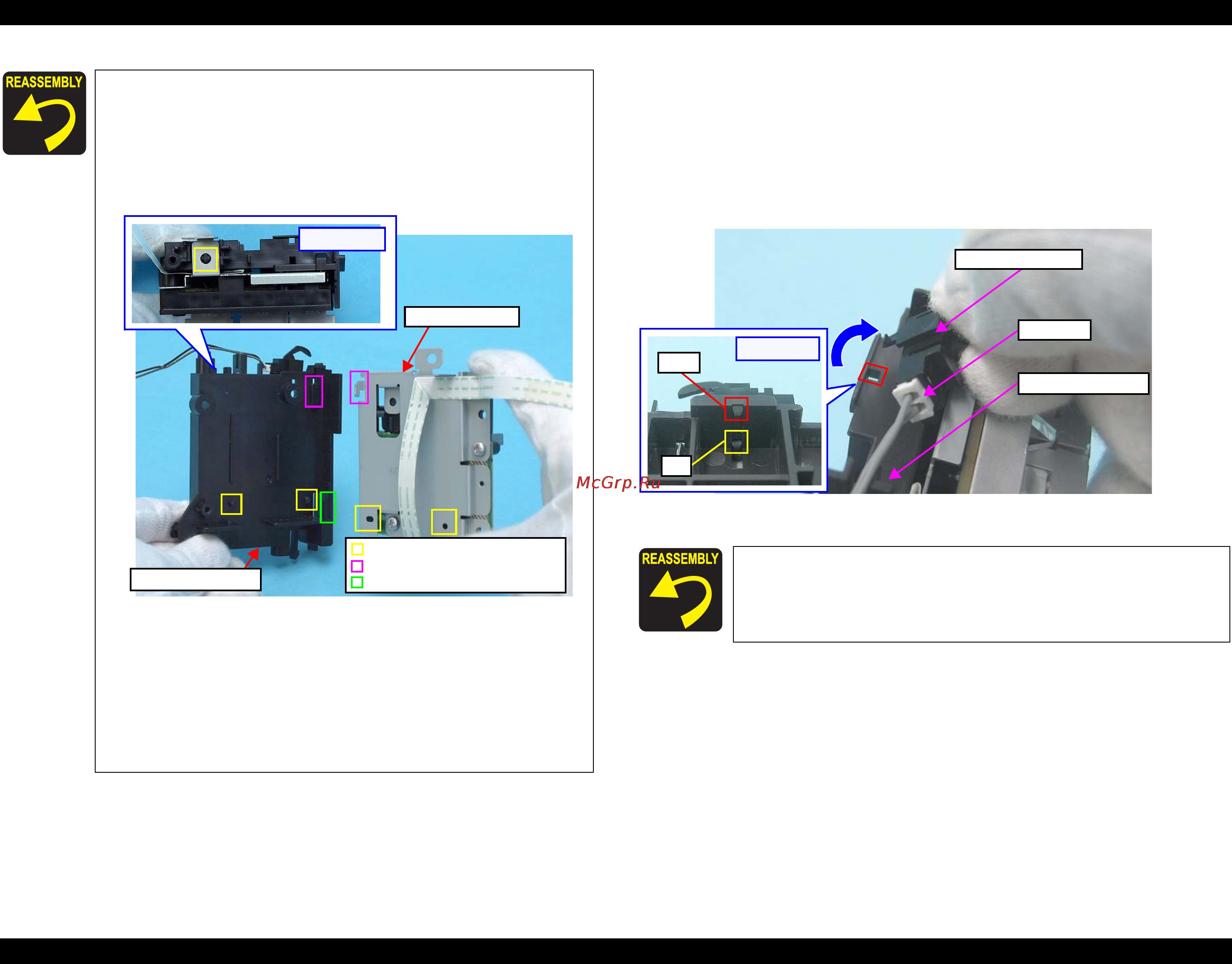

Figure 1-39. Removing the Cover Open Sensor

When installing the Panel Unit, be careful of the following:

 When installing the Panel Shield Plate to the Open Sensor

Holder, match the hook and guide pins with the positioning

holes shown in Fig.1-38 and insert the Panel Shield Plate into

the groove of the Open Sensor Holder to secure the Panel

Shield Plate.

Figure 1-38. Installing the Panel Unit

 Attach the Panel FFC with double-sided tape along with the

reference line shown in Fig.1-35 (p.32).

 When installing the Panel Board, match the guide pin with the

positioning hole shown in Fig.1-36.

 Install the PS button, Ink button, and Paper button as shown

in Fig.1-37.

[Upper Side]

Guide Pin and Positioning Hole

Hook and Positioning Hole

Groove

Open Sensor Holder

Panel Shield Plate

When installing the Cover Open Sensor, insert the rib shown in

Fig.1-39 into the hole of the Open Sensor Holder, and secure the

Cover Open Sensor with the hook.

Hook

Rib

[Back Side]

Open Sensor Holder

Connector

Cover Open Sensor
