Disassembly/Reassembly Front Paper Guide Assy 59
Confidential

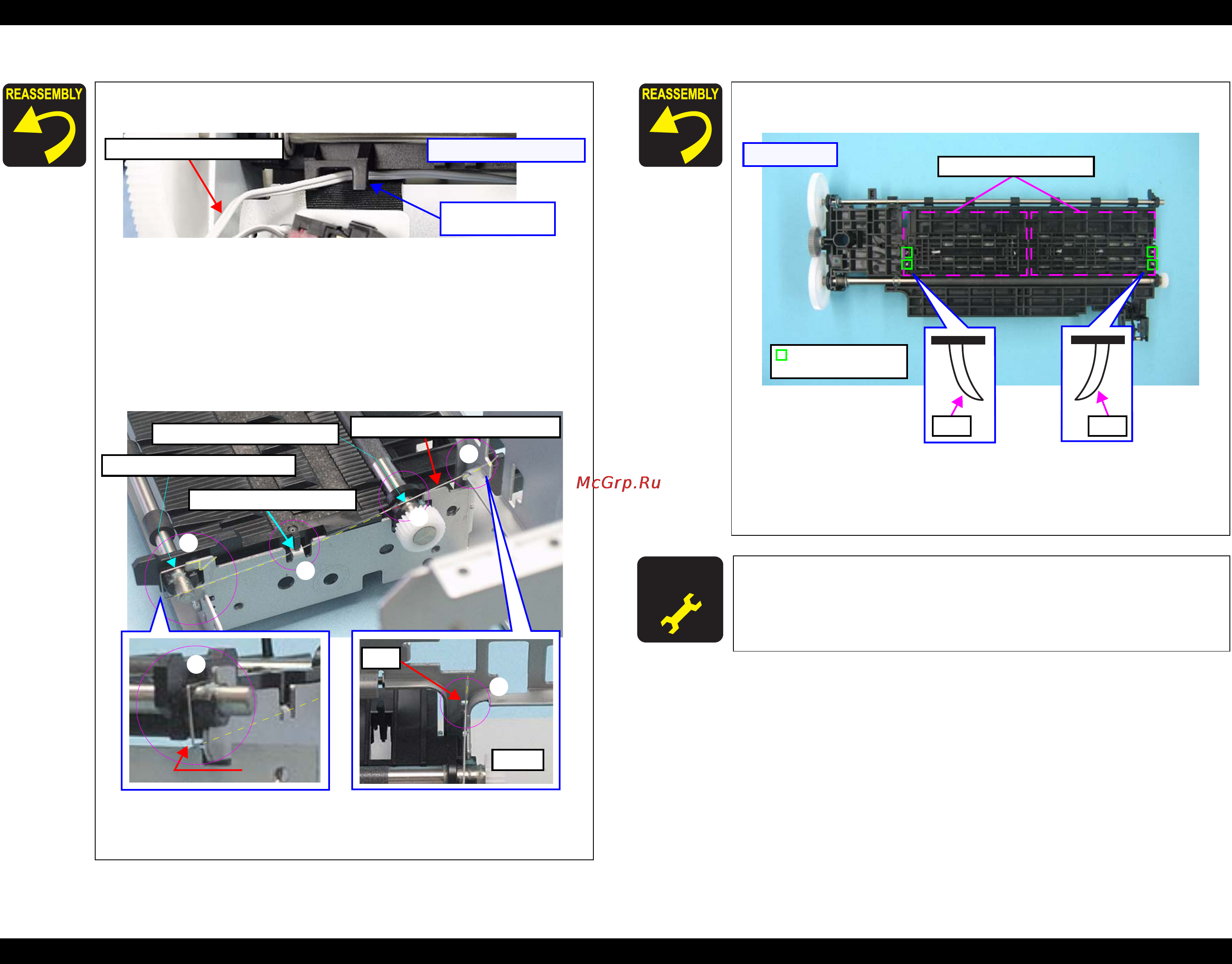

When installing the Front Paper Guide Assy, pull out the CDR
Tray Sensor cable as shown below.
Figure 1-112. Routing the CDR Tray Sensor Cable
Attach the long foot of the EJ Ground Spring as follows; (1)
put it through the gap under the portion contacts with the EJ
Roller, (2) let it contact with the Main Frame, (3) let it contact
with the PF Roller shaft, (4) put it through the hole on the
frame. When finished, make sure the spring properly contacts
with (1), (2), (3), and (4) points.
Figure 1-113. Attaching the EJ Ground Spring
Be careful not to deform the EJ Ground Spring.
[Left Front Bottom Side]
Pull out the cable
from here
CDR Tray Sensor Cable
1
2
Contacts with PF Roller Shaft
Long foot of EJ Ground Spring
Contacts with Main Frame
4
3
Contacts with EJ Roller shaft
4
Hole
Gap
1
Place the four tips of the Front Paper Guide Pad on the Waste
Ink Pad.
Figure 1-114. Installing Front Paper Guide Pad
When installing Parallelism Bushing L, match the positioning
hole with the guide pin shown in Fig.1-108 (p.57).
A D J U S T M E N T
R E Q U I R E D
Whenever the Front Paper Guide Assy is removed or replaced, the
required adjustments must be carried out.
Refer to "2.1.2 Required Adjustments" (p.74)
[Bottom Side]
Tip of Front Paper
Guide Pad
Waste Ink Pad Position
Tip
Tip
