L800/L801 Revision A
Disassembly/Reassembly Printhead 39
Confidential

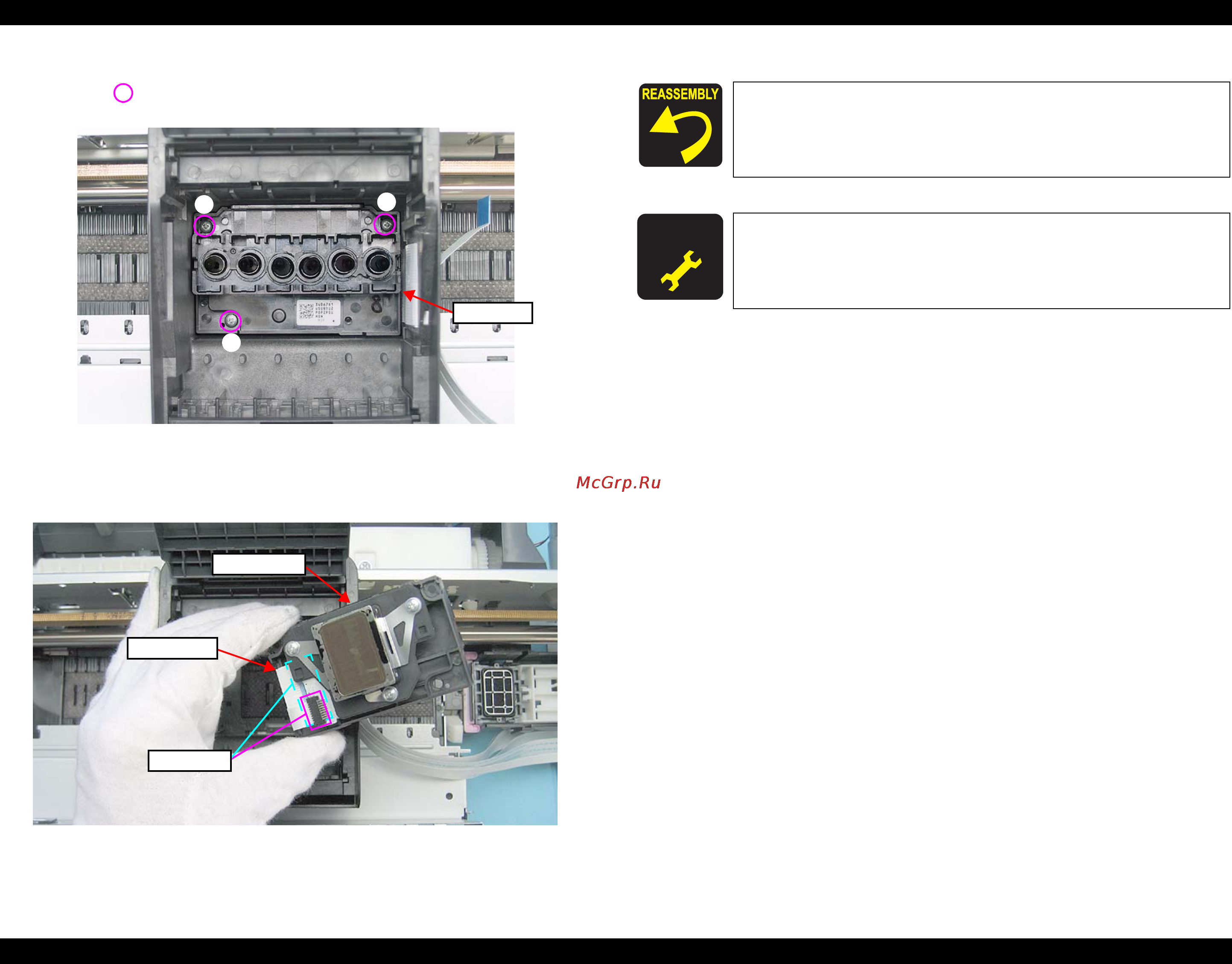

7. Remove the three screws and remove the Printhead.
• Screw : C.B.P. M2.6x8 (tightening torque: 3-5 kgf.cm)
(The numbers shown in the figure indicate the order of tightening the screws.)
Figure 1-53. Removing the Printhead (1)
8. Remove the two Head FFCs from the connectors on the back, and remove the
Printhead.
Figure 1-54. Removing the Printhead (2)
Printhead
1
2
3
Connectors
Printhead
Head FFC
Tighten the screws in the order given in Fig.1-53.
A D J U S T M E N T
R E Q U I R E D
Whenever the Printhead is removed/replaced, the required
adjustments must be carried out.
• Refer to "2.1.2 Required Adjustments" (p.74)
