Epson L800 [50/105] Cr motor

L800/L801 Revision A

Disassembly/Reassembly CR Motor 50

Confidential

1.5.12 CR Motor

 Removal procedure

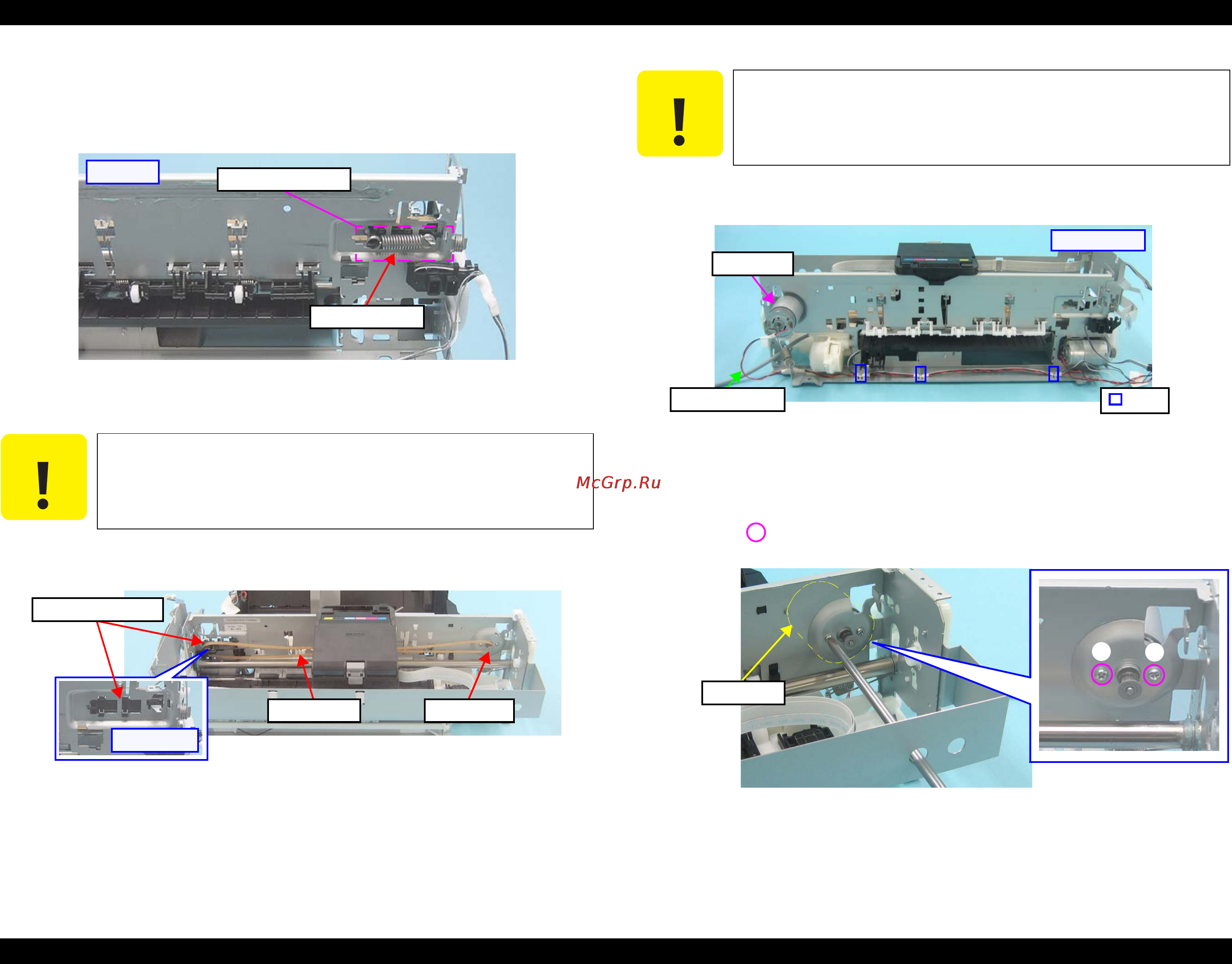

1. Remove the Extension Spring of the Driven Pulley Assy from the rear side.

Figure 1-84. Removing the Extension Spring

2. Remove the Driven Pulley Assy and remove the Timing Belt from the Pinion

Gear of the CR Motor.

Figure 1-85. Removing the CR Motor (1)

3. Release the connector cables from the three hooks, then peel off the three

acetate tapes to release the CR Motor cable.

Figure 1-86. Removing the CR Motor (2)

4. Insert a Phillips screwdriver (with a shaft of 13cm or longer is recommended)

through the hole of the Front Frame, remove the two screws, and remove the

CR Motor.

• Screw : C.P. M3x4 (tightening torque: 3-5 kgf.cm)

(The numbers shown in the figure indicate the order of tightening the screws.)

Figure 1-87. Removing the CR Motor (3)

C A U T I O N

Take extra care not to contaminate the Timing Belt with grease.

The belt deteriorates faster if grease adheres to it.

Driven Pulley Assy

Extension Spring

[Rear Side]

Driven Pulley Assy

Pinion GearTiming Belt

C A U T I O N

When assembling or disassembling the CR Motor, be careful of the

three sharp hooks of the Main Frame shown in Fig.1-86.

: Hook

CR Motor

CR Motor Cable

[Rear Side]

CR Motor
